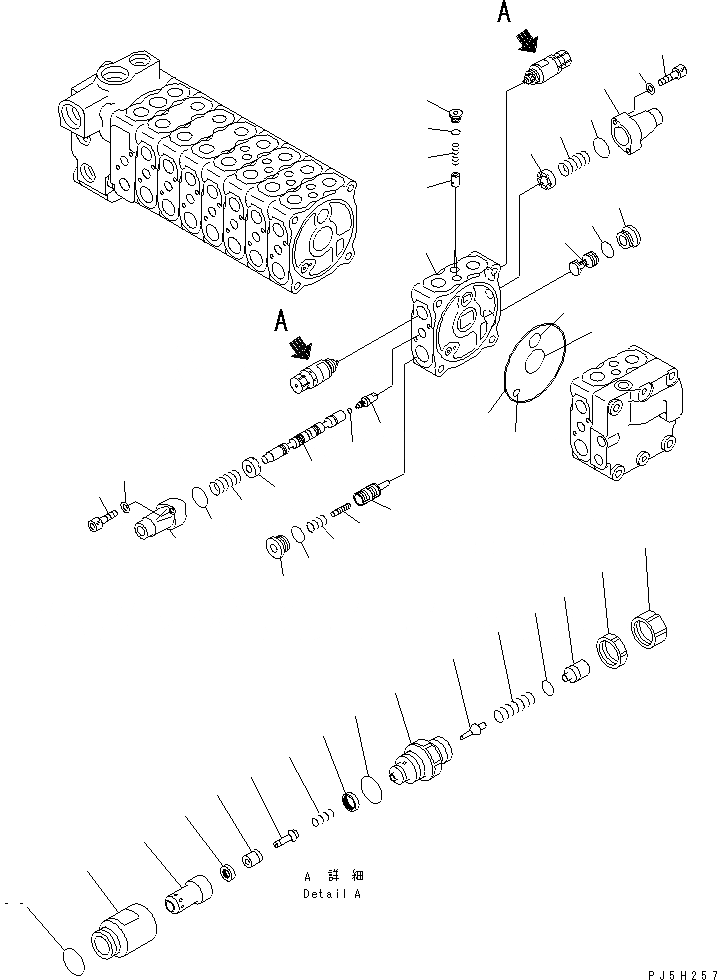

Запчасти Komatsu PC75US-3 ОСНОВН. КЛАПАН (-КЛАПАН) (9/9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-2A-10400

VALVE ASS'Y

|1

723-21-03200

VALVE SUB ASS'Y

1

BLOCK

2

SPOOL

3

PLUG

4

O-RING

5

723-26-15110

CASE

6

709-26-11450

SPRING

7

723-26-15120

RETAINER

8

575-41-17420

O-RING

9

01252-60630

BOLT

10

01641-20608

WASHER

11

VALVE

12

VALVE

13

723-26-51190

PISTON

14

723-26-14140

SPRING

15

723-26-15230

PLUG

16

07002-12434

O-RING

17

07000-13035

O-RING

18

07000-12020

O-RING

19

07000-02120

O-RING

20

07000-12010

O-RING

21

VALVE

22

723-26-15220

PLUG

23

723-26-14150

SPRING

24

07002-11223

O-RING

|25

709-30-69100

VALVE ASS'Y,SUCTION AND SAFETY

25

PISTON

26

SLEEVE

27

POPPET

28

SEAL

29

NUT

30

NUT

31

SPACER

32

PLUG

33

SEAL

34

SLEEVE

35

SPRING

36

POPPET

37

SPRING

38

07002-12034

O-RING

39

O-RING
