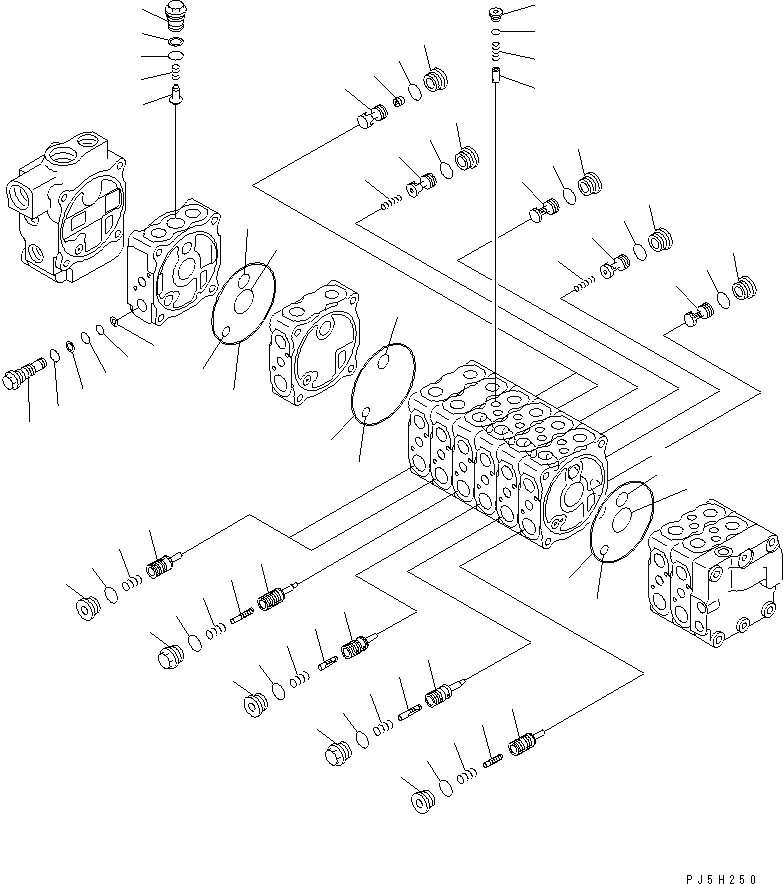

Запчасти Komatsu PC75US-3 ОСНОВН. КЛАПАН (-КЛАПАН) (/9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-2A-10400

VALVE ASS'Y

|1

BODY GROUP

1

VALVE

2

ORIFICE

3

VALVE

4

VALVE

5

VALVE

6

VALVE

7

723-26-50100

VALVE SUB ASS'Y

8

VALVE

9

723-26-51190

PISTON

10

VALVE

11

723-26-51290

PISTON

12

VALVE

13

723-26-51250

PISTON

14

VALVE

15

723-26-51150

PISTON

16

723-26-14220

SPRING

17

723-26-14240

SPRING

18

723-26-14140

SPRING

19

723-26-15230

PLUG

20

723-26-15370

PLUG

21

07002-12434

O-RING

22

07000-13035

O-RING

23

07000-12020

O-RING

24

07000-02120

O-RING

25

07000-12010

O-RING

26

07000-12012

O-RING

27

VALVE

28

723-26-15220

PLUG

29

723-26-14150

SPRING

30

07002-11223

O-RING

31

723-26-15580

PLUG

32

709-25-11361

SPRING

33

709-25-11650

VALVE,CHECK

34

07000-12016

O-RING

35

723-60-22230

RING,BACK-UP

36

723-26-15490

SLEEVE

37

07002-11823

O-RING

38

07000-12012

O-RING

39

07001-02012

RING,BACK-UP

40

07000-12010

O-RING

41

07001-02010

RING
