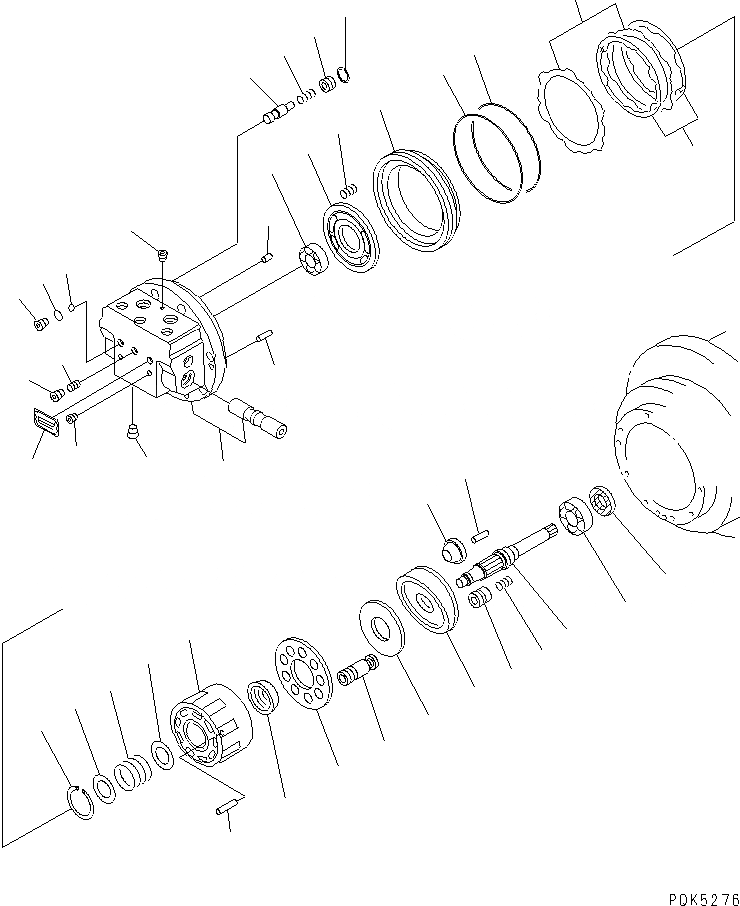

Запчасти Komatsu PC75US-3 МОТОР ХОДА (/) (ГИДРАВЛ МОТОР) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

201-60-73101

TRAVEL MOTOR ASS'Y

|1

TZ979B200000FG

MOTOR ASS'Y

1

TZ979B210100-G

FLANGE KIT,REAR

2

TZGDL1-16-S

PLUG

3

TZGM1-8

PLUG

4

TZ121F2070-00

ORIFICE

5

TZ976B2079-00

FILTER

6

TZ512B2021-00

PLUG

7

07000-12011

O-RING (KIT)

8

TZ850A0006-00

PLATE¤ NAME

9

04260-00793

BALL

10

TZ920B2004-00

BLOCK,CYLINDER

11

TZ810B2105-00

PISTON KIT (9 PIECES)

12

TZ844B200300-F

PLATE,SWASH

13

TZ970B2032-00

PLATE,THRUST

14

TZ920B2007-00

PLATE,RETAINER

15

TZ810B2008-00

BOWL,THRUST

16

TZJB150625-238

PIN

17

TZ810B2014-00

SPRING

18

TZ880A2010-00

WASHER

19

TZTH-R-42

RING,SNAP

20

TZ800A2016-00

PLATE

21

TZ800A2015-00

PLATE

22

TZ266B2012-00

PISTON

23

TZ266B2039-00

O-RING (KIT)

24

TZ266B2035-00

O-RING (KIT)

25

TZ860A2009-01

PLATE,TIMING

26

06000-06203

BEARING

27

TZ970B2013-00

SPRING

28

TZ910B2002-00

SHAFT

29

TZ880A2029-00

BEARING

30

TZ15Z-22-42-10

SEAL,OIL (KIT)

31

TZ844B2070-01

PISTON ASS'Y

32

TZ844B2085-00

SPRING

33

TZ263B2076-02

PIVOT

34

TZ263B2077-01

PIN

35

TZJB1354-4-10

PIN

36

TZ200B2073-00

VALVE

37

TZ300B2043-01

SPRING

38

TZ300B2039-00

STOPPER

39

TZ300B2042-00

RING

KIT

TZ971B9010-00

SEAL KIT,TRAVEL MOTOR
