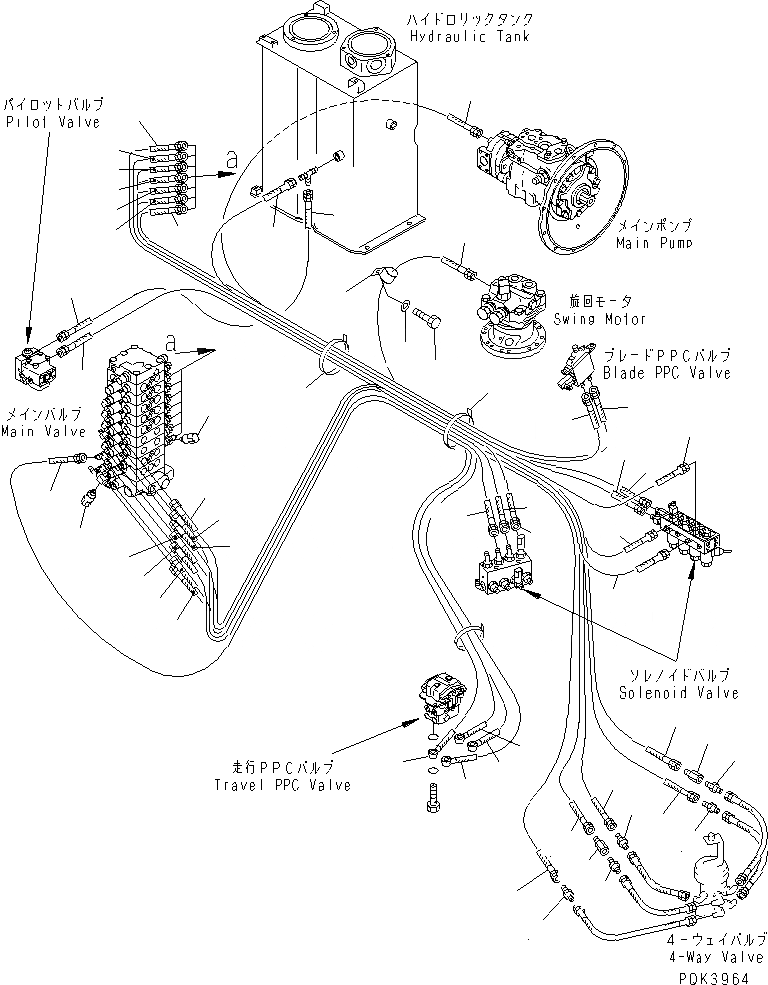

Запчасти Komatsu PC75UD-3 P.P.C. ОСНОВН. ЛИНИЯ (/) (MONO СТРЕЛА) (MULTIPLE PATTERN УПРАВЛ-Е) ГИДРАВЛИКА

1

21W-62-32490

HOSE¤ 1700MM,BROWN

2

21W-62-32650

HOSE¤ 1900MM,GREEN-WHITE

3

21W-62-32650

HOSE¤ 1900MM,YELLOW

4

21W-62-32660

HOSE¤ 2000MM,RED

5

21W-62-32660

HOSE¤ 2000MM,BLUE

6

21W-62-32660

HOSE¤ 2000MM,YELLOW-BLUE

7

20U-62-22180

NIPPLE

8

201-62-64680

NIPPLE

9

21W-62-31450

HOSE¤ 1600MM,YELLOW-RED

10

21W-62-32640

HOSE¤ 1800MM,GREEN

11

21W-62-32650

HOSE¤ 1900MM,WHITE

12

21W-62-32670

HOSE¤ 2200MM,BLUE

13

21W-62-32670

HOSE¤ 2200MM,RED-BLACK

14

21W-62-32670

HOSE¤ 2200MM,BLACK

15

21W-62-32690

HOSE¤ 2900MM,BLUE-WHITE

16

20S-62-83120

HOSE¤ 1100MM,BLACK-GREEN

17

20U-62-22180

NIPPLE

18

201-62-64680

NIPPLE

19

206-06-61130

SWITCH

|19

20Y-06-21710

SWITCH

20

21W-62-32990

HOSE¤ 1400MM,BLACK-BLUE

21

21W-62-32210

HOSE¤ 1500MM,GREEN-RED

22

21W-62-32960

HOSE¤ 1900MM,ORANGE-YELLOW

23

21W-62-32960

HOSE¤ 1900MM,GREEN-YELLOW

24

21W-62-32960

HOSE¤ 1900MM,BROWN-YELLOW

25

21W-62-33110

HOSE¤ 1800MM,BLACK-YELLOW

26

08034-00519

BAND

27

08036-01414

CLIP

28

01010-81020

BOLT

29

01643-31032

WASHER
