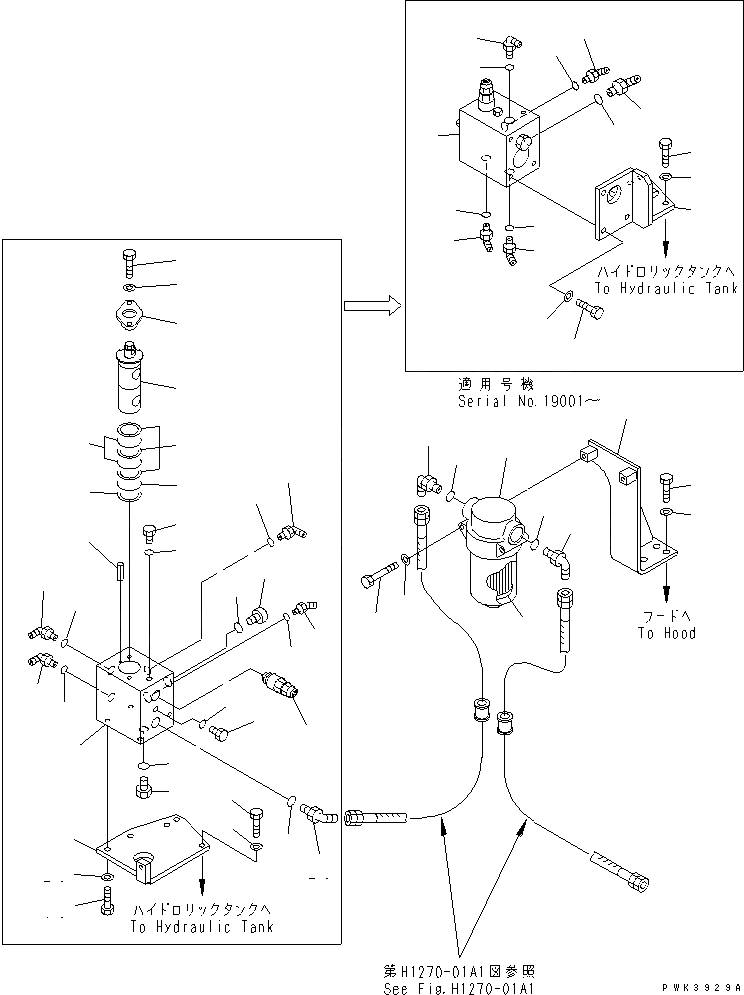

Запчасти Komatsu PC75UD-3 НАВЕСНОЕ ОБОРУД-Е (MODE CHANGE КЛАПАН И ФИЛЬТР.) (НАВЕСН. ОБОРУД.) ГИДРАВЛИКА

|1

21W-973-3300

VALVE ASS'Y

1

21W-973-3310

BLOCK

2

203-62-65122

ROTOR

3

20Y-970-3350

FLANGE

4

01010-81025

BOLT

5

01643-31032

WASHER

6

04025-00412

PIN,SPRING

7

07000-13042

O-RING

8

07000-13048

O-RING

9

07001-03042

RING,BACK-UP

10

07001-03048

RING,BACK-UP

11

07002-11223

O-RING

12

07002-12034

O-RING

13

07002-12434

O-RING

14

07040-11209

PLUG

15

07040-12012

PLUG

16

07040-12414

PLUG

17

709-70-74700

VALVE ASS'Y,SAFETY

18

21W-973-3750

BRACKET

|18

21W-973-3320

BRACKET

19

01010-81030

BOLT

20

01643-31032

WASHER

21

07235-10422

ELBOW

22

07002-12034

O-RING

23

07236-10628

ELBOW

24

07002-12434

O-RING

25

07236-10422

ELBOW

26

07002-12034

O-RING

27

07236-10628

ELBOW

28

07002-12434

O-RING

29

21W-973-3362

BRACKET

|29

21W-973-3361

BRACKET

|29

21W-973-3360

BRACKET

30

01010-81230

BOLT

31

01643-31232

WASHER

32

201-973-7270

FILTER ASS'Y

33

201-973-7480

ELEMENT ASS'Y

34

01010-81095

BOLT

35

01643-31032

WASHER

36

113-62-21240

ELBOW

37

07002-13334

O-RING
