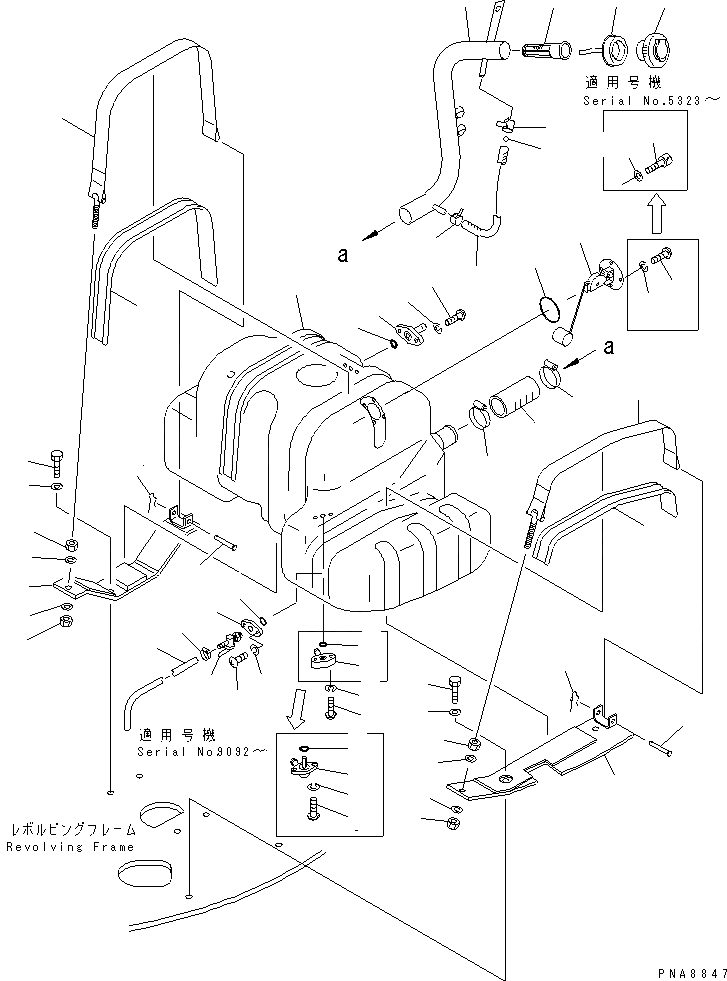

Запчасти Komatsu PC75UD-2E ТОПЛИВН. БАК. (БАК) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

20U-04-21111

TANK

2

21Y-04-11381

FLANGE ASS'Y

|2

21Y-04-11380

FLANGE ASS'Y

|2

21W-04-21121

FLANGE

3

01220-40616

SCREW

|3

01220-40630

SCREW

4

01602-20619

WASHER,SPRING

5

07000-02015

O-RING

6

20U-04-21150

FLANGE

7

01220-40620

SCREW

8

01602-20619

WASHER,SPRING

9

07000-02015

O-RING

10

20U-04-21160

FLANGE

11

20T-04-71120

VALVE

12

01220-40620

SCREW

13

01602-20619

WASHER,SPRING

14

07000-02015

O-RING

15

07270-00630

TUBE

16

07285-00068

CLIP

17

7861-92-5820

SENSOR,FUEL

18

01252-40612

BOLT

|18

01220-40616

SCREW

19

01602-20619

WASHER,SPRING

20

07000-03048

O-RING

21

20U-04-21181

BRACKET

22

20U-04-21250

BRACKET

23

01010-51230

BOLT

24

01643-31232

WASHER

25

20U-04-21221

BAND

26

20U-04-21210

CUSHION

27

20U-04-21280

BAND

28

20U-04-21290

CUSHION

29

20U-04-21240

PIN

30

04052-11038

PIN,SNAP

31

01580-11210

NUT

32

01643-31232

WASHER

33

21W-04-21112

TUBE

34

20M-04-71150

FILTER

35

20U-04-21360

CAP

36

07056-10045

STRAINER

37

20U-04-21131

HOSE

38

07281-00709

CLAMP

39

20U-04-21320

TUBE

40

07285-00155

CLIP

41

201-04-21160

BALL,FLOAT
