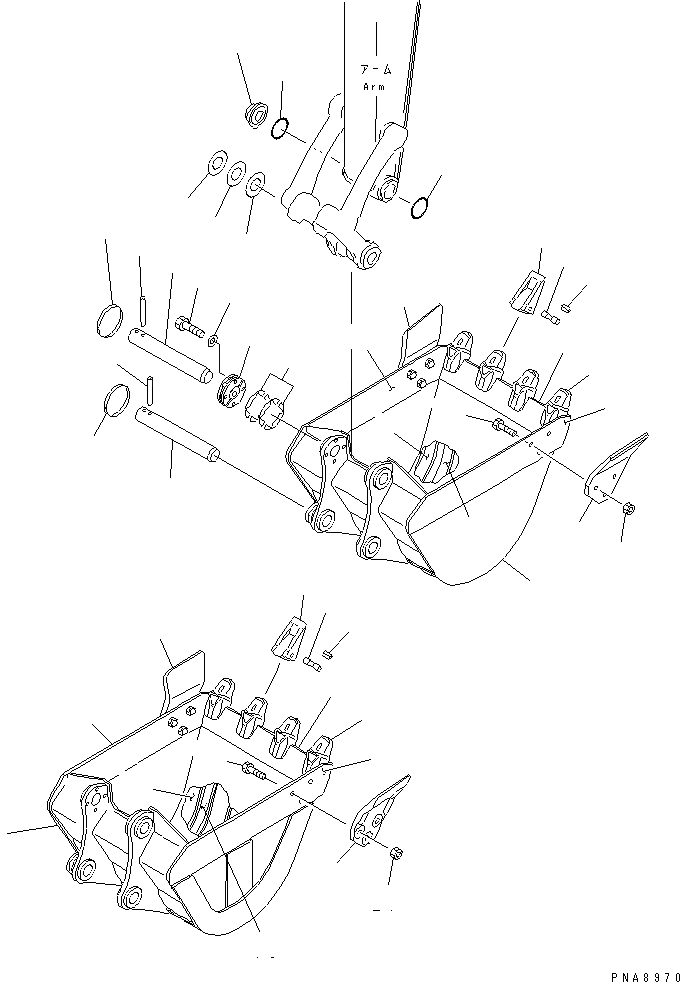

Запчасти Komatsu PC75UD-2 КОВШ (ГОРИЗОНТАЛЬН. ПАЛЕЦ¤ С РЕГУЛЯТОРОМ)(№7-) КАТАЛОГИ ЗЧ

|1

201-70-00890

BUCKET ASS'Y

|1

21W-70-00490

BUCKET ASS'Y

1

201-70-74510

BUCKET,(650MM)

|1

21W-70-24510

BUCKET,(650MM)

2

201-70-74C50

PLATE (WELDED)

3

21W-70-24C10

PLATE,L.H. (WELDED)

4

21W-70-24C20

PLATE,R.H. (WELDED)

5

20X-70-14151

ADAPTER (WELDED)

6

201-70-74161

PLATE (WELDED)

7

21W-70-24A30

PLATE (WELDED)

|8

201-70-00600

BUCKET ASS'Y

8

201-70-63310

BUCKET,(650MM)

9

20X-926-1620

LIP (WELDED)

10

20X-70-14151

ADAPTER (WELDED)

11

201-70-53140

PLATE,L.H. (WELDED)

12

201-70-53130

PLATE,R.H. (WELDED)

13

201-70-63220

PLATE (WELDED)

14

201-70-63230

PLATE (WELDED)

15

20X-70-14160

TOOTH

|16

20X-70-00100

PIN ASS'Y

16

PIN

17

SPRING

18

201-70-74171

SIDE CUTTER,L.H.

|18

20X-933-1110

SIDE CUTTER,L.H.

19

201-70-74181

SIDE CUTTER,R.H.

|19

20X-933-1120

SIDE CUTTER,R.H.

20

21W-70-21810

BOLT

21

01803-02228

NUT

22

201-70-74230

PIN

23

20X-70-24231

SPACER

24

201-70-74220

PLATE

25

20X-70-24250

PLATE¤ 0.5MM

26

175-30-16210

O-RING

27

01010-51260

BOLT

28

01643-31232

WASHER

29

201-70-74240

PIN

30

201-70-74260

PIN

31

201-70-74254

RING

32

201-70-74274

RING

33

135-70-13290

SPACER¤ 3.2MM

34

135-70-13251

SPACER¤ 1.6MM

35

201-70-22150

SPACER¤ 1.0MM
