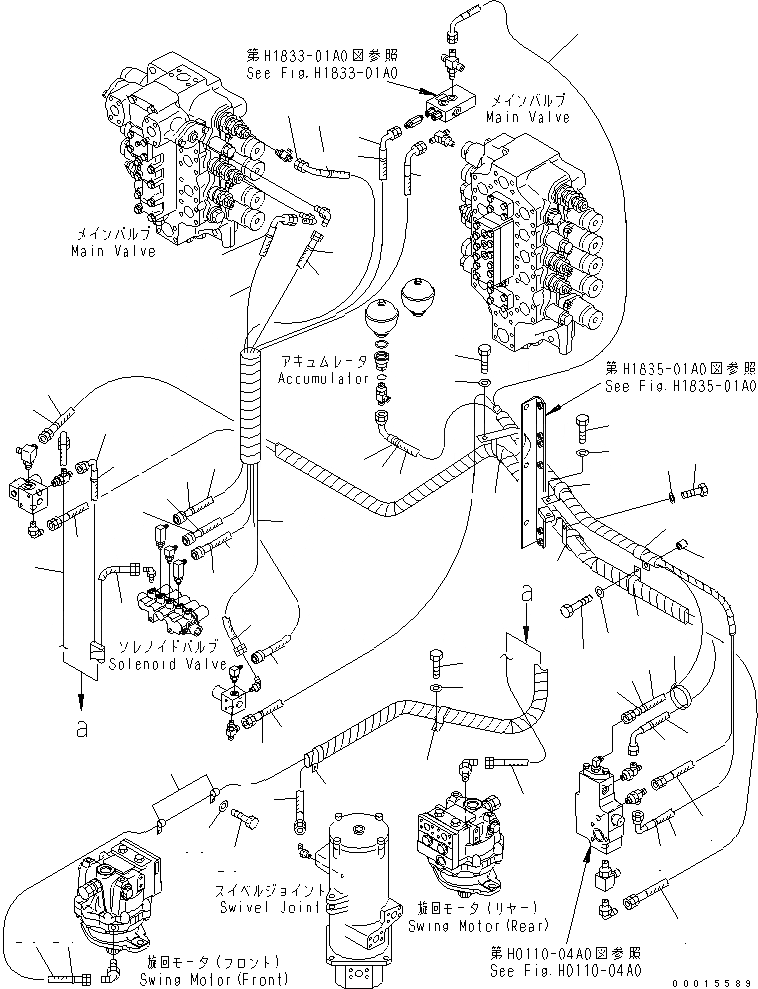

Запчасти Komatsu PC750SE-7K СОЛЕНОИДНЫЙ КЛАПАН ЛИНИЯ ГИДРАВЛИКА

1

02761-00324

HOSE

2

02761-00327

HOSE

3

02761-00331

HOSE

4

20Y-62-22790

BAND¤ RED

5

20Y-62-22830

BAND¤ WHITE

6

20Y-62-22850

BAND¤ GREEN

7

02762-00427

HOSE

8

02763-00427

HOSE

9

20Y-62-22790

BAND¤ RED

10

113-899-7950

CLIP

11

195-33-11220

SPACER

12

01010-81255

BOLT

13

01643-31232

WASHER

14

141-06-11220

CLIP

15

08034-00519

BAND

16

113-899-7950

CLIP

17

01010-81225

BOLT

18

01643-31232

WASHER

19

208-62-38370

CLIP

20

01010-81225

BOLT

21

01643-31232

WASHER

22

02760-00313

HOSE

23

02761-00327

HOSE

24

20Y-62-22790

BAND¤ RED

25

04435-51812

CLIP

26

01010-81225

BOLT

27

01643-31232

WASHER

28

04434-51512

CLIP

29

01010-81225

BOLT

30

01643-31232

WASHER

31

02761-00307

HOSE

32

02754-00311

HOSE

33

209-64-16430

HOSE¤ 900MM

34

209-64-16440

HOSE¤ 850MM

35

209-64-16450

HOSE¤ 1300MM

36

209-64-16460

HOSE¤ 1100MM

37

20Y-62-22810

BAND¤ YELLOW

38

20Y-62-22820

BAND¤ BLUE

39

20Y-62-22840

BAND¤ BLACK

40

20Y-62-22850

BAND¤ GREEN

41

207-62-33690

CLIP

42

01010-81230

BOLT

43

01643-31232

WASHER
