Запчасти Komatsu PC750SE-7 КАБИНА (ПЕРЕДН. ОКНА) (СДВИГ. ВВЕРХ ОКНА) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

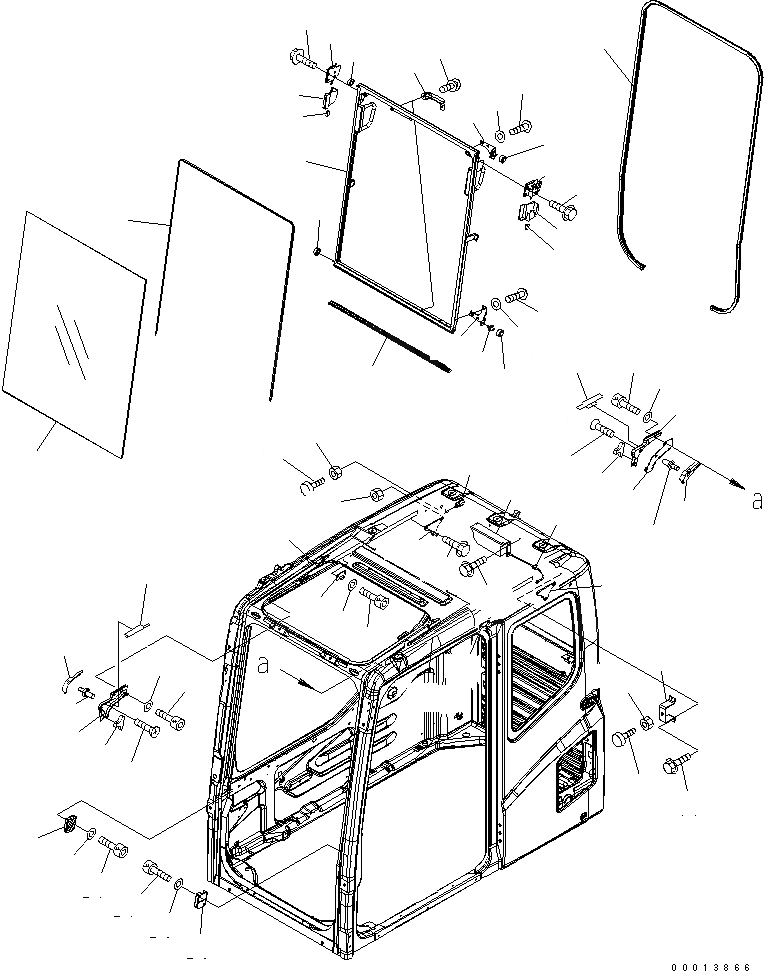

Схема запчастей Komatsu PC750SE-7 - КАБИНА (ПЕРЕДН. ОКНА) (СДВИГ. ВВЕРХ ОКНА) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
27
28
28
29
30
31
32
33
34
35
36
36
37
37
38
38
39
39
40
40
41
42
43
44
44
45
45
46
47
48
48
49
50
51
52
53
53

Артикул

Название

Примечание

Количество

|$13

209-54-00650

CAB ASS'Y

|$14

209-54-00660

CAB ASS'Y,(KOMTRAX)

|$15

209-54-00670

CAB ASS'Y,(WITHOUT RELEASE LEVER)

|$16

209-54-00680

CAB ASS'Y,(WITHOUT SPEAKER)

|$17

209-54-00690

CAB ASS'Y,(VANDALISM PROTECTION)

|$18

209-54-00710

CAB ASS'Y,(W/O SPEAKER, KOMTRAX)

|$19

209-54-00720

CAB ASS'Y,(VANDALISM, KOMTRAX)

|$20

209-54-00730

CAB ASS'Y,(VANDA, W/O SPEAKER, KOMTRAX)

|$21

209-54-00740

CAB ASS'Y,(W/O SPEAKER, RELEASE LEVER)

|$22

209-54-00750

CAB ASS'Y,(VANDALISM, W/O RELEASE LEVER)

|$23

209-54-00760

CAB ASS'Y,(VANDA, W/O SPEAKER, RE-LEVER)

|$24

209-54-00770

CAB ASS'Y,(VANDALISM, W/O SPEAKER)

|$25

209-54-00840

CAB ASS'Y

|$27

20Y-54-01132

WINDOW ASS'Y

1

FRAME, FRONT

1

FRAME, FRONT

2

20Y-54-51522

GLASS

3

20Y-54-51531

SEAL

4

20Y-54-51551

SEAL

5

22B-54-15411

LOCK ASS'Y

6

22B-54-15440

CASE

7

22B-54-15470

KNOB

8

22B-54-15421

LOCK ASS'Y

9

22B-54-15450

CASE

10

22B-54-15480

KNOB

11

01435-40812

BOLT

12

20Y-54-52621

ROLLER

13

20Y-54-52681

ROLLER

14

20Y-54-52691

PIN

15

20Y-54-14590

HANDLE

16

01023-10616

SCREW

17

20Y-54-52632

BRACKET

18

20Y-54-52643

BRACKET

18

20Y-54-52642

BRACKET

19

01245-00616

SCREW

20

01643-70623

WASHER

21

20Y-54-51670

STOPPER

22

20Y-54-51680

STOPPER

23

01252-80616

BOLT

24

01643-70623

WASHER

25

20Y-54-51633

BLOCK

26

20Y-54-52192

BLOCK

27

01252-80620

BOLT

28

01641-50608

WASHER

29

20Y-54-51652

BLOCK

30

20Y-54-52282

BLOCK

31

20Y-54-53570

PLATE

32

20Y-54-53531

COVER

33

20Y-54-51663

BLOCK

34

20Y-54-52940

PLATE

35

20Y-54-53541

COVER

36

22B-54-15621

STOPPER

37

01224-70612

SCREW

38

01252-80616

BOLT

39

01641-50608

WASHER

40

22B-54-15432

STRIKER

41

01435-40616

BOLT

42

21J-06-12440

SWITCH

43

01583-11811

NUT

44

20Y-54-11611

STOPPER

45

01580-11008

NUT

46

20Y-54-52491

PLATE

47

01435-40612

BOLT

48

20Y-54-51622

STRIKER

49

20Y-54-51541

TRIM

50

20Y-54-51591

SPRING ASS'Y

51

01435-00616

BOLT

52

20Y-54-51640

HOLDER

53

20Y-54-51420

SEAL

Выбрано товаров: 69
