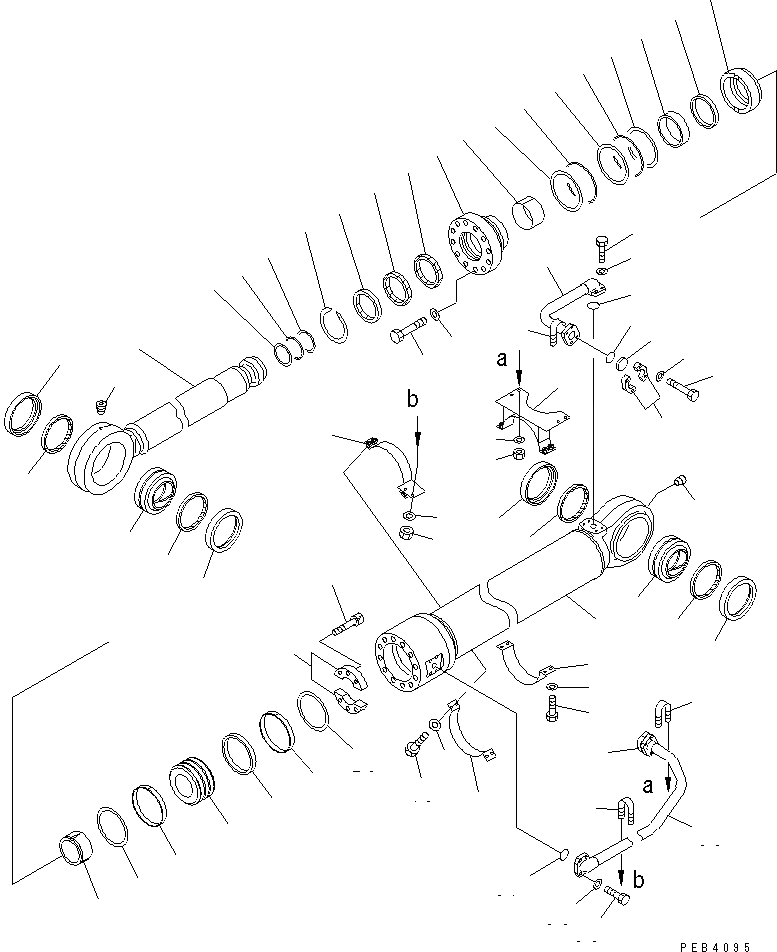

Запчасти Komatsu PC750SE-6K-01 ЦИЛИНДР КОВША (ДЛЯ .9M РУКОЯТЬ) (ДЛЯ ЭКСКАВАТ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

G1

209-63-X2341

BUCKET CYLINDER G.

|1

209-63-02341

CYLINDER ASS'Y

1

209-63-73341

CYLINDER

2

707-46-14010

BUSHING

3

21T-72-15860

BUSHING

4

21T-72-15870

SEAL,DUST (KIT)

5

07043-00108

PLUG

6

707-27-22660

HEAD,CYLINDER

7

707-51-16030

PACKING,ROD (KIT)

8

707-51-16630

RING,BUFFER (KIT)

9

707-52-91350

BUSHING

10

566-63-22241

SEAL,DUST (KIT)

11

07179-14180

RING

12

07000-15220

O-RING (KIT)

13

07001-05220

RING,BACK-UP (KIT)

14

07000-15220

O-RING (KIT)

15

07001-05220

RING,BACK-UP (KIT)

16

707-71-31780

COLLAR

17

707-71-31430

COLLAR

18

707-71-11750

RING

19

01011-83010

BOLT

20

01643-33080

WASHER

21

209-63-73320

ROD,PISTON

22

707-46-14010

BUSHING

23

21T-72-15860

BUSHING

24

21T-72-15870

SEAL,DUST (KIT)

25

07043-00108

PLUG

26

707-36-22300

PISTON

27

07000-15135

O-RING (KIT)

28

707-35-91440

RING,BACK-UP (KIT)

29

707-44-22920

RING

30

707-39-22820

RING,WEAR (KIT)

31

707-44-22280

RING,PISTON (KIT)

32

707-40-22870

SPACER

33

707-71-51750

PLUNGER

34

01252-61670

BOLT

35

209-63-73371

TUBE

36

209-63-73381

TUBE

37

07000-13048

O-RING (KIT)

38

01010-81450

BOLT

39

01643-31445

WASHER

40

07000-13038

O-RING

41

07378-11210

HEAD

42

07371-51260

FLANGE

43

01010-81245

BOLT

44

01643-31232

WASHER

45

707-88-21070

BAND

46

209-62-22090

BRACKET

47

209-63-73391

BRACKET

48

01010-81240

BOLT

49

01643-31232

WASHER

50

07283-24346

CLIP

51

01599-01011

NUT

52

01643-31032

WASHER

K

707-99-78680

SERVICE KIT,BUCKET CYLINDER
