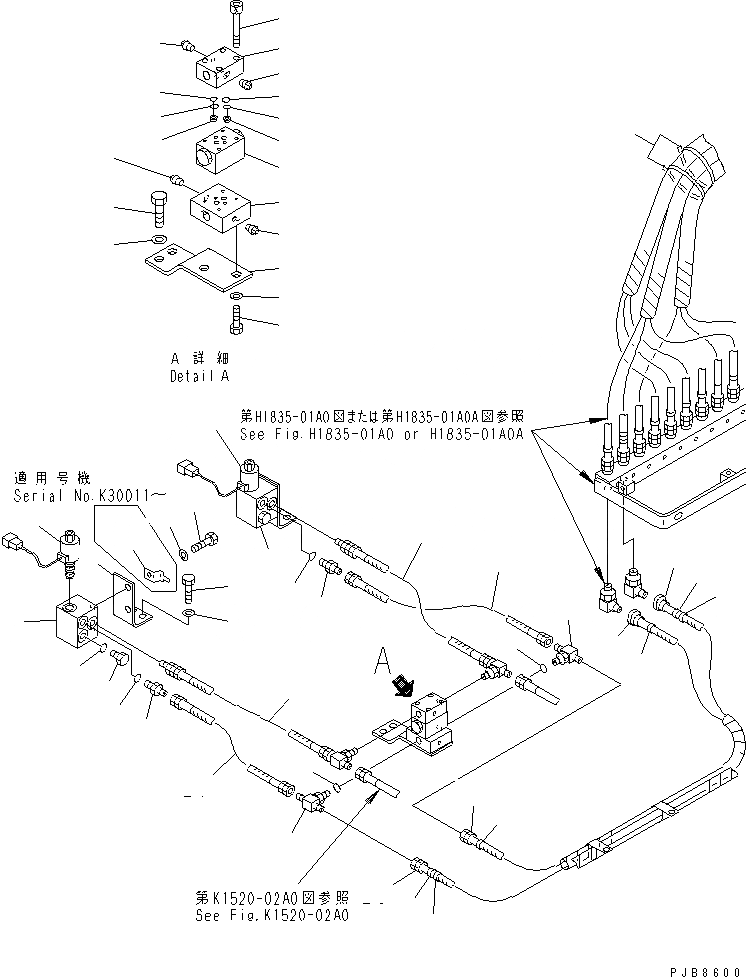

Запчасти Komatsu PC750SE-6K-01 PPC ЛИНИЯ СОЕД-Е (КЛАПАН)(№K-K999) ГИДРАВЛИКА

|1

20Y-60-11802

SOLENOID VALVE ASS'Y

1

20Y-60-11712

SOLENOID VALVE

2

20Y-60-11810

BLOCK

3

205-62-55270

NIPPLE

4

07002-11423

O-RING

5

07040-11409

PLUG

6

07002-11423

O-RING

7

209-62-77980

BRACKET

8

01010-81225

BOLT

9

01643-31232

WASHER

10

01010-81225

BOLT

11

01643-31232

WASHER

11A

08053-01512

CLIP

|12

209-60-71100

VALVE ASS'Y

12

209-60-72510

VALVE

13

209-62-77890

BLOCK

14

209-62-77910

BLOCK

15

209-62-77921

ORIFICE

16

22S-68-11430

BOLT

17

07000-11009

O-RING

18

07000-12010

O-RING

19

07042-30108

PLUG

20

20Y-62-11780

TEE

21

07002-11423

O-RING

22

209-62-77970

BRACKET

23

01010-81225

BOLT

24

01643-31232

WASHER

25

01010-81225

BOLT

26

01643-31232

WASHER

27

209-62-78760

HOSE¤ 250MM

28

209-62-78680

HOSE¤ 1100MM

29

209-62-78690

HOSE¤ 1200MM

30

20Y-62-22790

BAND¤ RED

31

20Y-62-22830

BAND¤ WHITE

32

20Y-62-22860

BAND¤ BROWN

33

08034-00536

BAND
