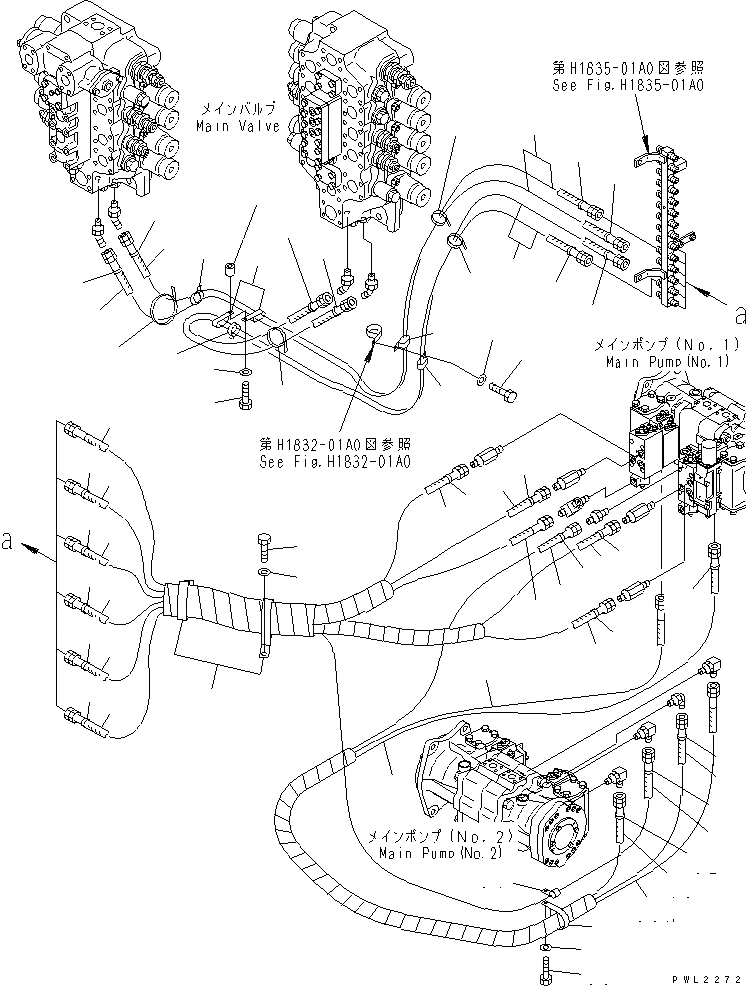

Запчасти Komatsu PC750SE-6 OLSS ЛИНИЯ(№9-999) ГИДРАВЛИКА

1

07108-20311

HOSE

2

07108-20312

HOSE

3

07108-20313

HOSE

4

20Y-62-23510

HOSE¤ 1200MM

5

21N-62-35840

HOSE¤ 3400MM

6

20Y-62-22790

BAND¤ RED

7

20Y-62-22810

BAND¤ YELLOW

8

20Y-62-22820

BAND¤ BLUE

9

20Y-62-22830

BAND¤ WHITE

10

20Y-62-22850

BAND¤ GREEN

11

20Y-62-15950

CLIP

12

01010-81230

BOLT

13

01643-31232

WASHER

14

07108-20313

HOSE

15

08034-00414

BAND

16

20Y-62-22810

BAND¤ YELLOW

17

20Y-62-22820

BAND¤ BLUE

18

101-04-12250

CLIP ASS'Y

19

01010-81230

BOLT

20

01643-31232

WASHER

21

08034-00536

BAND

22

08034-00536

BAND

23

07108-20311

HOSE

24

08034-00414

BAND

25

20Y-62-22790

BAND¤ RED

26

20Y-62-22830

BAND¤ WHITE

27

195-33-11220

SPACER

28

01010-81250

BOLT

29

01643-31232

WASHER

30

07184-003A9

HOSE

|30

20Y-62-22910

HOSE¤ 1050MM

30A

07185-00311

HOSE

|30A

20Y-62-22910

HOSE¤ 1050MM

31

20Y-62-22790

BAND¤ RED

32

20Y-62-22850

BAND¤ GREEN

33

113-899-7950

CLIP

34

04434-51512

CLIP

35

01010-81225

BOLT

36

01643-31232

WASHER
