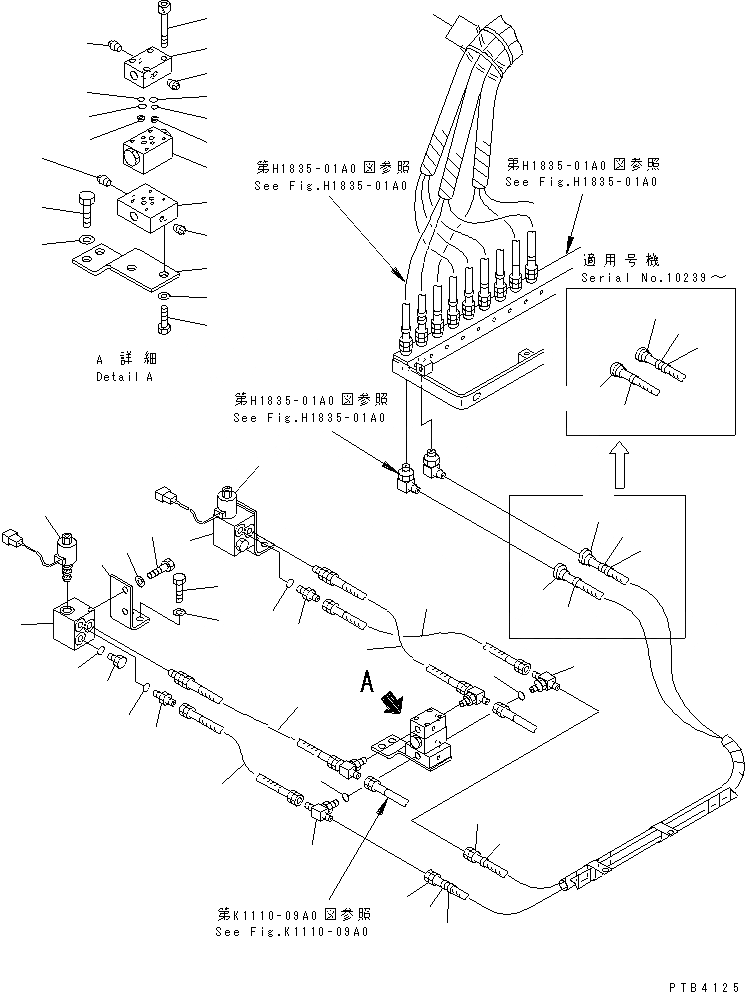

Запчасти Komatsu PC750SE-6 PPC ЛИНИЯ СОЕД-Е (КЛАПАН)(№-999) ГИДРАВЛИКА

|$3

20Y-60-11803

SOLENOID VALVE ASS'Y

1

20Y-60-11713

SOLENOID VALVE

2

20Y-60-11810

BLOCK

3

205-62-55270

NIPPLE

4

07002-01423

O-RING

5

07040-11409

PLUG

6

07002-01423

O-RING

7

209-62-77980

BRACKET

8

01010-81225

BOLT

8

01010-51225

BOLT

9

01643-31232

WASHER

10

01010-81225

BOLT

11

01643-31232

WASHER

|$17

209-60-71100

VALVE ASS'Y

12

209-60-72510

VALVE

13

209-62-77890

BLOCK

14

209-62-77910

BLOCK

15

209-62-77921

ORIFICE

16

22S-68-11430

BOLT

17

07000-11009

O-RING

17

07000-01009

O-RING

18

07000-12010

O-RING

18

07000-02010

O-RING

19

07042-30108

PLUG

20

20Y-62-11780

TEE

21

07002-01423

O-RING

22

209-62-77970

BRACKET

23

01010-81225

BOLT

24

01643-31232

WASHER

25

01010-81225

BOLT

26

01643-31232

WASHER

27

209-62-78760

HOSE, 250MM

28

209-62-78681

HOSE, 1100MM

28

209-62-78680

HOSE, 1100MM

29

209-62-78691

HOSE, 1200MM

29

209-62-78690

HOSE, 1200MM

30

20Y-62-22790

BAND, RED

31

20Y-62-22830

BAND, WHITE

32

20Y-62-22860

BAND, BROWN

33

08034-00536

BAND
