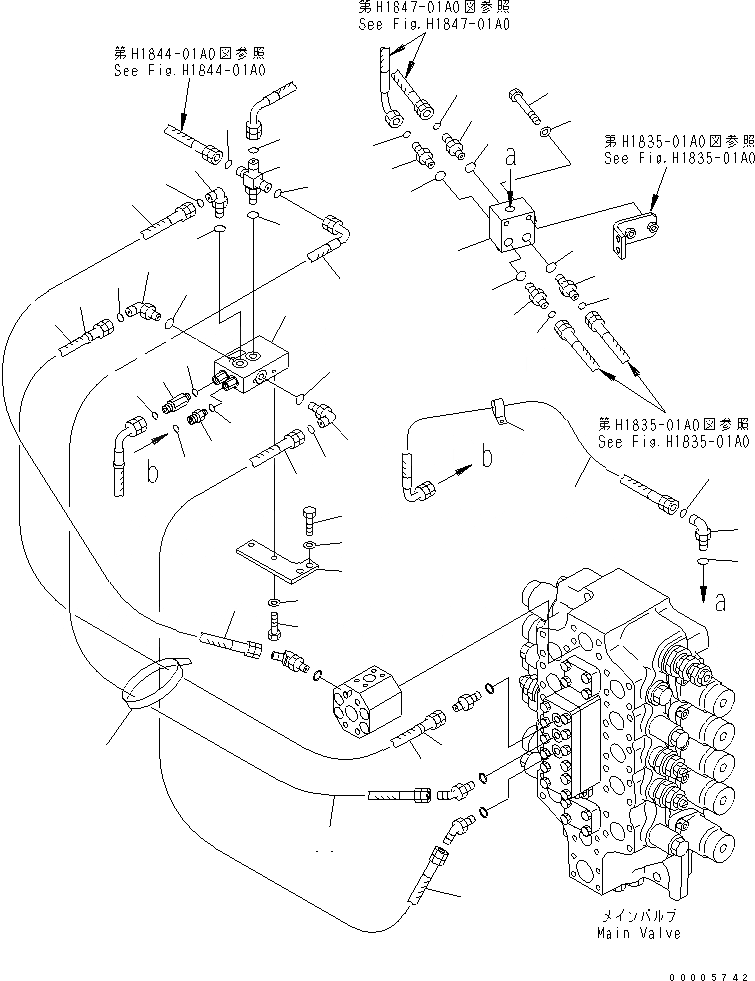

Запчасти Komatsu PC750LC-7K РАСПРЕДЕЛИТ. КЛАПАН ЛИНИЯ (РАСПРЕДЕЛИТ. КЛАПАН) ГИДРАВЛИКА

1

702-19-22000

CHECK VALVE ASS'Y,(SEE FIG.Y1676-01A0)

2

02781-00315

UNION

3

07002-12034

O-RING

4

02896-11009

O-RING

5

02782-10315

ELBOW

6

07002-12034

O-RING

7

02896-11009

O-RING

8

01010-81085

BOLT

9

01643-31032

WASHER

10

209-60-77260

VALVE ASS'Y,PILOT

11

20U-62-41710

NIPPLE

12

07002-11423

O-RING

13

02896-11009

O-RING

14

209-64-16470

ELBOW

15

07002-11423

O-RING

16

02896-11009

O-RING

17

209-64-16480

UNION

18

07002-11423

O-RING

19

02896-11009

O-RING

20

209-64-11371

BRACKET

21

01010-81030

BOLT

22

01643-31032

WASHER

23

02782-10312

ELBOW

24

07002-11423

O-RING

25

02896-11009

O-RING

26

209-64-16491

TEE

27

07002-11423

O-RING

28

02896-11009

O-RING

29

01010-81225

BOLT

30

01643-31232

WASHER

31

02756-00309

HOSE

32

20Y-62-22830

BAND¤ WHITE

33

209-64-16530

HOSE ASS'Y¤ 750MM

34

209-64-16540

HOSE ASS'Y¤ 850MM

35

04434-51512

CLIP

36

209-64-16520

HOSE ASS'Y¤ 350MM

37

02761-00309

HOSE

38

08034-20536

BAND
