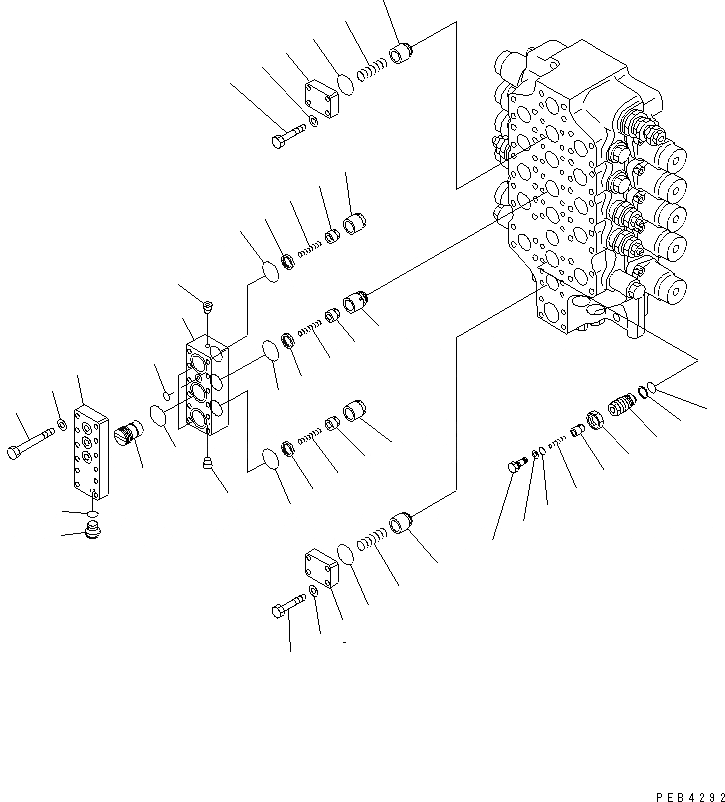

Запчасти Komatsu PC750LC-6K-01 ОСНОВН. КЛАПАН (/) (5-СЕКЦИОНН.)(№K-K999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

709-15-93301

CONTROL VALVE

|1

709-15-93300

CONTROL VALVE

|1

709-15-00052

BODY GROUP ASS'Y

1

709-14-11810

BLOCK

2

709-14-11820

PLATE

3

709-12-11411

VALVE

4

709-12-11430

SPRING

5

07000-13048

O-RING

6

709-12-12440

PLATE

7

01010-81250

BOLT

8

01643-31232

WASHER

9

709-14-11750

PISTON

10

709-14-11760

SEAL

11

709-14-11771

POPPET

12

709-14-11850

POPPET

13

709-14-11860

POPPET

14

709-14-11790

SPRING

15

708-8E-16160

PLUG

16

07002-11023

O-RING

17

01011-81215

BOLT

18

07000-02018

O-RING

19

07043-70108

PLUG

20

709-10-91320

SLEEVE

21

706-73-70140

VALVE,VALVE

22

706-73-70150

SPRING

23

709-74-92450

PLUG

24

709-74-92460

NUT

25

700-93-11320

O-RING

26

700-93-11330

RING,BACK-UP

27

07000-12010

O-RING

28

07001-02010

RING
