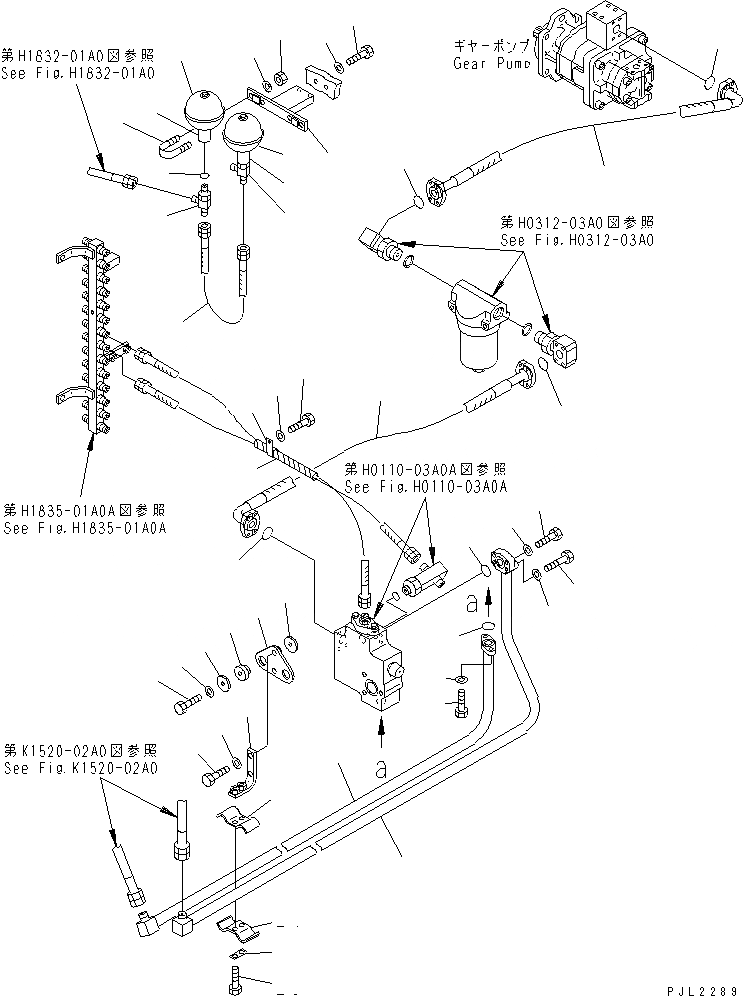

Запчасти Komatsu PC750LC-6K-01 ЛИНИЯ НАСОСА PPC(№K-K999) ГИДРАВЛИКА

1

07298-01008

HOSE

2

07000-13032

O-RING

3

07298-01007

HOSE

4

07000-13032

O-RING

5

20Y-60-K1110

ACCUMULATOR

5A

203-62-K1812

ADAPTER

6

201-62-72320

HOSE¤ 300MM

7

209-62-57210

TEE

8

07002-12034

O-RING

9

07283-23450

CLIP

10

01599-01011

NUT

11

01643-31032

WASHER

12

209-62-77630

BRACKET

13

01010-81245

BOLT

14

01643-31232

WASHER

15

209-62-75550

HOSE ASS'Y

16

04435-51512

CLIP

17

01010-81225

BOLT

18

01643-31232

WASHER

19

209-62-77161

TUBE

20

07000-13030

O-RING

21

07372-21045

BOLT

22

07372-21055

BOLT

23

01643-51032

WASHER

24

20Y-62-13710

CLAMP

25

20Y-62-13450

PLATE

26

01010-81240

BOLT

27

209-62-77170

BRACKET

28

01010-81230

BOLT

29

01643-31232

WASHER

30

209-62-78670

PLATE

31

195-03-41380

CUSHION

32

178-60-12250

COLLAR

33

01010-81050

BOLT

34

01643-31032

WASHER

35

209-62-77150

TUBE

36

07000-13028

O-RING

37

07372-21030

BOLT

38

01643-51032

WASHER
