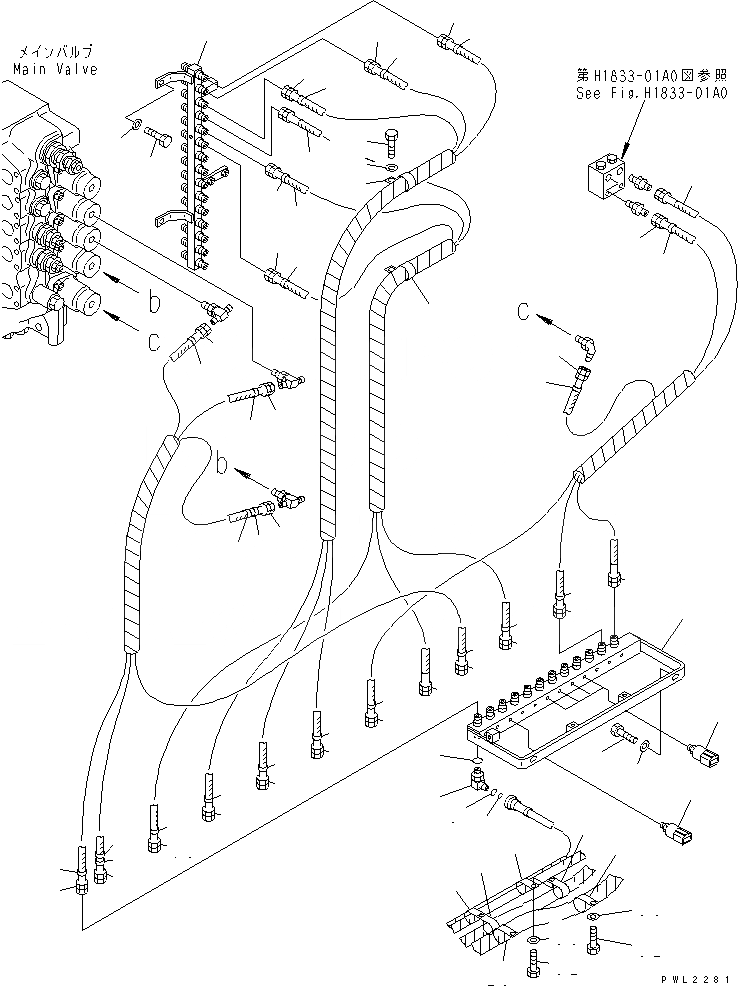

Запчасти Komatsu PC750LC-6 PPC ЛИНИЯ СОЕД-Е (СОЕД-Е)(№9-999) ГИДРАВЛИКА

1

209-62-77512

JOINT

2

01010-81230

BOLT

3

01643-31232

WASHER

4

209-62-79130

ELBOW

5

201-60-11390

O-RING

6

20Y-62-19560

O-RING

7

07002-01423

O-RING

8

20Y-62-22790

BAND, RED

9

20Y-62-22810

BAND, YELLOW

10

20Y-62-22830

BAND, WHITE

11

20Y-62-22860

BAND, BROWN

12

20Y-62-23510

HOSE, 1200MM

13

203-62-62790

HOSE, 1300MM

14

20Y-62-22790

BAND, RED

15

20Y-62-22840

BAND, BLACK

16

207-62-62880

HOSE, 1600MM

17

20Y-62-22820

BAND, BLUE

18

20Y-62-22830

BAND, WHITE

19

20Y-62-22850

BAND, GREEN

20

207-62-62880

HOSE, 1600MM

21

20Y-62-22790

BAND, RED

22

20Y-62-22820

BAND, BLUE

23

20Y-62-23510

HOSE, 1200MM

24

201-62-72370

HOSE

25

209-62-77683

JOINT

26

01010-81230

BOLT

27

01643-31232

WASHER

28

113-899-7950

CLIP

29

20Y-62-15951

CLIP

30

113-899-7950

CLIP

31

20Y-62-15951

CLIP

32

01010-81230

BOLT

33

01643-31232

WASHER

34

206-06-61130

SWITCH

35

20Y-06-21710

SWITCH
