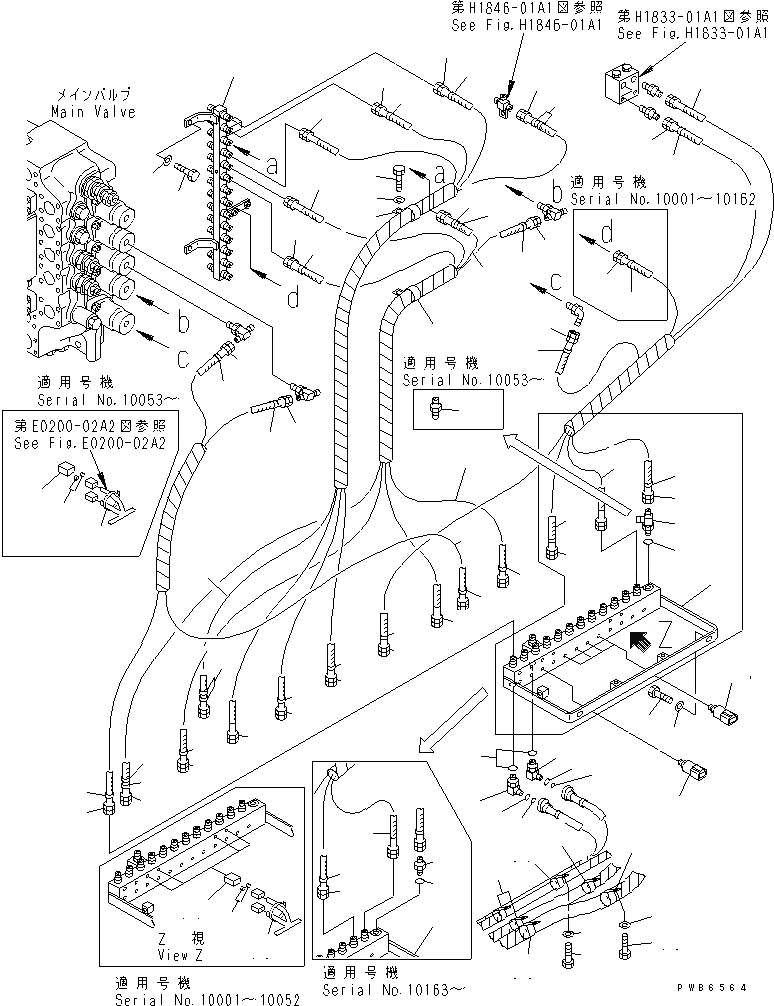

Запчасти Komatsu PC750-6 PPC ЛИНИЯ СОЕД-Е (СОЕД-Е) (НИЖН. РАЗГРУЗКА ТИП) (ДЛЯ ПОГРУЗ.)(№-8) ГИДРАВЛИКА

1

209-62-76421

JOINT

2

01010-81230

BOLT

3

01643-31232

WASHER

4

209-62-79130

ELBOW

5

201-60-11390

O-RING

6

20Y-62-19560

O-RING

7

20Y-62-23440

ELBOW

8

201-60-11390

O-RING

9

20Y-62-19560

O-RING

10

07002-11423

O-RING

11

205-62-55270

NIPPLE

|11

21T-62-29960

TEE

12

07002-11423

O-RING

13

20Y-62-22810

BAND¤ YELLOW

14

20Y-62-22860

BAND¤ BROWN

15

20Y-62-23510

HOSE¤ 1200MM

16

203-62-62790

HOSE¤ 1300MM

17

20Y-62-22790

BAND¤ RED

18

20Y-62-22830

BAND¤ WHITE

19

20Y-62-22840

BAND¤ BLACK

20

207-62-62880

HOSE¤ 1600MM

21

209-62-77540

HOSE¤ 1700MM

22

20Y-62-22820

BAND¤ BLUE

23

20Y-62-22830

BAND¤ WHITE

24

20Y-62-22850

BAND¤ GREEN

25

207-62-62880

HOSE¤ 1600MM

26

209-62-77540

HOSE¤ 1700MM

27

20Y-62-22790

BAND¤ RED

28

20Y-62-22820

BAND¤ BLUE

29

20Y-62-22850

BAND¤ GREEN

30

20Y-62-22910

HOSE¤ 1050MM

31

20Y-62-23510

HOSE¤ 1200MM

32

201-62-72370

HOSE

33

209-62-77682

JOINT

|33

209-62-77681

JOINT

34

01010-81230

BOLT

35

01643-31232

WASHER

36

113-899-7950

CLIP

37

20Y-62-15951

CLIP

38

113-899-7950

CLIP

39

20Y-62-15951

CLIP

40

01010-81230

BOLT

41

01643-31232

WASHER

42

206-06-61130

SWITCH

|42

20Y-06-21710

SWITCH

|42

20Y-06-21710

SWITCH

42A

20Y-06-21710

SWITCH,(FOR TRAVEL)

43

08055-00070

PLUG

|43

08055-00070

PLUG

44

08055-00282

CONNECTOR

|44

08055-00282

CONNECTOR

45

08034-00414

BAND

|45

08034-00414

BAND
