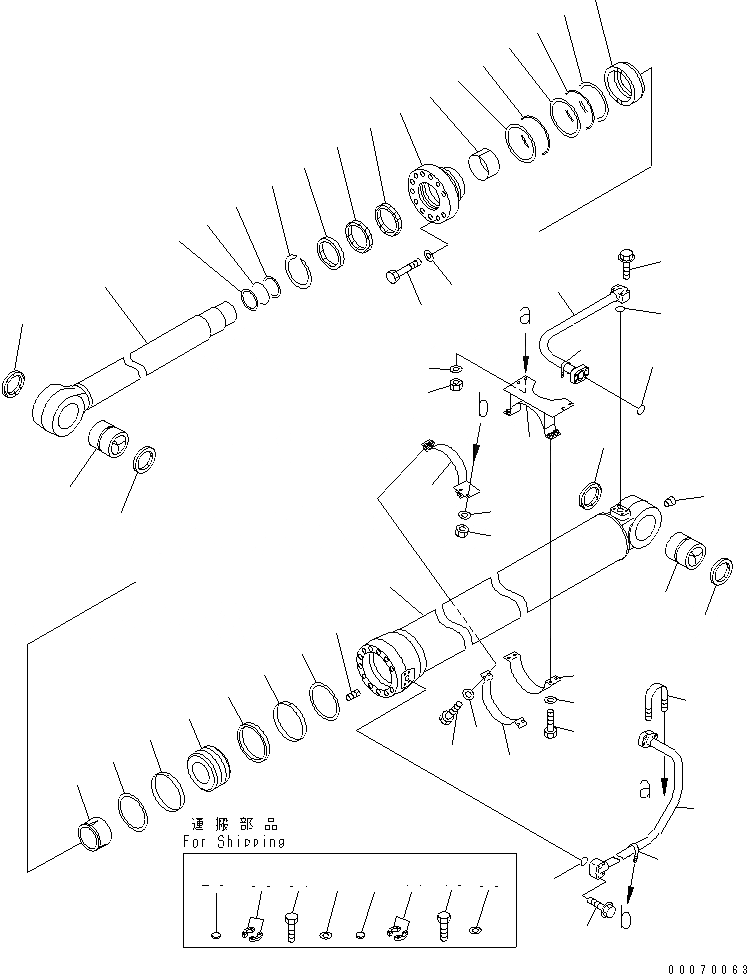

Запчасти Komatsu PC750-6 ЦИЛИНДР КОВША(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XZ750

CYLINDER GROUP,(FINAL COATING)

G-1

209-63-X2550

CYLINDER GROUP

|$3

209-63-02550

CYLINDER ASS'Y

1

209-63-74340

CYLINDER

2

209-63-74320

ROD,PISTON

3

707-76-11130

BUSHING

4

07145-00110

SEAL,DUST (KIT)

5

07043-00108

PLUG

6

707-76-11130

BUSHING

7

07145-00110

SEAL,DUST (KIT)

8

707-71-32930

COLLAR

9

707-35-91840

RING,BACK-UP (KIT)

10

07000-15175

O-RING (KIT)

11

707-71-61320

PLUNGER

12

707-27-18960

HEAD,CYLINDER

13

07179-13136

RING

14

195-63-93170

SEAL,DUST (KIT)

15

707-52-90980

BUSHING

16

707-51-12030

PACKING,ROD (KIT)

17

707-51-12630

RING,BUFFER (KIT)

18

07000-15175

O-RING (KIT)

19

707-35-91840

RING,BACK-UP (KIT)

20

01011-82400

BOLT

21

707-88-75410

WASHER

22

707-36-18520

PISTON

23

707-44-18280

RING,PISTON (KIT)

24

707-39-18830

RING,WEAR (KIT)

25

707-44-18920

RING

26

07000-15110

O-RING (KIT)

27

07001-05110

RING,BACK-UP (KIT)

28

01310-01225

SCREW

29

707-88-33040

CAP,FOR SHIPPING

30

07371-31049

FLANGE,FOR SHIPPING

31

07372-21035

BOLT,FOR SHIPPING

32

01643-51032

WASHER,FOR SHIPPING

33

209-63-74370

TUBE

34

209-63-73582

TUBE

35

01435-01055

BOLT

36

07000-13035

O-RING (KIT)

37

209-63-73592

BRACKET

38

707-88-21060

BAND

39

01010-81240

BOLT

40

01643-51232

WASHER

41

07283-23442

CLIP

42

01599-01011

NUT

43

01643-31032

WASHER

44

707-88-22030

BRACKET

45

707-88-21050

BAND

46

07378-11210

HEAD,FOR SHIPPING

47

07371-51260

FLANGE,FOR SHIPPING

48

07000-13038

O-RING

49

01010-81245

BOLT,FOR SHIPPING

50

01643-31232

WASHER,FOR SHIPPING

|$56

707-99-68560

SERVICE KIT
