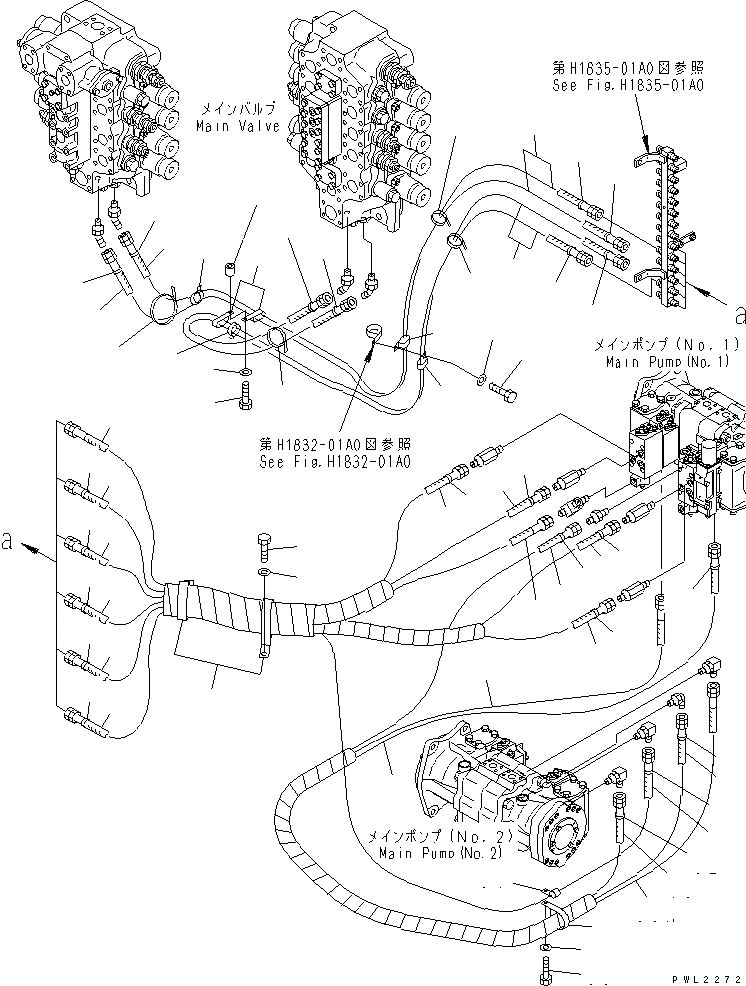

Запчасти Komatsu PC750-6 OLSS ЛИНИЯ(№9-999) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
1
07108-20311
HOSE
2
07108-20312
HOSE
3
07108-20313
HOSE
4
20Y-62-23510
HOSE, 1200MM
5
21N-62-35840
HOSE, 3400MM
6
20Y-62-22790
BAND, RED
7
20Y-62-22810
BAND, YELLOW
8
20Y-62-22820
BAND, BLUE
9
20Y-62-22830
BAND, WHITE
10
20Y-62-22850
BAND, GREEN
11
20Y-62-15950
CLIP
12
01010-81230
BOLT
13
01643-31232
WASHER
14
07108-20313
HOSE
15
08034-00414
BAND
16
20Y-62-22810
BAND, YELLOW
17
20Y-62-22820
BAND, BLUE
18
101-04-12250
CLIP ASS'Y
19
01010-81230
BOLT
20
01643-31232
WASHER
21
08034-00536
BAND
22
08034-00536
BAND
23
07108-20311
HOSE
24
08034-00414
BAND
25
20Y-62-22790
BAND, RED
26
20Y-62-22830
BAND, WHITE
27
195-33-11220
SPACER
28
01010-81250
BOLT
29
01643-31232
WASHER
30
07184-003A9
HOSE
30
20Y-62-22910
HOSE, 1050MM
30A
07185-00311
HOSE
30A
20Y-62-22910
HOSE, 1050MM
31
20Y-62-22790
BAND, RED
32
20Y-62-22850
BAND, GREEN
33
113-899-7950
CLIP
34
04434-51512
CLIP
35
01010-81225
BOLT
36
01643-31232
WASHER
Выбрано товаров: 39
