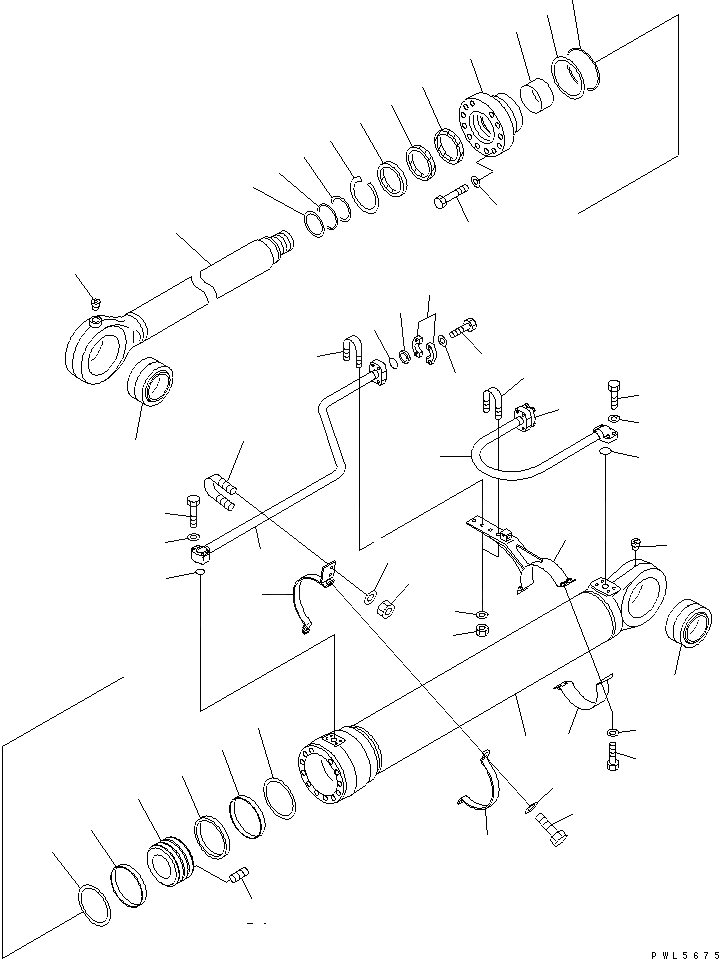

Запчасти Komatsu PC750-6-AM ЦИЛИНДР КОВША (ДЛЯ ПОГРУЗ.)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XY900

CYLINDER GROUP,L.H. (FINAL COATING)

G-2

707-01-XY910

CYLINDER GROUP,R.H. (FINAL COATING)

|1

707-01-0C480

CYLINDER ASS'Y

1

707-13-18640

CYLINDER

2

707-46-11510

BUSHING

3

07043-00108

PLUG

4

707-27-18970

HEAD,CYLINDER

5

707-51-13030

PACKING,ROD (KIT)

6

707-51-13640

PACKING,BUFFER (KIT)

7

707-52-91070

BUSHING

8

707-56-13520

SEAL,DUST (KIT)

9

07179-14146

RING

10

07000-15175

O-RING (KIT)

11

707-35-91840

RING,BACK-UP (KIT)

12

01011-82400

BOLT

13

707-88-75410

WASHER

14

707-58-13170

ROD,PISTON

15

707-46-11510

BUSHING

16

07043-00108

PLUG

17

707-36-18530

PISTON

18

07000-15120

O-RING (KIT)

19

07001-05120

RING,BACK-UP (KIT)

20

707-44-18920

RING

21

707-39-18830

RING,WEAR (KIT)

22

707-44-18280

RING,PISTON (KIT)

23

01310-01225

SCREW

24

707-86-11860

TUBE,L.H.

|24

707-86-11870

TUBE,R.H.

25

209-62-53440

TUBE,L.H.

|25

209-62-53450

TUBE,R.H.

26

07000-13035

O-RING (KIT)

27

01010-81060

BOLT

28

01643-51032

WASHER

29

07000-13038

O-RING (KIT)

30

01010-81245

BOLT

31

01643-31232

WASHER

32

707-88-95800

BAND

33

707-88-21090

BAND

34

707-88-95810

BRACKET

35

209-63-78190

BRACKET

36

01010-81240

BOLT

37

01643-31232

WASHER

38

07283-23442

CLIP

39

01599-01011

NUT

40

01643-31032

WASHER

41

07000-13038

O-RING

42

07378-11210

HEAD

43

07371-51260

FLANGE

44

01010-81245

BOLT

45

01643-31232

WASHER

|K

707-99-69690

SERVICE KIT
