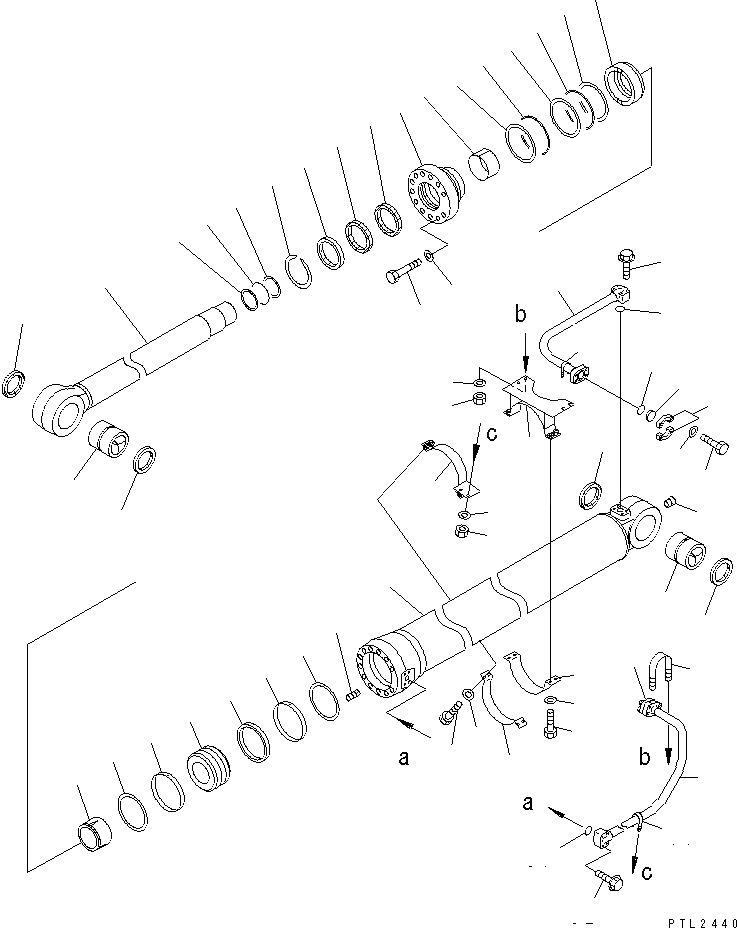

Запчасти Komatsu PC750-6-AM ЦИЛИНДР КОВША(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XZ750

CYLINDER GROUP,(FINAL COATING)

G-1

209-63-X2550

CYLINDER GROUP

|1

209-63-02550

CYLINDER ASS'Y

1

209-63-74340

CYLINDER

2

707-76-11130

BUSHING

3

07145-00110

SEAL,DUST (KIT)

4

07043-00108

PLUG

5

707-27-18960

HEAD,CYLINDER

6

707-51-12030

PACKING,ROD (KIT)

7

707-51-12630

RING,BUFFER (KIT)

8

707-52-90980

BUSHING

9

195-63-93170

SEAL,DUST (KIT)

10

07179-13136

RING

11

07000-15175

O-RING (KIT)

12

707-35-91840

RING,BACK-UP (KIT)

13

07000-15175

O-RING (KIT)

14

707-35-91840

RING,BACK-UP (KIT)

15

707-71-32930

COLLAR

16

01011-82400

BOLT

17

707-88-75410

WASHER

18

209-63-74320

ROD,PISTON

19

707-76-11130

BUSHING

20

07145-00110

SEAL,DUST (KIT)

21

707-36-18520

PISTON

22

07000-15110

O-RING (KIT)

23

07001-05110

RING,BACK-UP (KIT)

24

707-44-18920

RING

25

707-39-18830

RING,WEAR (KIT)

26

707-44-18280

RING,PISTON (KIT)

27

707-71-61320

PLUNGER

28

01310-01225

SCREW

29

209-63-74370

TUBE

30

209-63-73582

TUBE

31

07000-13035

O-RING (KIT)

32

01435-01055

BOLT

33

07000-13038

O-RING

34

07378-11210

HEAD

35

07371-51260

FLANGE

36

01010-81245

BOLT

37

01643-31232

WASHER

38

707-88-21050

BAND

39

707-88-21060

BAND

40

707-88-22030

BRACKET

41

209-63-73592

BRACKET

42

01010-81240

BOLT

43

01643-51232

WASHER

44

07283-23442

CLIP

45

01599-01011

NUT

46

01643-31032

WASHER

|K

707-99-68560

SERVICE KIT
