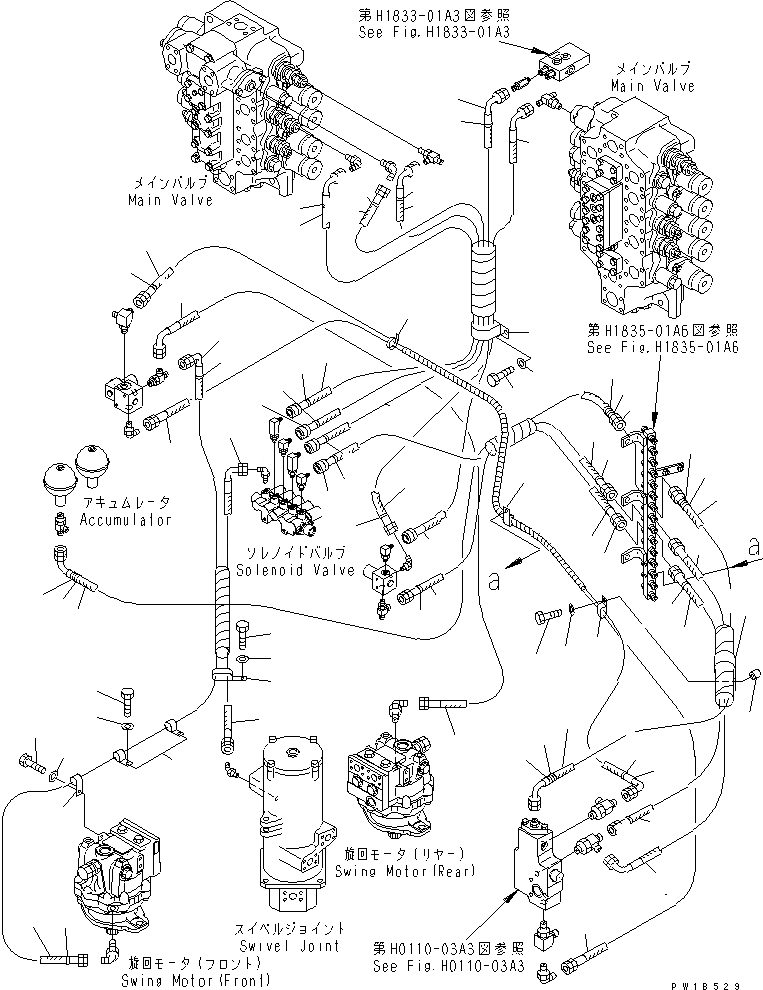

Запчасти Komatsu PC750-6-AM СОЛЕНОИДНЫЙ КЛАПАН ЛИНИЯ(№-) ГИДРАВЛИКА

1

07184-00313

HOSE

2

07185-00315

HOSE

3

22U-62-82850

HOSE

4

20Y-62-22790

BAND¤ RED

5

20Y-62-22830

BAND¤ WHITE

6

20Y-62-22850

BAND¤ GREEN

7

20Y-62-22860

BAND¤ BROWN

8

07184-00313

HOSE

9

07185-00314

HOSE

10

07185-00315

HOSE

11

20Y-62-22790

BAND¤ RED

12

20Y-62-22850

BAND¤ GREEN

13

20Y-62-22830

BAND¤ WHITE

14

07621-00427

HOSE

15

07623-00427

HOSE

16

20Y-62-22790

BAND¤ RED

17

113-899-7950

CLIP

18

195-33-11220

SPACER

19

01010-81255

BOLT

20

01643-31232

WASHER

21

141-06-11220

CLIP

22

08034-00519

BAND

23

07184-00313

HOSE

24

07185-00327

HOSE

25

20Y-62-22790

BAND¤ RED

26

04435-51812

CLIP

27

01010-81225

BOLT

28

01643-31232

WASHER

29

04434-51512

CLIP

30

01010-81225

BOLT

31

01643-31232

WASHER

32

04434-51510

CLIP

33

01010-81020

BOLT

34

01643-31032

WASHER

35

07185-00307

HOSE

36

07626-00311

HOSE

37

209-64-11520

HOSE¤ 900MM

38

209-64-11530

HOSE¤ 850MM

39

209-64-11540

HOSE¤ 1300MM

40

209-64-11550

HOSE¤ 1100MM

41

20Y-62-22850

BAND¤ GREEN

42

20Y-62-22820

BAND¤ BLUE

43

20Y-62-22810

BAND¤ YELLOW

44

20Y-62-22840

BAND¤ BLACK

45

207-62-33690

CLIP

46

01010-81230

BOLT

47

01643-31232

WASHER
