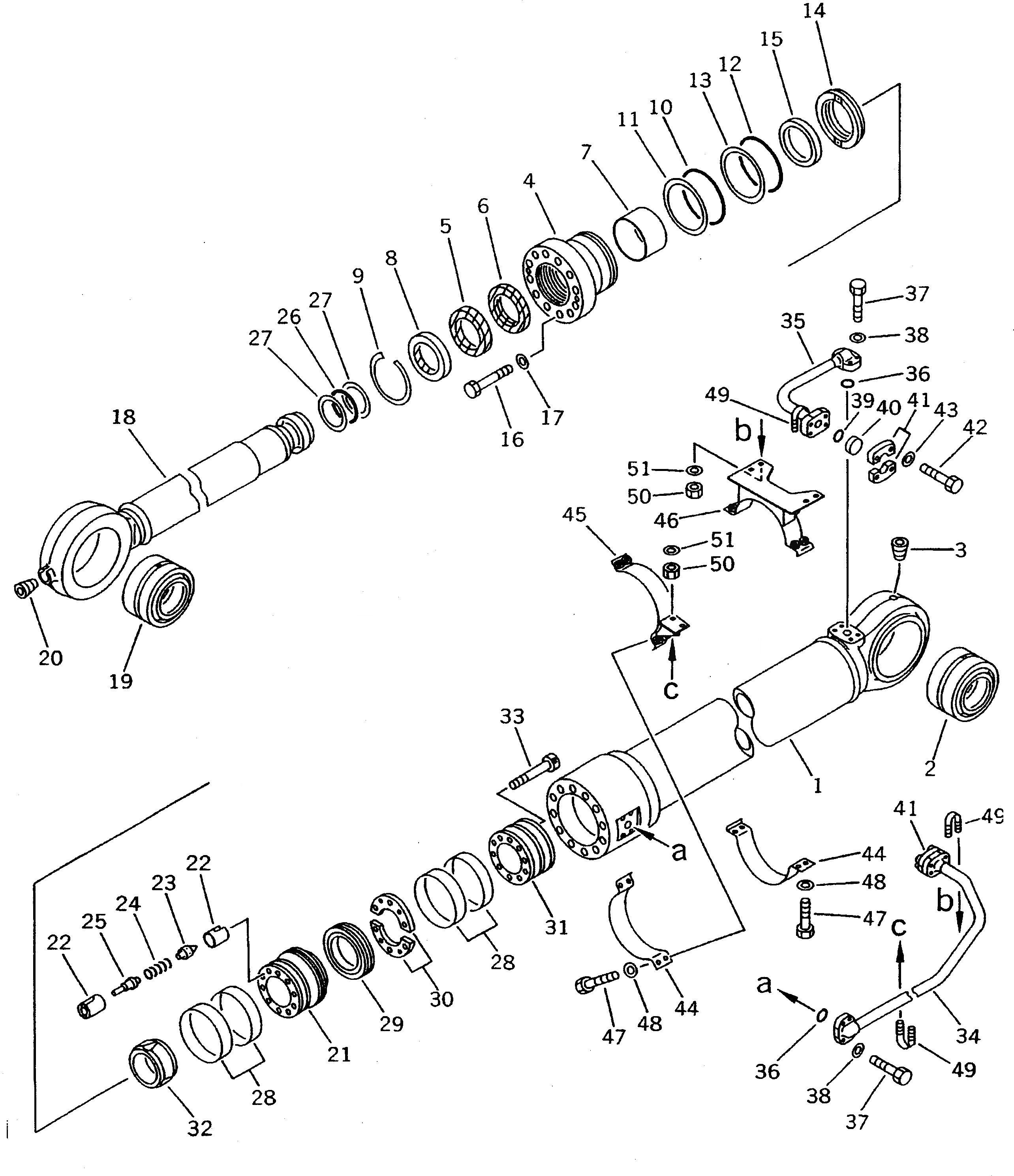

Запчасти Komatsu PC710SE-5 ЦИЛИНДР КОВША (ЭКСКАВАТ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

209-63-X2150

BUCKET CYLINDER G.

|$3

209-63-02150

CYLINDER ASS'Y

1

209-63-72741

CYLINDER

2

707-46-13010

BUSHING

3

07043-00108

PLUG

4

707-28-20720

HEAD,CYLINDER

5

707-51-14130

PACKING,ROD (KIT)

6

707-51-14640

RING,BUFFER (KIT)

7

707-52-91150

BUSHING

8

707-56-14740

SEAL,DUST (KIT)

9

07179-14160

RING

10

07000-15195

O-RING (KIT)

11

707-35-92050

RING,BACK-UP (KIT)

12

07000-15195

O-RING (KIT)

13

07001-05195

RING,BACK-UP (KIT)

14

707-71-31460

COLLAR

15

707-71-11450

RING

16

01011-82700

BOLT

17

01643-32780

WASHER

18

209-63-72720

ROD,PISTON

19

707-46-11520

BUSHING

20

07043-00108

PLUG

|$26

707-91-02062

PISTON ASS'Y

21

PISTON

22

SEAT

23

VALVE

24

SPRING

25

VALVE,PISTON

26

07000-12115

O-RING (KIT)

27

707-35-52860

RING,BACK-UP (KIT)

28

707-39-20820

RING,WEAR (KIT)

29

707-44-20180

RING,PISTON (KIT)

30

707-40-20970

SPACER

31

707-37-20020

PISTON

32

707-71-61410

PLUNGER

33

01252-31490

BOLT

34

209-62-68260

TUBE

35

209-62-68170

TUBE

36

07000-13038

O-RING (KIT)

37

01010-51245

BOLT

38

01643-31232

WASHER

39

07000-13038

O-RING (KIT)

40

07378-11210

HEAD

41

07371-51260

FLANGE

42

01010-51245

BOLT

43

01643-31232

WASHER

44

707-88-96110

BAND

45

209-62-68290

BRACKET

46

209-62-68280

BAND

47

01010-51240

BOLT

48

01643-31232

WASHER

49

07283-33442

CLIP

50

01599-01011

NUT

51

01643-31032

WASHER

|$59

707-99-77220

SERVICE KIT
