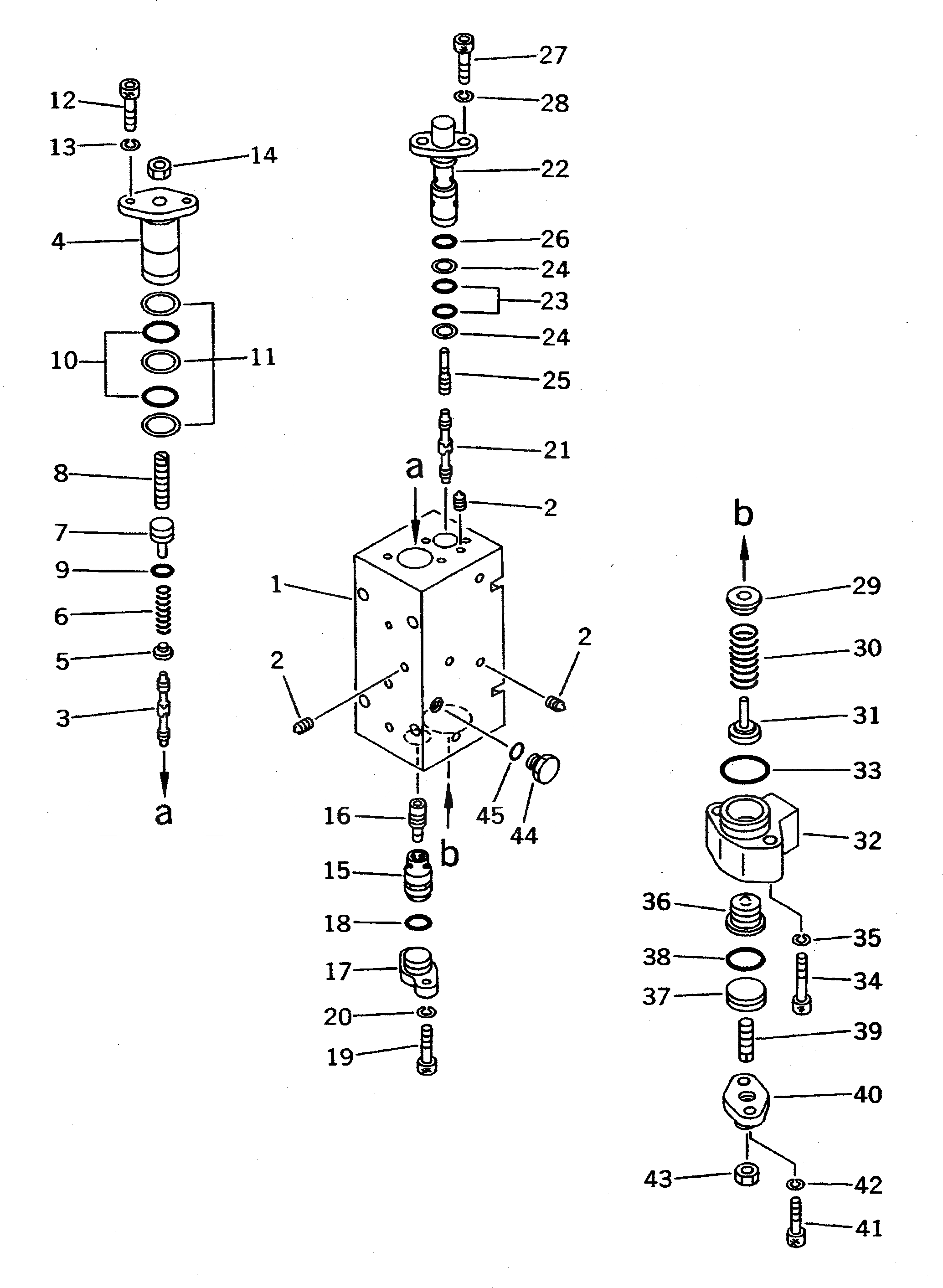

Запчасти Komatsu PC710SE-5 NO. НАСОС (/) (С -STAGE SELECTOR MODE OLSS) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|1
708-25-04071
PUMP ASS'Y
|1
708-25-09211
SERVO VALVE ASS'Y,REAR
|1
708-25-09611
VALVE ASS'Y,CO AND NC
|1
708-23-00430
BODY ASS'Y
1
BODY
2
EXPANDER
3
708-25-17141
SPOOL
4
708-25-17131
COVER
5
708-25-17180
SEAT
6
708-25-17690
SPRING
7
708-25-17460
PLUG
8
708-25-17430
SCREW
9
07000-02010
O-RING
10
07000-12021
O-RING
11
07001-02021
RING,BACK-UP
12
708-25-15320
BOLT
13
01602-20619
WASHER,SPRING
14
01580-10806
NUT
15
708-25-17150
SLEEVE
16
708-25-17160
PISTON
17
708-25-17170
COVER
18
07000-02014
O-RING
19
708-25-15320
BOLT
20
01602-20619
WASHER,SPRING
21
708-25-17141
SPOOL
22
708-25-17451
SLEEVE
23
07000-12012
O-RING
24
07001-02012
RING,BACK-UP
25
708-25-17220
PISTON
26
07000-02012
O-RING
27
708-25-15320
BOLT
28
01602-20619
WASHER,SPRING
29
708-25-17370
SEAT
30
708-25-17250
SPRING
31
708-25-17260
SEAT
32
708-23-17290
COVER
33
07000-03028
O-RING
34
706-75-40310
BOLT
35
01602-20619
WASHER,SPRING
36
708-23-17270
PISTON
37
708-25-17380
PLUG
38
07000-02021
O-RING
39
708-25-15340
SCREW
40
708-23-17240
COVER
41
708-25-15320
BOLT
42
01602-20619
WASHER,SPRING
43
01580-10806
NUT
44
07040-11007
PLUG
45
07002-01023
O-RING
Выбрано товаров: 49
