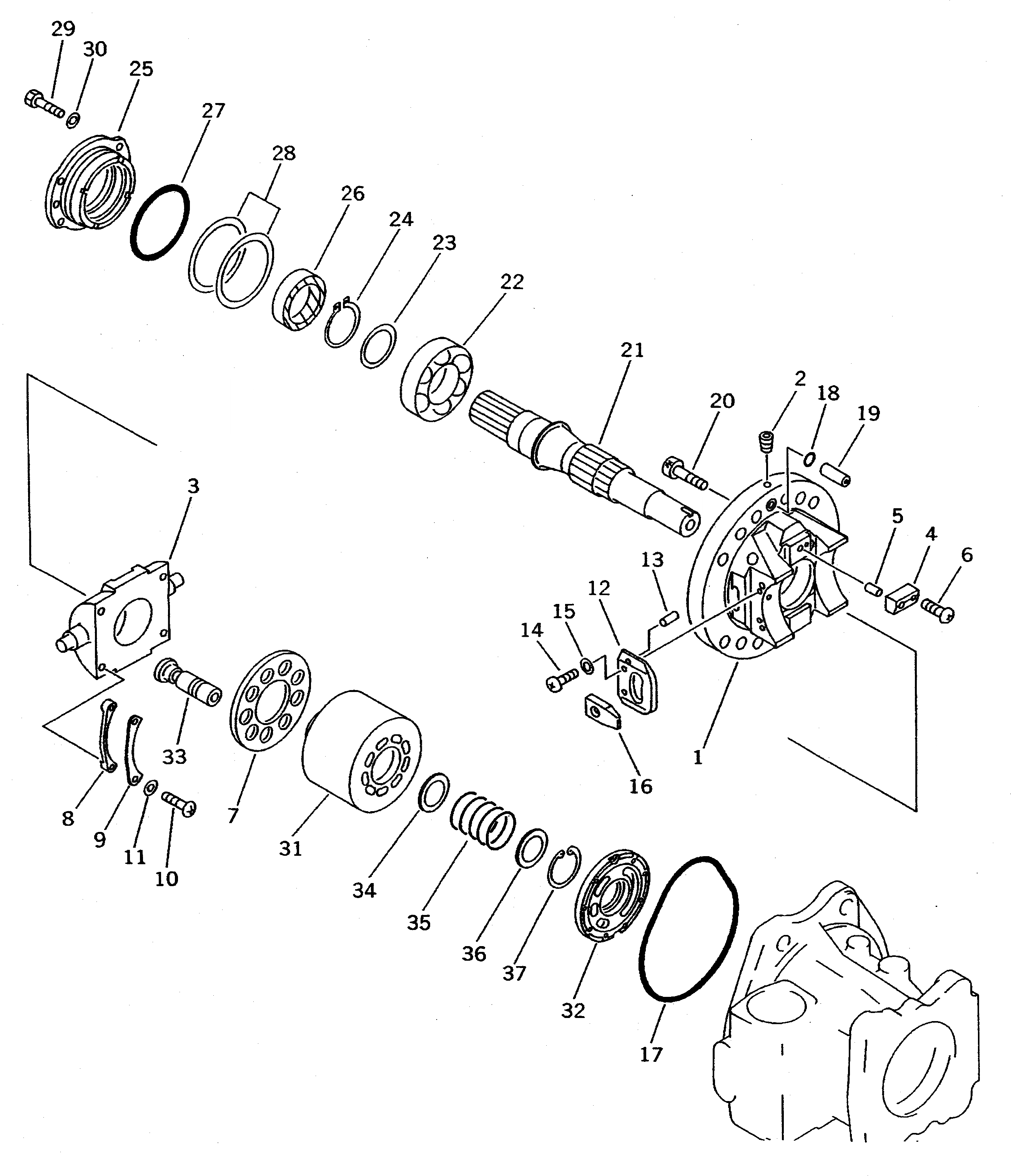

Запчасти Komatsu PC710-5 ПОВОРОТН. НАСОС (/7) ГИДРАВЛИКА

|1

708-17-01040

PUMP ASS'Y,(HPV 160)

|1

708-17-01140

PUMP SUB ASS'Y

|1

708-27-00212

CRADLE ASS'Y

|1

708-27-00380

CRADLE SUB ASS'Y

1

CRADLE

2

PLUG

3

708-27-13412

CAM,ROCKER

4

708-27-12350

STOPPER

5

04020-00820

PIN,DOWEL

6

706-75-42270

SCREW

7

708-27-13342

RETAINER,SHOE

8

708-27-05051

SPACER KIT

|8

SPACER

|8

SPACER

|8

SPACER

9

708-27-13420

RETAINER

10

708-27-13480

SCREW

11

01643-30823

WASHER

12

708-27-12330

PLATE

13

04020-00820

PIN,DOWEL

14

708-27-12340

SCREW

15

01643-30823

WASHER

16

708-27-14121

SLIDER

17

708-27-12130

O-RING

18

07000-12015

O-RING

19

708-25-12330

JOINT

20

706-87-50360

BOLT

21

708-17-22710

SHAFT

22

708-27-12730

BEARING

23

708-17-05010

WASHER KIT

|23

WASHER¤ 3.0MM

|23

WASHER¤ 3.1MM

|23

WASHER¤ 3.2MM

24

708-17-12780

RING

25

708-17-12790

HOUSING

26

708-27-22810

SEAL,OIL

27

07000-02105

O-RING

28

708-27-05010

SHIM KIT

|28

SHIM¤ 0.50MM

|28

SHIM¤ 0.10MM

|28

SHIM¤ 0.15MM

29

01010-50820

BOLT

30

01643-30823

WASHER

|31

708-27-00360

CYLINDER BLOCK A.

31

708-27-13112

CYLINDER BLOCK

32

708-27-23230

VALVE PLATE,PLATE

33

708-27-13314

PISTON SUB ASS'Y

34

708-27-13120

WASHER

35

708-27-13140

SPRING

36

708-27-13130

RETAINER

37

708-27-13150

RING
