Запчасти Komatsu PC710-5 ПОВОРОТН. КЛАПАН (/) ГИДРАВЛИКА

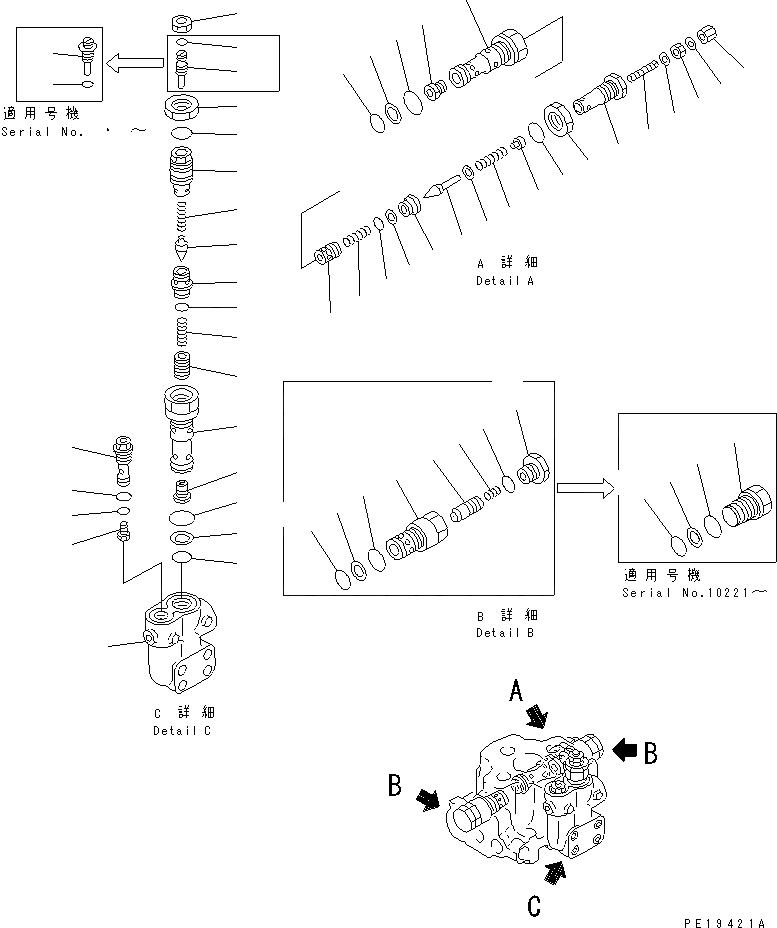

Схема запчастей Komatsu PC710-5 - ПОВОРОТН. КЛАПАН (/) ГИДРАВЛИКА
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
47
48
48
49
50
51
52
53
54
55

Артикул

Название

Примечание

Количество

|1

700-91-36001

VALVE ASS'Y

|1

700-91-36000

VALVE ASS'Y

|1

700-92-55000

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

SPRING

4

PLUG

5

SEAT

6

O-RING

7

RING,BACK-UP

8

POPPET

9

SPACER

10

SPRING

11

RETAINER

12

HOLDER

13

NUT

14

O-RING

15

SCREW

16

NUT

17

NUT

18

WASHER

19

700-93-11320

O-RING

20

700-93-11330

RING,BACK-UP

21

07002-03634

O-RING

|22

700-90-62002

VALVE ASS'Y

|22

700-90-62000

VALVE ASS'Y

22

SLEEVE

23

VALVE

24

SPRING

25

PLUG

26

O-RING

27

700-93-11320

O-RING

28

700-93-11330

RING,BACK-UP

29

07002-03634

O-RING

|30

700-90-99000

VALVE ASS'Y

30

700-93-12651

BODY

31

700-93-12660

ORIFICE

32

709-90-91110

SENSOR

33

07000-02014

O-RING

34

07002-02434

O-RING

|35

709-10-55202

VALVE ASS'Y

|35

709-10-55201

VALVE ASS'Y

|35

709-10-55200

VALVE ASS'Y

35

SLEEVE

36

VALVE

37

SPRING

38

PLUG

39

SEAT

40

O-RING

41

POPPET

42

SPRING

43

HOLDER

44

NUT

45

O-RING

46

SCREW

|46

709-10-51371

SCREW

|46

709-10-51370

SCREW

47

NUT

48

O-RING

49

700-93-11320

O-RING

50

700-93-11330

RING,BACK-UP

51

07002-03634

O-RING

52

700-93-11350

PLUG

53

700-93-11320

O-RING

54

700-93-11330

RING

55

07002-03634

O-RING

Выбрано товаров: 66
