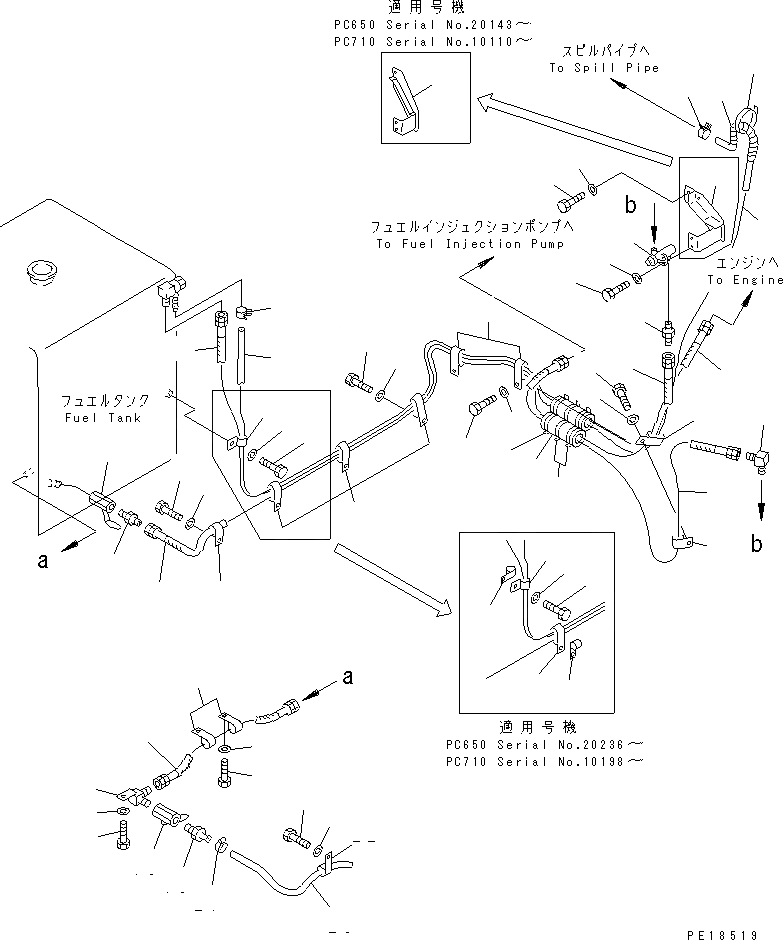

Запчасти Komatsu PC710-5 ТОПЛИВОПРОВОД. ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

04435-52112

CLIP

|1

209-04-51130

CLIP

2

01010-51225

BOLT

3

01643-31232

WASHER

4

07102-20443

HOSE

5

140-06-18440

CLIP

5A

08036-00814

CLIP

6

01010-51225

BOLT

7

01643-31232

WASHER

8

07102-20439

HOSE

9

07102-20409

HOSE

10

07700-40460

VALVE

11

209-04-51140

ELBOW

12

01010-51225

BOLT

13

01643-31232

WASHER

14

07700-40460

VALVE

15

154-04-12480

NIPPLE

16

140-06-18440

CLIP

17

01010-51225

BOLT

18

01643-31232

WASHER

19

10E-60-16360

NIPPLE

20

209-04-11240

TUBE

21

09480-10100

CLAMP

22

08036-02514

CLIP

23

01010-51225

BOLT

24

01643-31232

WASHER

25

07285-00085

CLIP

26

175-04-26160

TUBE

27

08017-31002

CONDUIT

28

08034-00519

BAND

29

21T-04-71340

BRACKET

|29

209-04-51122

BRACKET

30

01010-51025

BOLT

31

01643-31032

WASHER

32

07058-20000

FILTER ASS'Y

33

01010-50825

BOLT

34

01643-30823

WASHER

35

195-04-12280

ELBOW

36

10E-60-16360

NIPPLE

37

07102-20416

HOSE

38

205-62-53780

COVER

39

08034-00536

BAND
