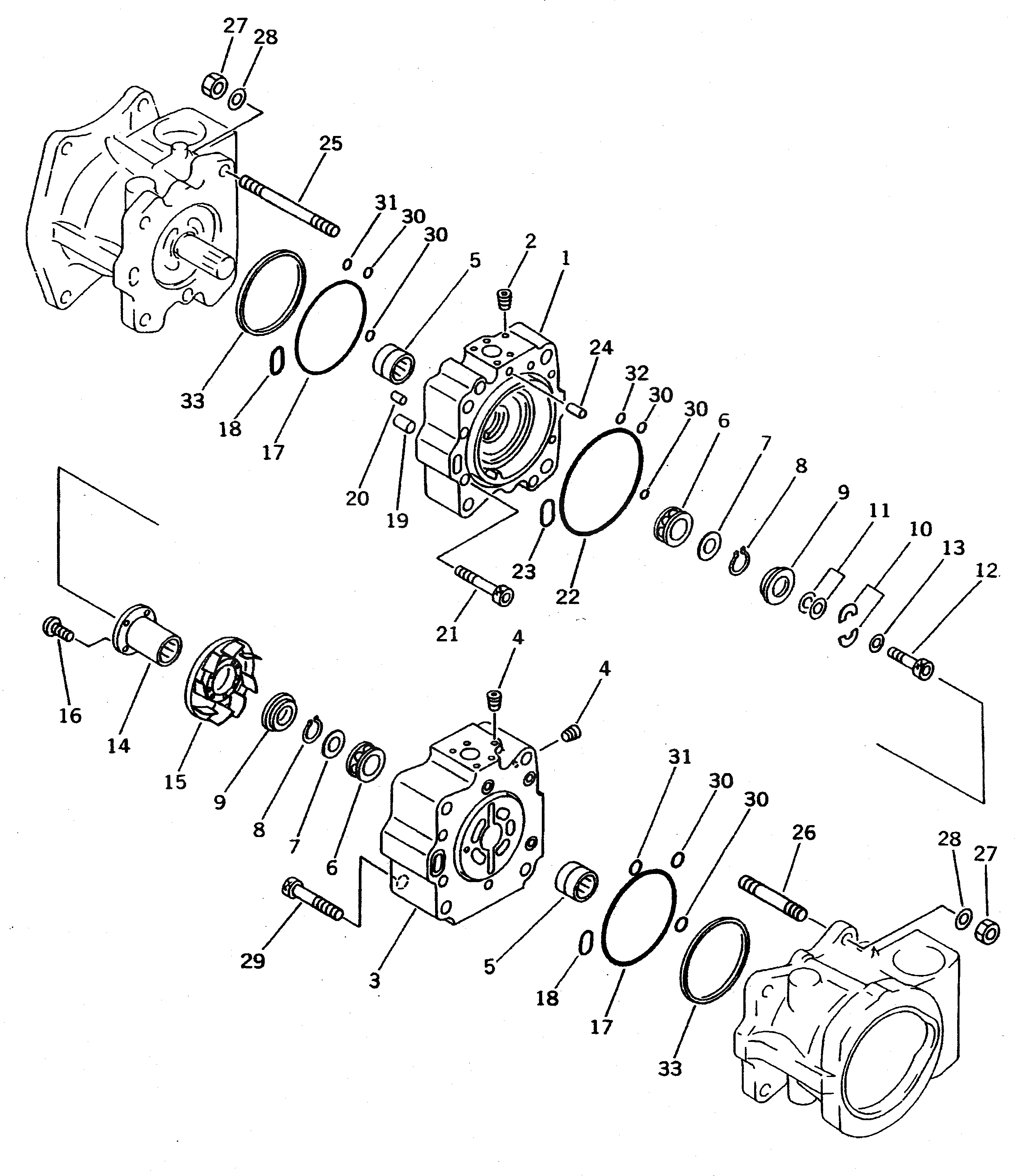

Запчасти Komatsu PC710-5 NO. НАСОС (/) (С -STAGE SELECTOR MODE OLSS) ГИДРАВЛИКА

|$1

708-25-04071

PUMP ASS'Y

|$3

708-25-04170

PUMP SUB ASS'Y

|$5

708-25-00421

END CAP ASS'Y,FRONT

1

CAP

2

PLUG

|$8

708-25-00440

END CAP ASS'Y,REAR

3

CAP

4

PLUG

5

708-2E-12260

BEARING

6

06000-51106

BEARING

7

708-25-05140

WASHER KIT

7

WASHER, 2.25MM

7

WASHER, 2.55MM

7

WASHER, 2.85MM

7

WASHER, 3.15MM

7

WASHER, 3.45MM

7

WASHER, 3.75MM

8

708-25-52830

RING

9

708-25-52840

RETAINER

10

708-25-12950

PLATE

11

708-25-05021

SHIM KIT

11

SHIM, 0.1MM

11

SHIM, 0.15MM

11

SHIM, 0.2MM

11

SHIM, 0.5MM

12

706-74-40320

BOLT

13

01643-31032

WASHER

14

708-25-52550

COUPLING

15

708-25-12542

IMPELLER

16

706-73-42270

SCREW

17

07000-02135

O-RING

18

07000-03032

O-RING

19

6130-21-1910

PIN

20

720-68-19610

PIN,DOWEL

21

708-25-12530

BOLT

22

07000-05165

O-RING

23

07000-03032

O-RING

24

720-68-19610

PIN,DOWEL

25

01141-81620

STUD

26

01140-81645

STUD

27

01582-01613

NUT

28

01643-31645

WASHER

29

708-25-12530

BOLT

30

07000-11009

O-RING

31

07000-12015

O-RING

32

07000-12012

O-RING

33

708-25-13630

RING
