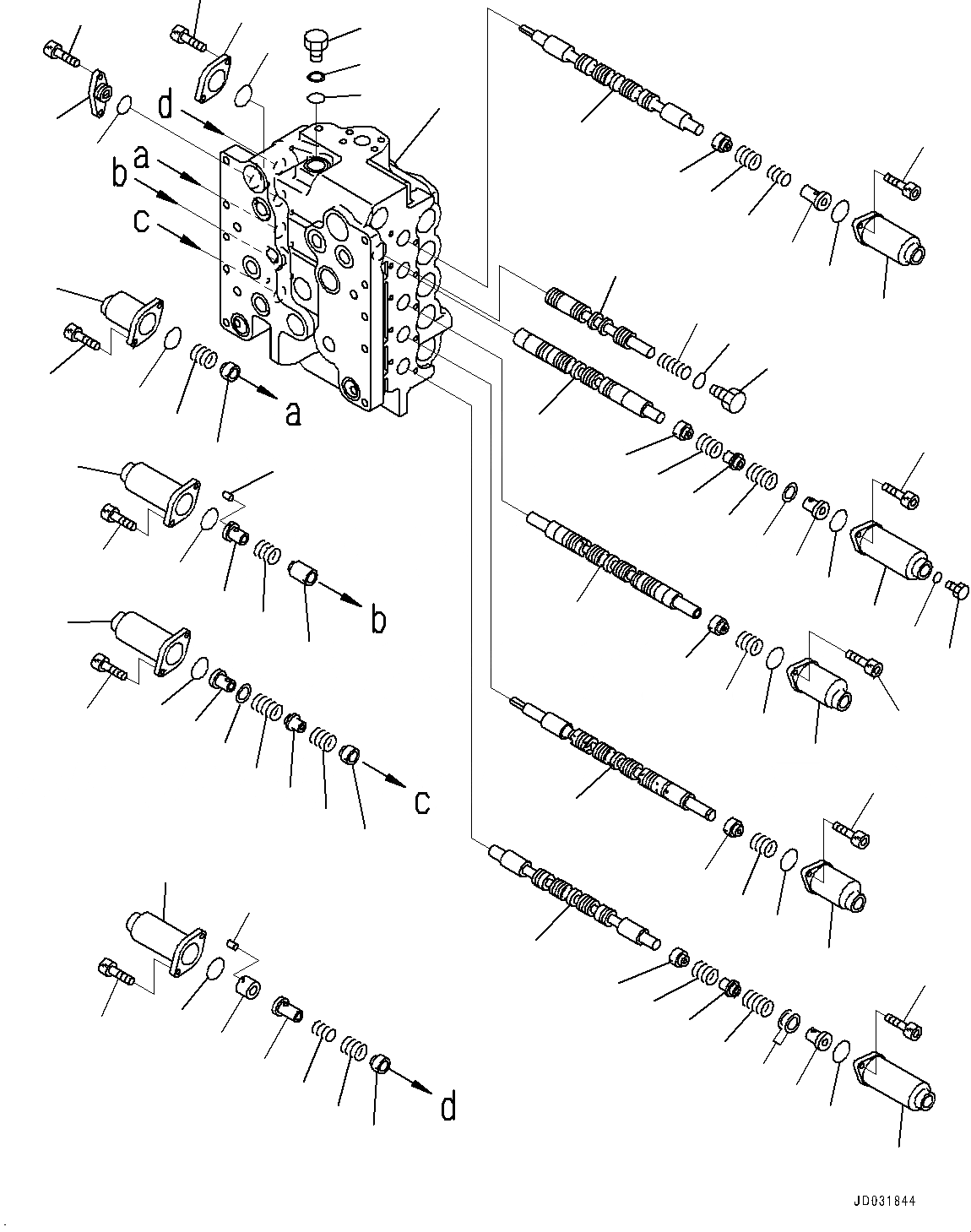

Запчасти Komatsu PC700LC-8E0 УПРАВЛЯЮЩ. КЛАПАН, ВНУТР. ЧАСТИ, ОСНОВН. КЛАПАН (7/8) H [ГИДРАВЛИКА]

|$1

709-99-15300

VALVE, CONTROL

|$2

BODY GROUP

1

VALVE BODY

2

SPOOL

3

SPOOL

4

SPOOL

5

SPOOL SUBASSEMBLY

6

SPOOL

7

SPOOL

8

709-74-91850

PLUG

9

07000-12018

O-RING

10

07001-02018

RING, BACK-UP

11

709-74-92590

PLATE

12

709-74-92170

O-RING

13

709-94-92510

SPRING

14

709-94-92520

SPRING

15

709-94-92590

SPRING

16

709-94-92530

RETAINER

17

709-94-92540

RETAINER

18

709-94-91130

RETAINER

19

709-94-92890

RETAINER

20

709-94-92630

RETAINER

21

709-94-92550

SPACER, T=0.5MM

22

709-94-91120

SPRING

23

709-94-92940

SPRING

24

709-94-91170

RETAINER

25

709-94-92960

RETAINER

26

709-94-92950

SPACER

27

709-94-91180

SPRING

28

709-94-92770

RETAINER

29

04022-04008

PIN, DOWEL

30

709-94-91210

CASE

31

709-94-92560

CASE

32

709-94-91720

CASE

33

07430-71380

O-RING

34

709-94-92610

CASE

35

01252-60820

BOLT, HEXAGON SOCKET HEAD

36

07040-12012

PLUG

37

07002-12034

O-RING

38

709-94-91160

SPRING
