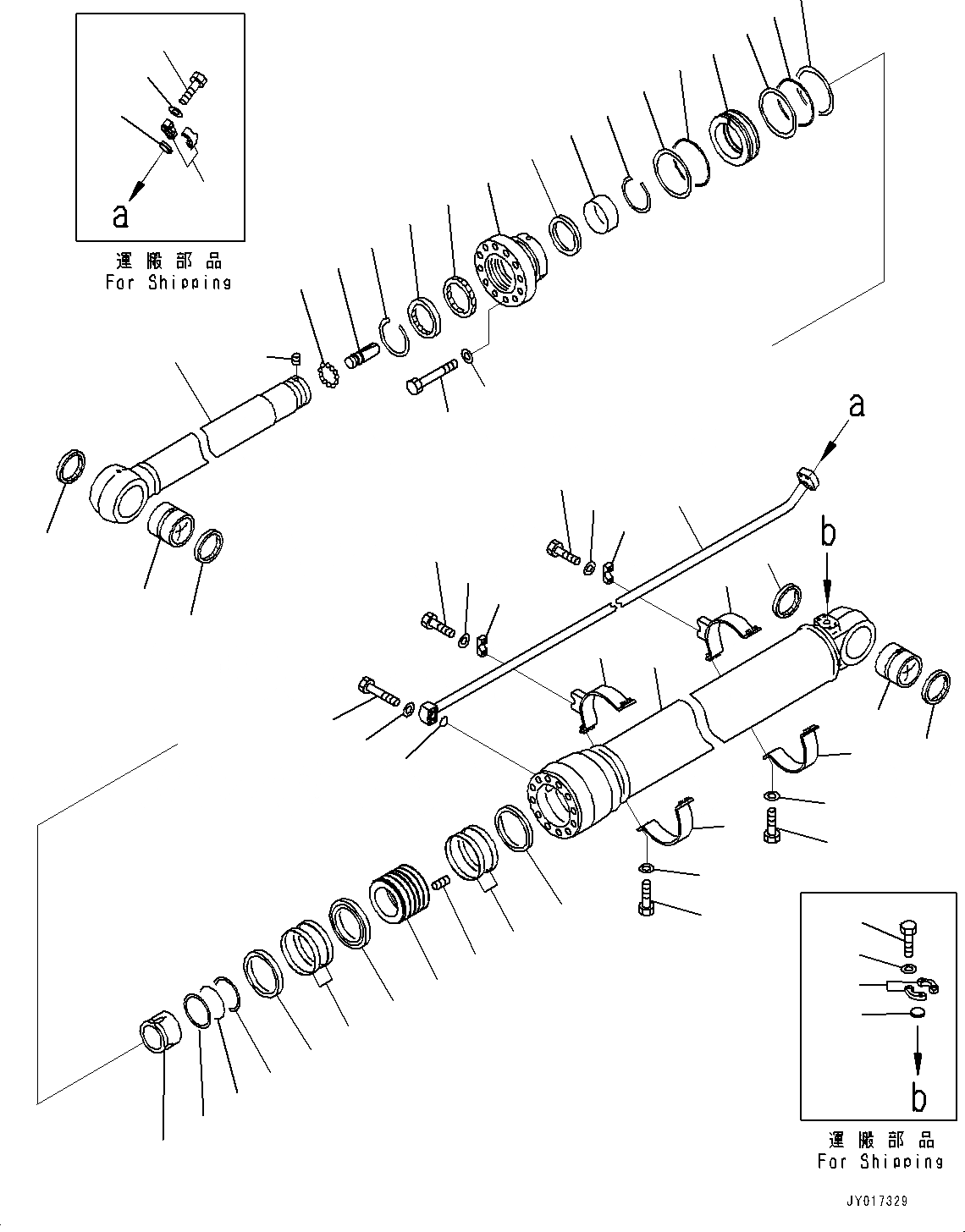

Запчасти Komatsu PC700LC-8E0 ЦИЛИНДР РУКОЯТИ(ВНУТР. ЧАСТИ) T [РАБОЧЕЕ ОБОРУДОВАНИЕ]

|$1

ЎС707-01-XZP80

CYLINDER G.(FINAL COATING)

|$2

707-01-0CA70

CYLINDER ASSEMBLY

1

707-13-20630

CYLINDER

2

707-58-14630

ROD, PISTON

3

707-76-12150

BUSHING

4

07145-00120

SEAL, DUST\((K09)\)

5

707-76-12520

BUSHING

6

07145-00125

SEAL, DUST\((K09)\)

7

707-71-61510

PLUNGER

8

707-71-32920

COLLAR

9

07000-15190

O-RING\((K09)\)

10

707-35-92020

RING, BACK-UP\((K09)\)

11

707-71-70370

PLUNGER

12

04260-00952

BALL

13

707-71-91230

CAP

14

707-27-20590

HEAD, CYLINDER

15

707-56-14740

SEAL, DUST\((K09)\)

16

07179-14160

RING, SNAP

17

707-51-14080

PACKING, ROD\((K09)\)

18

707-51-14650

RING, BUFFER\((K09)\)

19

707-52-91171

BUSHING

20

07000-15190

O-RING\((K09)\)

21

707-35-92020

RING, BACK-UP\((K09)\)

22

707-75-14110

RING, SNAP

23

01011-82705

BOLT

24

01643-32780

WASHER

25

707-36-20450

PISTON

26

707-44-20150

RING, PISTON\((K09)\)

27

707-39-20020

RING, WEAR\((K09)\)

28

707-44-20910

RING

29

07000-B5130

O-RING\((K09)\)

30

07001-05130

RING, BACK-UP\((K09)\)

31

01310-01232

SCREW

32

707-86-00450

TUBE

33

707-88-50880

BRACKET

34

707-88-26610

BAND

35

07372-21250

BOLT

36

01643-51232

WASHER

37

07372-21060

BOLT

38

01643-51032

WASHER
