Запчасти Komatsu PC700LC-8E0 ЦИЛИНДР СТРЕЛЫ, ПРАВ. (№-) ЦИЛИНДР СТРЕЛЫ

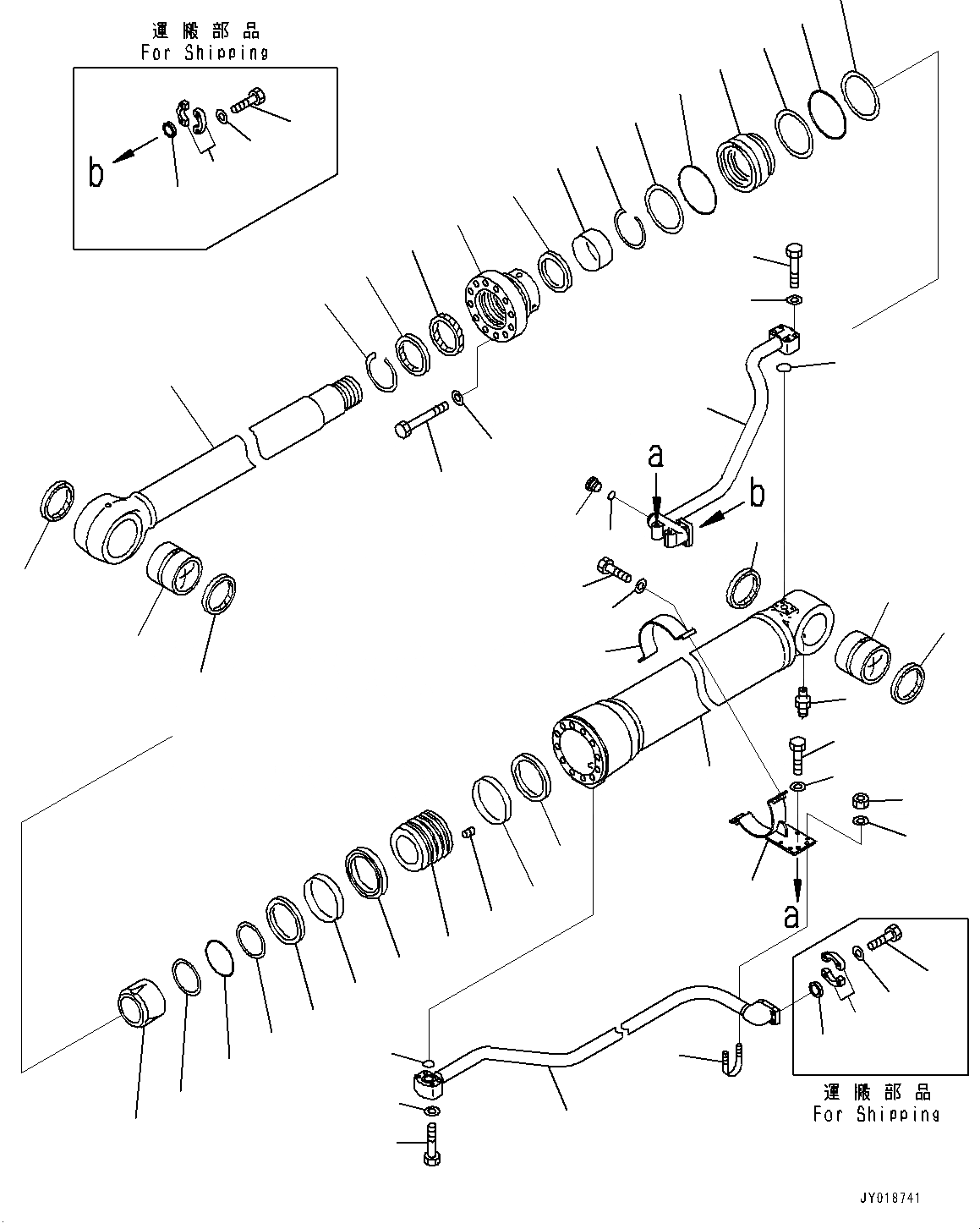

Схема запчастей Komatsu PC700LC-8E0 - ЦИЛИНДР СТРЕЛЫ, ПРАВ. (№-) ЦИЛИНДР СТРЕЛЫ
12
17
15
16
19
13
2
9
18
8
9
10
11
24
26
28
27
25
29
25
26
28
46
45
44
47
6
7
7
4
3
4
36
1
37
49
35
48
23
5
30
39
34
41
42
38
38
40
43
31
14
21
22
20
37
36
46
45
44
47
32
33

Артикул

Название

Примечание

Количество

|$0

707-01-0CA60

Boom Cylinder Assembly

1

721-13-18230

Cylinder

2

707-58-12660

Rod, Piston

3

707-76-11160

Bushing

4

07145-00110

Seal, Dust, (Kit : K08)

5

07020-00000

Fitting, Grease

6

707-76-12530

Bushing

7

07145-00125

Seal, Dust, (Kit : K08)

8

707-71-32900

Collar

9

707-35-91840

Ring, Back-up, (Kit : K08)

10

07000-15175

O-ring, (Kit : K08)

11

707-71-61330

Plunger

12

707-27-18930

Head, Cylinder

13

707-56-12740

Seal, Dust, (Kit : K08)

14

07179-13136

Ring, Snap

15

707-51-12030

Packing, Rod, (Kit : K08)

16

707-51-12650

Ring, Buffer, (Kit : K08)

17

707-52-90981

Bushing

18

07000-15175

O-ring, (Kit : K08)

19

707-35-91840

Ring, Back-up, (Kit : K08)

20

07179-13126

Ring, Snap

21

01011-82400

Bolt

22

707-88-75410

Washer

23

707-36-18520

Piston

24

707-44-18250

Ring, Piston, (Kit : K08)

25

707-39-18510

Ring, Wear, (Kit : K08)

26

707-44-18920

Ring

27

07000-B5110

O-ring, (Kit : K08)

28

07001-05110

Ring, Back-up, (Kit : K08)

29

01310-01225

Screw

30

707-86-13250

Tube

31

707-86-00960

Tube

32

707-87-14700

Plug

33

07002-63034

O-ring, (Kit : K08)

34

707-88-28240

Bracket

35

707-88-26120

Band

36

07372-21060

Bolt

37

01643-51032

Washer

38

07000-13035

O-ring, (Kit : K08)

39

01010-81025

Bolt

40

01643-31032

Washer

41

07283-33442

Clip, Pipe

42

01597-01009

Nut

43

01643-31032

Washer

44

07371-31049

Flange, Split

45

707-88-33040

Cap

46

07372-21035

Bolt

47

01643-51032

Washer

48

07372-21240

Bolt

49

01643-51232

Washer

Выбрано товаров: 50
