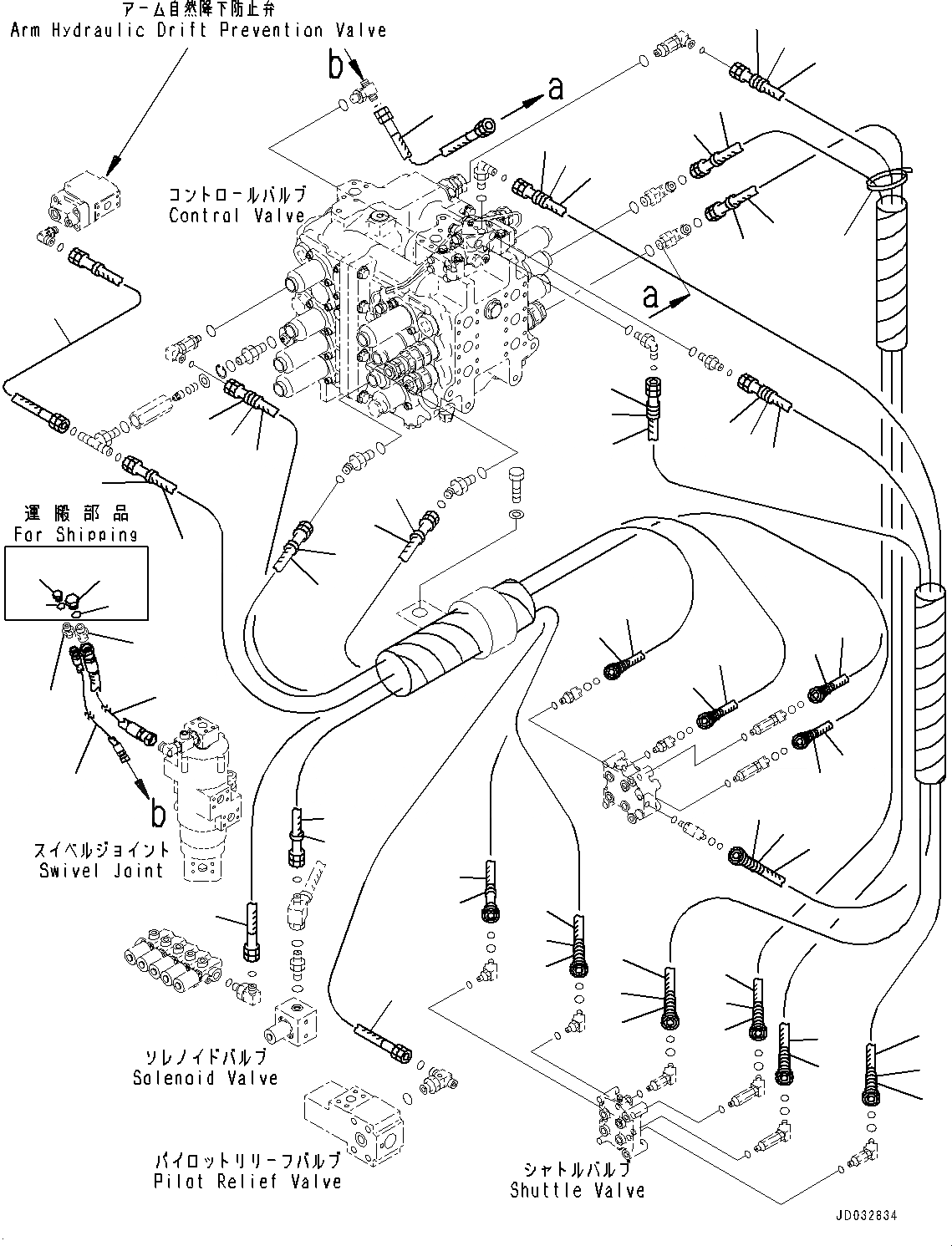

Запчасти Komatsu PC700LC-8E0 ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) ОСНОВН. ТРУБЫ, ШЛАНГИ (/) (№-) ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) ОСНОВН. ТРУБЫ, С PROVISION ДЛЯ -АКТУАТОР, PROVISION ДЛЯ МОЛОТА, ГИДРОМОЛОТ БЛОК ДЛЯ НИЗ. BACK

1

207-62-72620

Hose

2

21M-62-14570

Hose

3

21M-62-14580

Hose

4

20Y-62-22790

Band, Red

5

20Y-62-22810

Band, Yellow

6

20Y-62-22820

Band, Blue

7

20Y-62-22840

Band, Black

8

02760-00326

Hose, Face Seal Type

9

209-04-77630

Hose

10

17M-61-42570

Hose

11

21M-62-14880

Hose

12

20Y-62-22790

Band, Red

13

20Y-62-22810

Band, Yellow

14

20Y-62-22830

Band, White

15

20Y-62-22840

Band, Black

16

20Y-62-22850

Band, Green

17

209-64-16440

Hose

18

21M-62-14570

Hose

19

21M-62-14620

Hose

20

20Y-62-22820

Band, Blue

21

20Y-62-22830

Band, White

22

20Y-62-22860

Band, Brown

23

02760-00303

Hose, Face Seal Type

24

08034-20536

Band

25

02760-00305

Hose, Face Seal Type

26

209-64-16950

Hose Assembly

27

21M-62-32260

Hose Assembly

28

07376-70315

Plug

29

02896-11009

O-ring

30

07376-70522

Plug

31

02896-11015

O-ring

32

02781-00522

Union

|$32

02781-00522

Union

|$33

02781-00522

Union

33

02781-00315

Union

|$35

02781-00315

Union

|$36

02781-00315

Union
