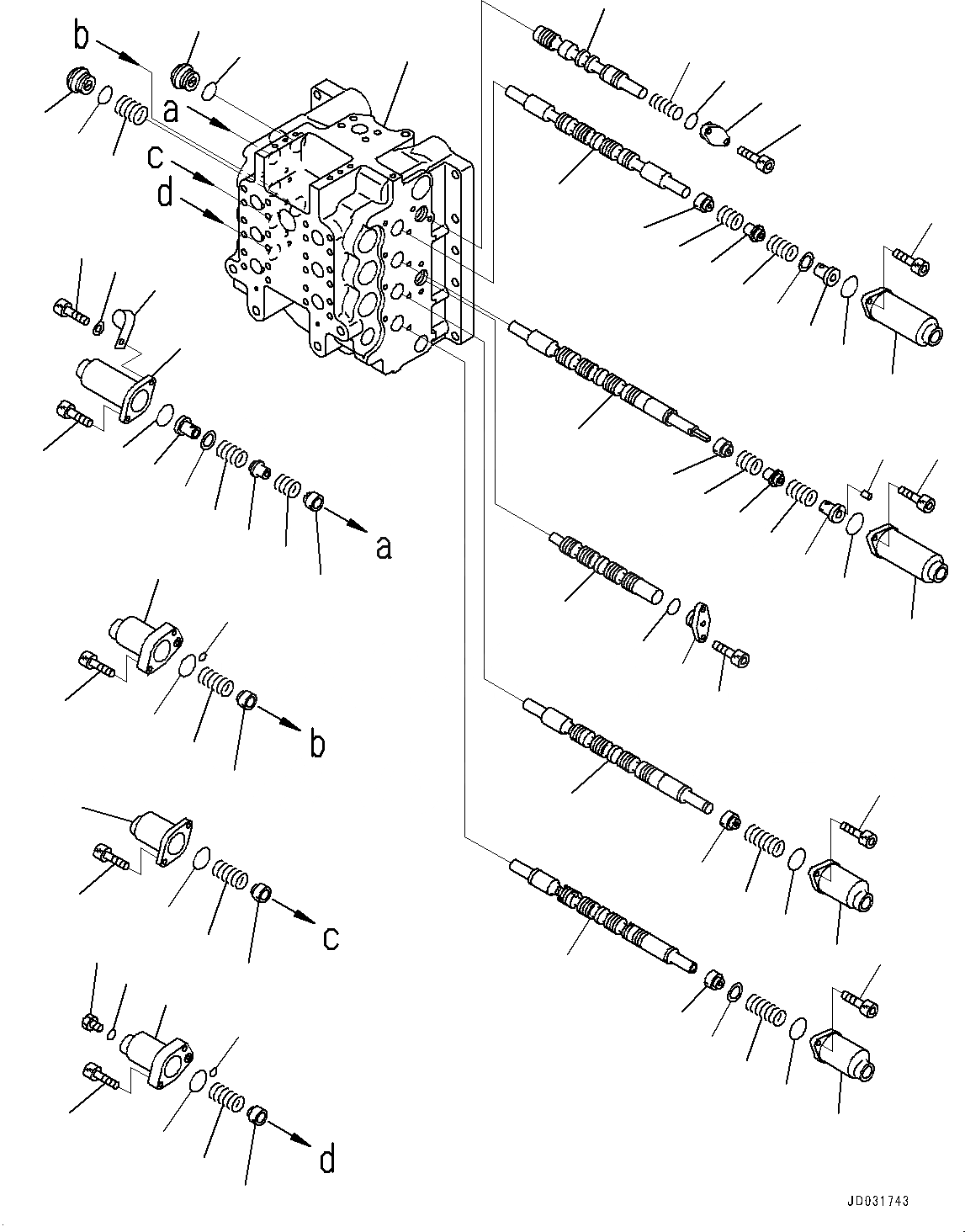

Запчасти Komatsu PC700LC-8E0 УПРАВЛЯЮЩ. КЛАПАН, 9-СЕКЦИОНН. (/8) (№-) УПРАВЛЯЮЩ. КЛАПАН

|$0

709-99-15300

Valve, Control

|$1

Body Group

1

Valve Body

2

Spool

3

Spool Subassembly

4

Spool Subassembly

5

Spool

6

Spool

7

Spool

8

08036-31210

Clip

9

01643-30823

Washer

10

01252-60825

Bolt, Hexagon Socket Head

11

709-94-92510

Spring

12

709-94-92520

Spring

13

709-94-92590

Spring

14

709-94-92530

Retainer

15

709-94-92540

Retainer

16

709-94-92770

Retainer

17

04022-04008

Pin, Dowel

18

709-94-91130

Retainer

19

709-94-92890

Retainer

20

709-94-91120

Spring

21

709-94-92940

Spring

22

709-94-92920

Spring

23

709-94-92550

Spacer, T=0.5mm

24

709-94-91760

Spacer, T=1.0mm

25

709-94-92610

Case

26

709-94-92560

Case

27

709-94-91210

Case

28

709-94-91220

Case

29

07430-71380

O-ring

30

07000-12010

O-ring

31

01252-60820

Bolt, Hexagon Socket Head

32

01252-60830

Bolt, Hexagon Socket Head

33

07040-12012

Plug

34

07002-12034

O-ring

35

709-94-92470

Spring

36

709-94-92690

Spring

37

709-94-91490

Plate

38

709-94-91140

Plate

39

07000-F2022

O-ring

40

01252-60820

Bolt, Hexagon Socket Head

41

709-74-92220

Plug

42

07002-13034

O-ring
