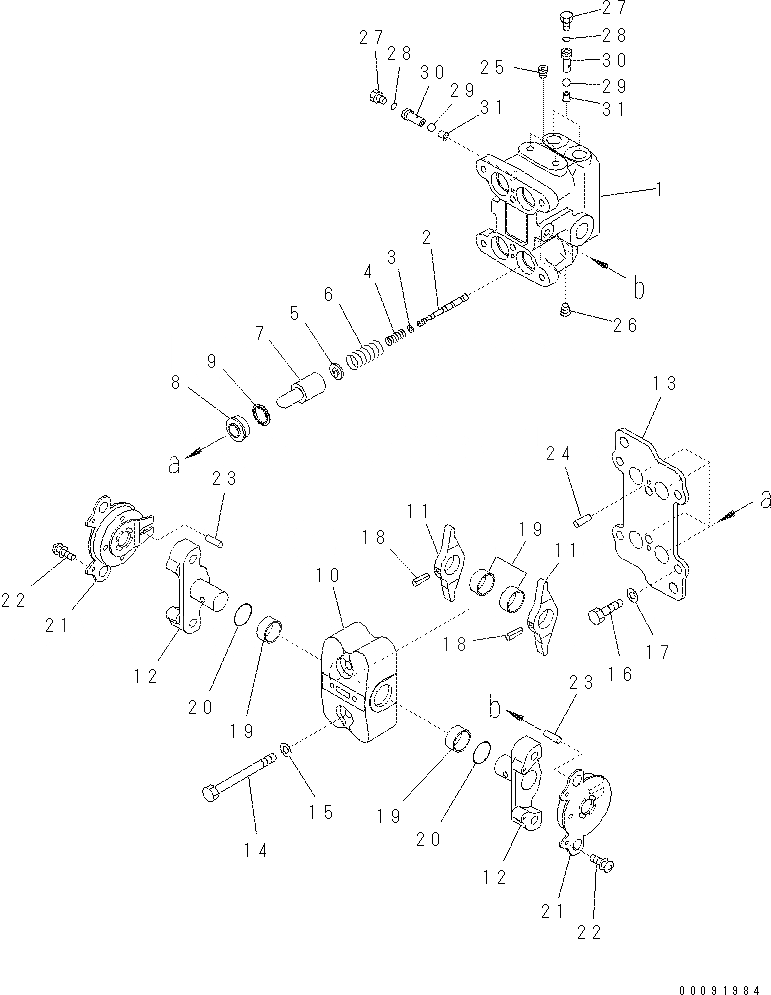

Запчасти Komatsu PC70-8 КЛАПАН PPC(ДЛЯ ХОДА) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

702-16-04271

PILOT VALVE

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1670-01A0 AND Y1670-02A0.

1

Ўо

BODY, VALVE

2

Ўо

VALVE

3

Ўо

SHIM, 0.30MM

4

Ўо

SPRING

5

Ўо

RETAINER

6

Ўо

SPRING

7

Ўо

PISTON

8

702-16-71150

SEAL

9

702-16-71160

SEAT

10

Ўо

CASE

11

Ўо

LEVER

12

Ўо

SHAFT

13

Ўо

PLATE

14

01010-80855

BOLT

15

01643-30823

WASHER

16

01010-80816

BOLT

17

702-16-54331

WASHER, 1.60MM

|$20

702-16-54341

WASHER, 1.30MM

|$21

702-16-54351

WASHER, 1.00MM

|$22

702-16-56380

WASHER, 1.90MM

|$23

702-16-56390

WASHER, 2.20MM

18

Ўо

PIN, SPRING

19

Ўо

BUSHING

20

07000-12018

O-RING

21

Ўо

DAMPER ASS'Y

22

01023-10306

SCREW

23

702-16-73650

PIN

24

04022-04016

PIN, DOWEL

25

Ўо

PLUG

26

Ўо

PLUG

27

07040-11209

PLUG

28

07002-11223

O-RING

29

Ўо

BALL

30

702-16-55940

PLUG

31

702-16-55950

SEAT
