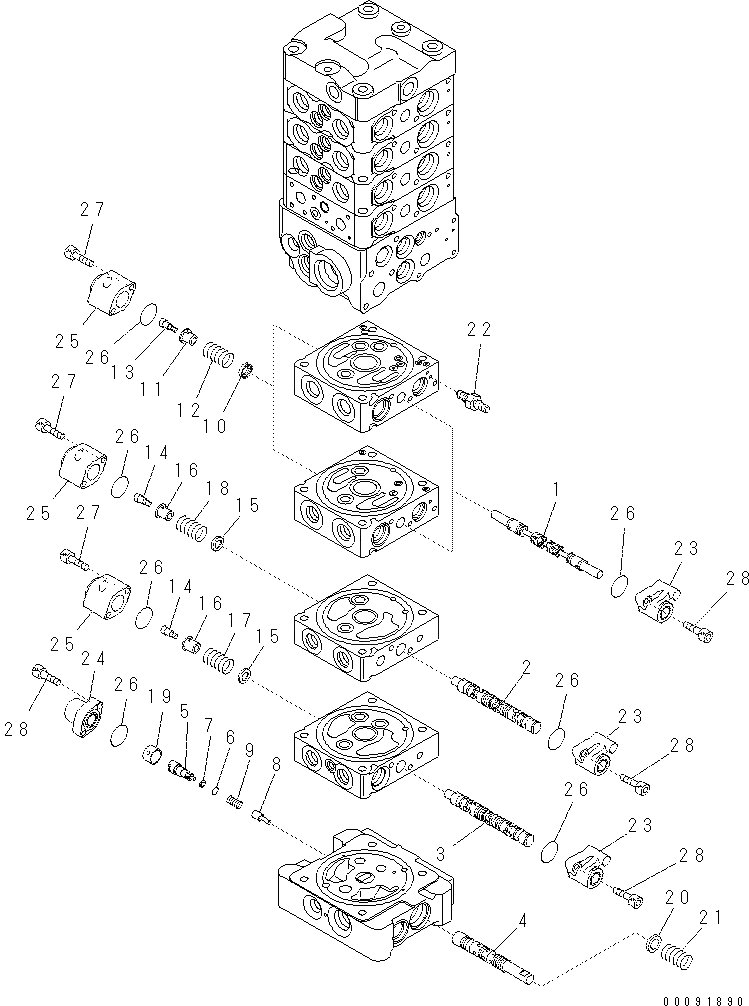

Запчасти Komatsu PC70-8 ОСНОВН. КЛАПАН (8-КЛАПАН) (8/) (НАВЕСН. ОБОРУД И С ОТВАЛ) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

ЈЁ723-28-51500Ј©

CONTROL VALVE

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1664-01A0 T0 Y1664-20A0.

|$3

Ўо

BODY GROUP

1

Ўо

SPOOL

2

Ўо

SPOOL

3

Ўо

SPOOL

4

Ўо

SPOOL

5

723-26-16470

PLUG

6

07000-11005

O-RING

7

07001-01005

RING

8

723-26-16520

VALVE

9

723-26-16530

SPRING

10

723-11-17330

RETAINER

11

723-11-17353

RETAINER

12

723-11-17341

SPRING

13

723-11-17361

BOLT

14

723-11-27910

BOLT

15

723-26-16560

RETAINER

16

723-26-16570

RETAINER

17

723-26-16540

SPRING

18

723-26-16551

SPRING

19

723-26-16480

RETAINER

20

723-26-16490

SPACER

21

723-26-14310

SPRING

22

723-11-29620

PLUG

23

723-11-37220

CASE, SPRING

24

723-11-17410

CASE, SPRING

25

723-11-27880

CASE, SPRING

26

722-12-19120

O-RING

27

01252-60640

BOLT

28

01252-60620

BOLT
