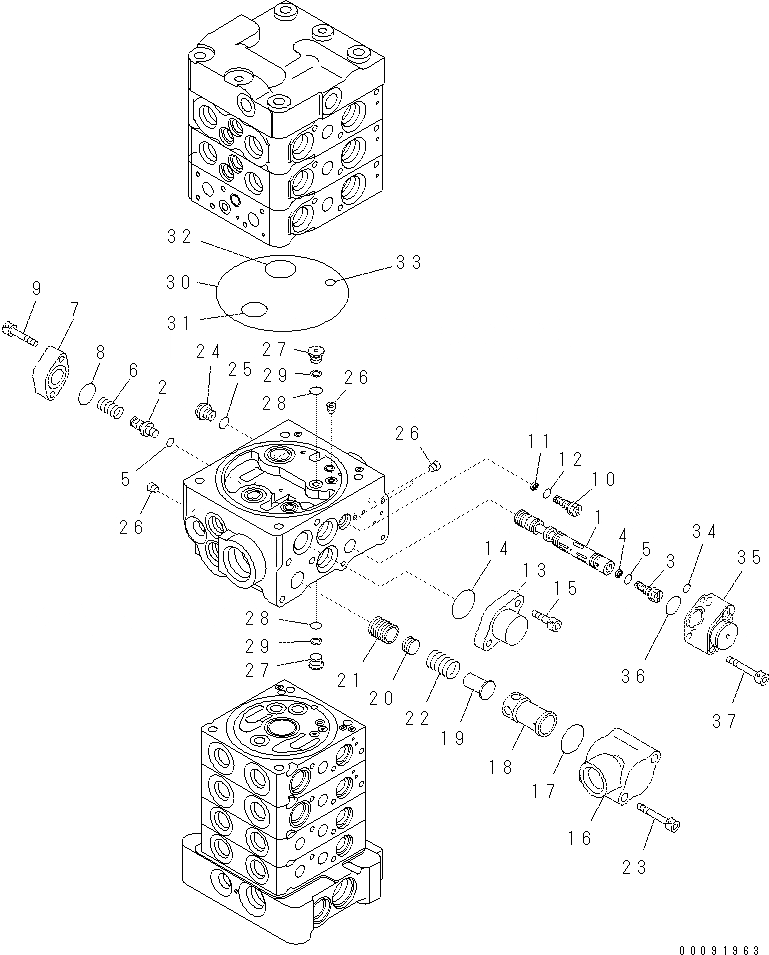

Запчасти Komatsu PC70-8 ОСНОВН. КЛАПАН (7-КЛАПАН) (/8) (С ОТВАЛ) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

723-27-51100

CONTROL VALVE

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-21A0 TO Y1662-38A0.

|$3

Ўо

BODY GROUP

1

Ўо

SPOOL

2

Ўо

PLUG

3

Ўо

ORIFICE

4

Ўо

RING

5

Ўо

O-RING

6

723-26-14650

SPRING

7

723-26-16940

FLANGE

8

722-12-19120

O-RING

9

01252-60640

BOLT

10

Ўо

ORIFICE

11

722-12-15160

RING

12

07002-10823

O-RING

13

723-26-16650

FLANGE

14

723-11-19110

O-RING

15

01252-60820

BOLT

16

723-26-16390

CASE

17

723-11-19110

O-RING

18

Ўо

SLEEVE

19

723-26-16420

RETAINER

20

Ўо

PISTON

21

Ўо

VALVE

22

723-26-16450

SPRING

23

01252-60855

BOLT

24

708-8E-16160

PLUG

25

07002-11023

O-RING

26

Ўо

PLUG

27

723-26-16460

PLUG

28

07000-11007

O-RING

29

07001-01007

RING, BACK-UP

30

07000-12120

O-RING

31

07000-12020

O-RING

32

723-26-15840

O-RING

33

07000-11008

O-RING

34

07000-11006

O-RING

35

723-26-16920

CASE, SPRING

36

722-12-19120

O-RING

37

01252-60640

BOLT
