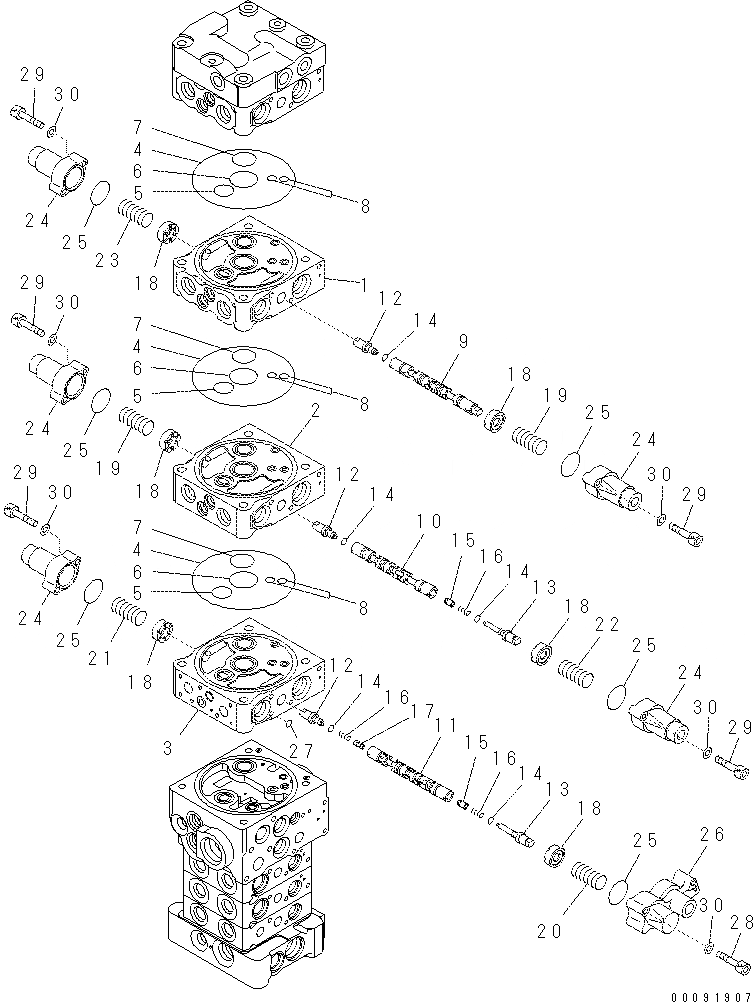

Запчасти Komatsu PC70-8 ОСНОВН. КЛАПАН (7-КЛАПАН) (/8) (НАВЕСН. ОБОРУД И БЕЗ ОТВАЛ) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

ЈЁ723-27-50900Ј©

CONTROL VALVE

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-18A0.

|$3

Ўо

BODY GROUP

1

Ўо

BLOCK, VALVE

2

Ўо

BLOCK, VALVE

3

Ўо

BLOCK, VALVE

4

07000-12120

O-RING

5

07000-12020

O-RING

6

723-26-15830

O-RING

7

723-26-15840

O-RING

8

07000-11008

O-RING

9

Ўо

SPOOL

10

Ўо

SPOOL

11

Ўо

SPOOL

12

Ўо

PLUG

13

Ўо

PLUG

14

Ўо

O-RING

15

Ўо

VALVE

16

Ўо

SPRING

17

Ўо

VALVE

18

723-26-15121

RETAINER

19

709-26-11450

SPRING

20

723-26-14490

SPRING

21

723-26-16621

SPRING

22

723-26-14510

SPRING

23

723-26-16621

SPRING

24

723-26-15110

CASE

25

575-41-17420

O-RING

26

723-26-17110

CASE, SPRING

27

702-21-54260

O-RING

28

01252-60635

BOLT

29

01252-60630

BOLT

30

01641-20608

WASHER
