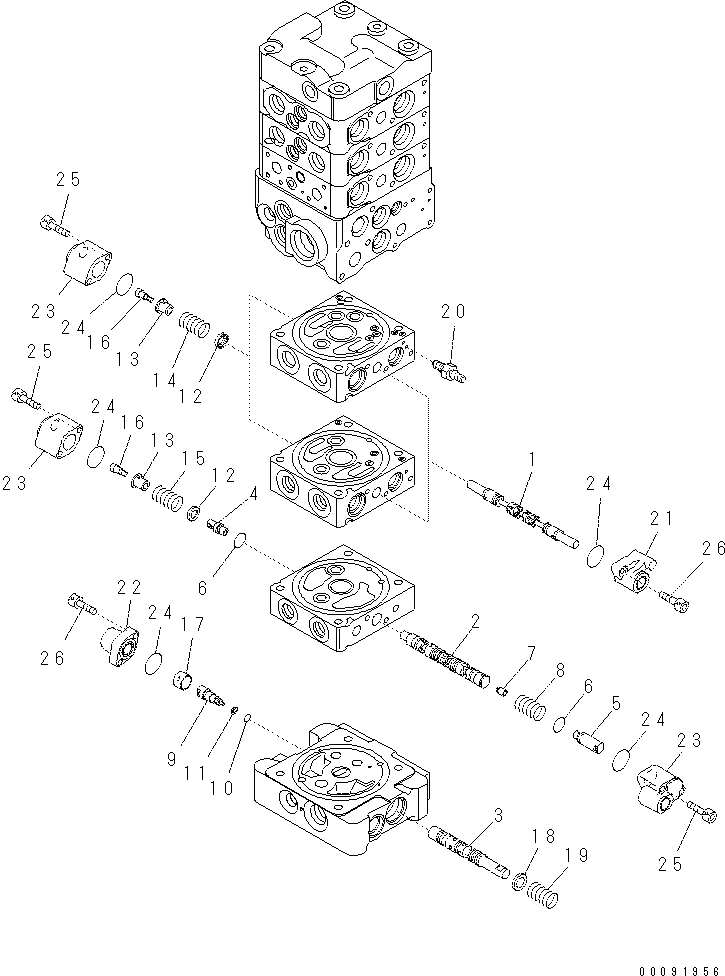

Запчасти Komatsu PC70-8 ОСНОВН. КЛАПАН (-КЛАПАН) (8/) (БЕЗ ОТВАЛ) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

723-27-50900

CONTROL VALVE

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 T0 Y1660-16A0.

|$3

Ўо

BODY GROUP

1

Ўо

SPOOL

2

Ўо

SPOOL

3

Ўо

SPOOL

4

Ўо

PLUG

5

Ўо

PLUG

6

Ўо

O-RING

7

Ўо

POPPET

8

723-11-17510

SPRING

9

723-26-16470

PLUG

10

07000-11005

O-RING

11

07001-01005

RING

12

723-11-17330

RETAINER

13

723-11-17353

RETAINER

14

723-11-17341

SPRING

15

723-11-38930

SPRING

16

723-11-17361

BOLT

17

723-26-16480

RETAINER

18

723-26-16490

SPACER

19

723-26-14310

SPRING

20

723-11-29620

PLUG

21

723-11-37220

CASE, SPRING

22

723-11-17410

CASE, SPRING

23

723-11-27880

CASE, SPRING

24

722-12-19120

O-RING

25

01252-60640

BOLT

26

01252-60620

BOLT
