Запчасти Komatsu PC70-8 ХОД MTOR (/) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

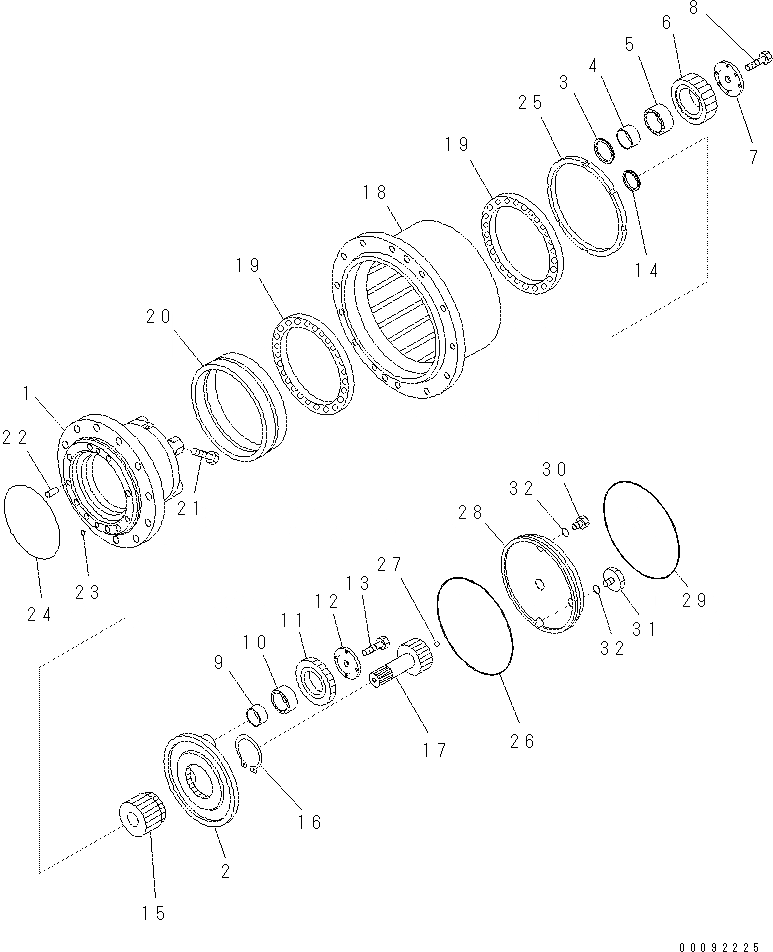

Схема запчастей Komatsu PC70-8 - ХОД MTOR (/) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

Артикул

Название

Примечание

Количество

|$1

201-60-81301

MOTOR ASS'Y

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A0, 02A0 AND 03A0.

|$3

TZ131D1000-00

FINAL ASS'Y

1

TZ110D1002-00

SPINDLE

2

TZ111D1003-00

CARRIER

3

TZ110D1011-00

WASHER, THRUST

4

TZ110D1030-00

BEARING

5

TZ110D1028-00

BEARING

6

TZ110D1007-00

GEAR

7

TZ110D1010-00

WASHER, THRUST

8

TZ1180102010L

BOLT

9

TZ110D1029-00

BEARING

10

TZ110D1027-00

BEARING

11

TZ110D1005-00

GEAR

12

TZ440D1012-00

WASHER, THRUST

13

TZ1180082010L2

BOLT

14

TZ400G1009-00

COLLAR, THRUST

15

TZ110D1006-00

GEAR

16

04046-04518

RING

17

TZ110D1004-00

GEAR

18

TZ110D1001-00

HUB

19

TZ110D1024-00

BEARING

20

TZ192-230-30BH

FLOATING SEAL ASS'Y\((KIT)\)

21

TZJB1177M812-B

BOLT

22

TZ263B2077-01

PIN

23

07000-11007

O-RING(KIT)

24

TZJW1516-G37-7

O-RING(KIT)

25

TZ110D1022-00

NUT

26

07000-05230

O-RING(KIT)

27

04260-00952

BALL

28

TZ110D1013-00

COVER

29

TZ810B1018-00

RING

30

TZ810B2021-00

PLUG

31

TZ410D1033-01

PLUG

32

07000-12014

O-RING(KIT)

|$36

SERVICE KIT

K

TZ131D9000-00

SEAL KIT, TRAVEL MOTOR

Выбрано товаров: 37
