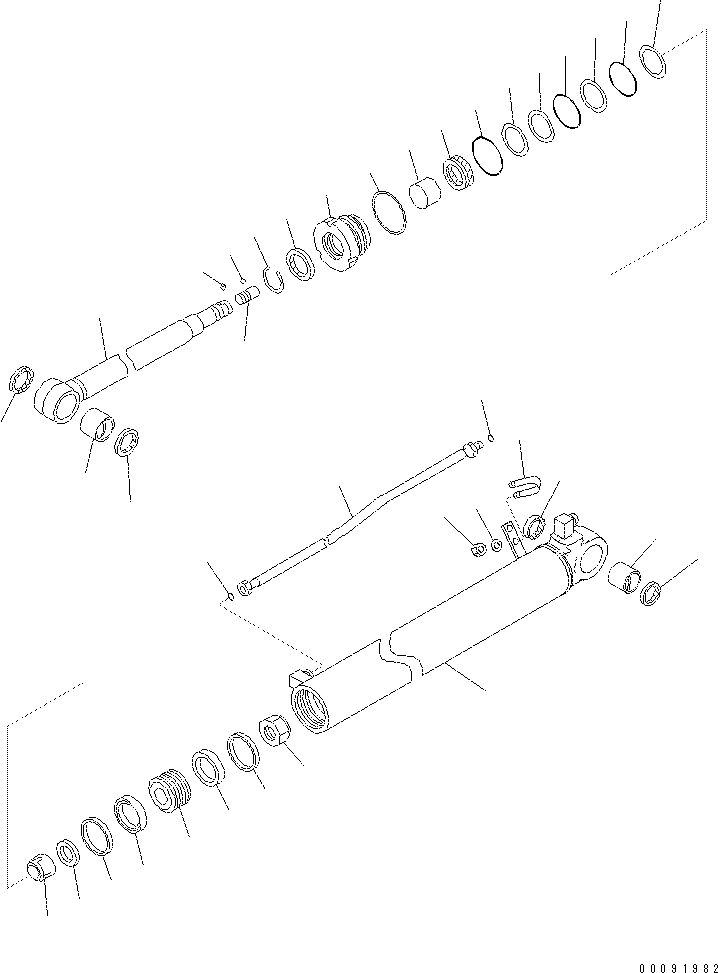

Запчасти Komatsu PC70-8 ЦИЛИНДР РУКОЯТИ(ВНУТР. ЧАСТИ) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

G1

Ўт707-00-XT271

CYLINDER GROUP, (NATURAL YELLOW)

|$2

Ўт707-00-XJ891

CYLINDER GROUP, (VIOLET BLUE)

|$3

====================

|$4

707-00-0J891

CYLINDER ASS'Y, ARM

1

707-11-10J10

CYLINDER, ARM

2

07143-10506

BUSHING

3

07145-00055

SEAL, DUST (KIT)

4

707-29-10871

HEAD, CYLINDER

5

707-52-90351

BUSHING

6

707-51-60860

PACKING, ROD (KIT)

7

707-56-60740

SEAL, DUST (KIT)

8

07179-12074

RING, SNAP

9

07000-B2095

O-RING (KIT)

10

707-51-60650

RING, BACK-UP (KIT)

11

07000-B2100

O-RING (KIT)

12

07000-B2095

O-RING (KIT)

13

07146-02096

RING, BACK-UP (KIT)

14

721-58-60810

ROD, PISTON

15

07143-10606

BUSHING

16

07145-00060

SEAL, DUST (KIT)

17

707-71-70950

PLUNGER

18

707-36-10832

PISTON

19

707-44-10150

RING, PISTON (KIT)

20

07156-01012

RING, WEAR (KIT)

21

707-71-60100

PLUNGER

22

04260-00635

BALL

23

707-71-91280

CAP

24

707-67-45020

NUT

25

02896-61015

O-RING (KIT)

26

707-45-10920

O-RING, LOCK

27

707-86-55960

TUBE

28

07283-32236

CLIP

29

01597-01009

NUT

30

01643-31032

WASHER

31

707-44-10930

RING

32

707-40-10020

RETAINER

|$37

====================

|$38

SERVICE KIT

K

707-99-35350

SERVICE KIT, ARM CYLINDER
