Запчасти Komatsu PC70-7E ХОД MTOR (/)(№-877) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

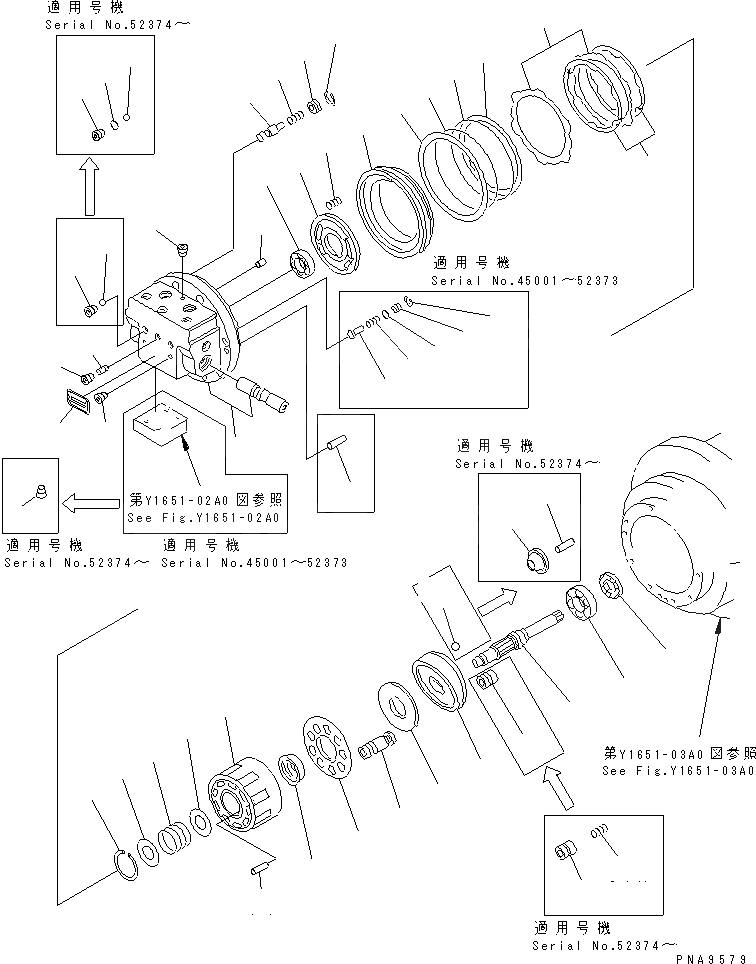

Схема запчастей Komatsu PC70-7E - ХОД MTOR (/)(№-877) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
3
3
4
1
4A
5
5
5A
6
7
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31A
32
32
32A
33
34
35
36
37
38
39
40
41
42

Артикул

Название

Примечание

Количество

|1

201-60-73101

TRAVEL MOTOR ASS'Y

|1

201-60-73100

TRAVEL MOTOR ASS'Y

|1

201-60-71100

TRAVEL MOTOR ASS'Y

|1

TZ979B200000FG

MOTOR ASS'Y

|1

TZ971B200000FG

MOTOR SUB ASS'Y

|1

TZ922B200000JD

MOTOR SUB ASS'Y

1

TZ979B210100-G

FLANGE KIT,REAR

|1

TZ971B210100-G

FLANGE KIT,REAR

|1

TZ916B210101-C

FLANGE KIT,REAR

2

TZGDL1-16-S

PLUG

|2

TZMB700-060

PLUG

3

TZGM1-8

PLUG

4

TZ121F2070-00

ORIFICE

1

TZ971B210100-G

FLANGE KIT,REAR

4A

TZ976B2079-00

FILTER

|4A

TZ263B2079-01

FILTER

5

TZ512B2021-00

PLUG

|5

TZGM1-4

PLUG

5A

07000-12011

O-RING (KIT)

6

TZ850A0006-00

PLATE¤ NAME

7

04260-00793

BALL

8

TZ920B2004-00

BLOCK,CYLINDER

|8

TZ810B2004-00

BLOCK,CYLINDER

9

TZ810B2105-00

PISTON KIT (9 PIECES)

10

TZ844B200300-F

PLATE,SWASH

|10

TZ910B200300-J

PLATE,SWASH

11

TZ970B2032-00

PLATE,THRUST

|11

TZ800B2032-00

PLATE,THRUST

12

TZ920B2007-00

PLATE,RETAINER

|12

TZ810B2007-00

PLATE,RETAINER

13

TZ810B2008-00

BOWL,THRUST

14

TZJB150625-238

PIN

15

TZ810B2014-00

SPRING

16

TZ880A2010-00

WASHER

17

TZTH-R-42

RING,SNAP

|17

TZIRTW-42

RING,SNAP

18

TZ800A2016-00

PLATE

19

TZ800A2015-00

PLATE

20

TZ266B2012-00

PISTON

|20

TZ880A2012-00

PISTON

21

TZSUN-2BG140

RING,BACK-UP (KIT)

22

TZ266B2039-00

O-RING (KIT)

|22

07000-12140

O-RING (KIT)

23

TZ266B2035-00

O-RING (KIT)

|23

TZJW1516-G28-9

O-RING (KIT)

24

TZSUN-3WG28

RING,BACK-UP (KIT)

25

TZ860A2009-01

PLATE,TIMING

26

06000-06203

BEARING

27

TZ970B2013-00

SPRING

|27

TZ880A2013-00

SPRING

28

TZ910B2002-00

SHAFT

29

TZ880A2029-00

BEARING

30

TZ15Z-22-42-10

SEAL,OIL (KIT)

31

TZ844B2070-01

PISTON ASS'Y

|31

TZ800B2070-01

PISTON ASS'Y

31A

TZ844B2085-00

SPRING

32

TZ263B2076-02

PIVOT

|32

TZJB1501-22

BALL

32A

TZ263B2077-01

PIN

33

TZJB1354-4-10

PIN

34

TZ922A2019-00

VALVE

35

TZ922A2020-01

SPRING

36

07000-11009

O-RING (KIT)

37

TZ860A2018-00

SEAT,VALVE

38

TZ100A2022-00

RING

39

TZ200B2073-00

VALVE

40

TZ300B2043-01

SPRING

41

TZ300B2039-00

STOPPER

42

TZ300B2042-00

RING

K

TZ971B9010-00

SEAL KIT,TRAVEL MOTOR

|K

TZ922B9000-00

SEAL KIT,TRAVEL MOTOR

Выбрано товаров: 71
