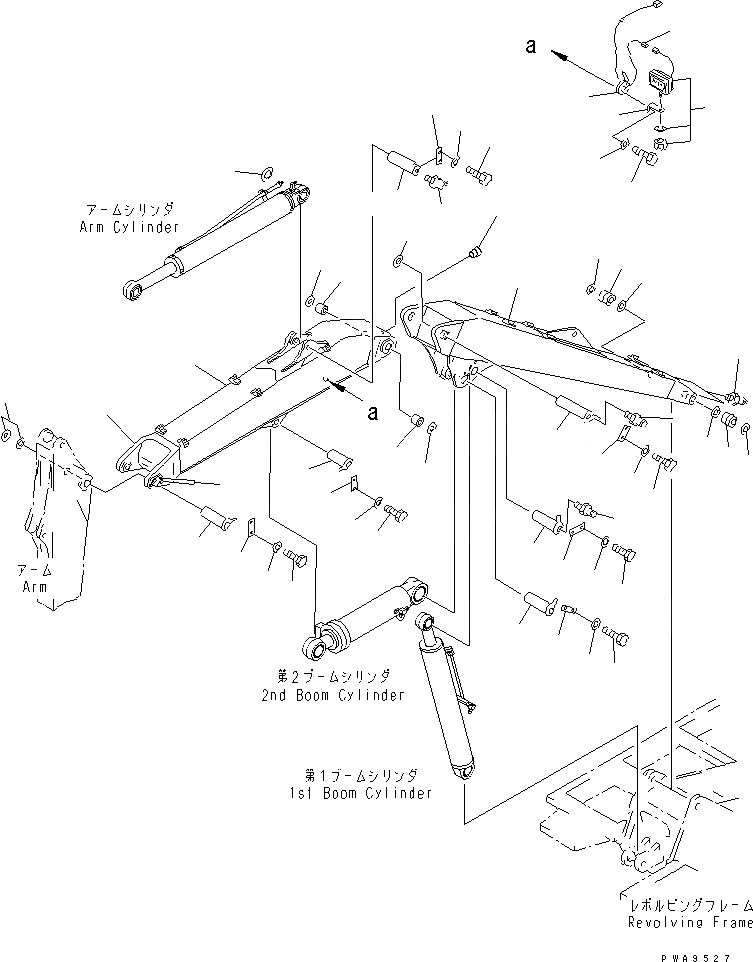

Запчасти Komatsu PC70-7E-B 2-СЕКЦИОНН. СТРЕЛА (BM¤ РАБОЧ. ОСВЕЩЕНИЕ И ПАЛЕЦ) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
|1
201-946-0050
BOOM ASS'Y,1ST
|1
201-946-0011
BOOM ASS'Y,1ST
|1
201-946-0010
BOOM ASS'Y,1ST
1
BOOM,1ST
|1
BOOM,1ST
|1
BOOM,1ST
2
201-70-71230
BUSHING
3
07145-00065
SEAL,DUST
4
07020-00675
FITTING,GREASE
5
07145-00065
SEAL,DUST
|6
201-946-0022
BOOM ASS'Y,2ND
|6
201-946-0021
BOOM ASS'Y,2ND
|6
201-946-0020
BOOM ASS'Y,2ND
6
BOOM,2ND
|6
BOOM,2ND
|6
BOOM,2ND
|7
201-946-0030
BRACKET ASS'Y (WELDED)
7
BRACKET (WELDED)
8
203-46-41130
SEAT (WELDED)
9
20X-70-32120
BUSHING
9A
07043-00108
PLUG
10
07145-00065
SEAL,DUST
11
201-06-71280
WORK LAMP ASS'Y
|11
421-06-23330
BULB¤ 70W
12
203-06-56410
BRACKET
13
01010-81225
BOLT
14
01643-31232
WASHER
15
201-946-7510
WIRING HARNESS
16
203-06-56570
BAND
17
201-946-7420
PIN
18
203-46-56270
PLATE
19
01010-81230
BOLT
20
01643-31232
WASHER
21
07020-00000
FITTING,GREASE
22
201-946-2130
SHAFT
23
203-46-56270
PLATE
24
01010-81230
BOLT
25
01643-31232
WASHER
26
07020-00000
FITTING,GREASE
27
21Y-70-14710
SPACER¤ 1.0MM
|27
202-70-48460
SPACER¤ 1.0MM
28
201-946-7410
PIN
29
203-46-56270
PLATE
30
01010-81230
BOLT
31
01643-31232
WASHER
32
21K-70-21170
PIN
33
203-46-56270
PLATE
34
01010-81230
BOLT
35
01643-31232
WASHER
36
20X-70-21230
SHAFT
37
203-46-56270
PLATE
38
01010-81230
BOLT
39
01643-31232
WASHER
40
202-70-11640
SPACER¤ 1.0MM
|40
203-70-34260
SPACER¤ 0.5MM
41
201-70-71250
PIN
42
04082-00212
LOCK
43
01010-81230
BOLT
44
01643-31232
WASHER
45
201-70-71280
SPACER¤ 1.0MM
46
07020-00675
FITTING,GREASE
Выбрано товаров: 61
