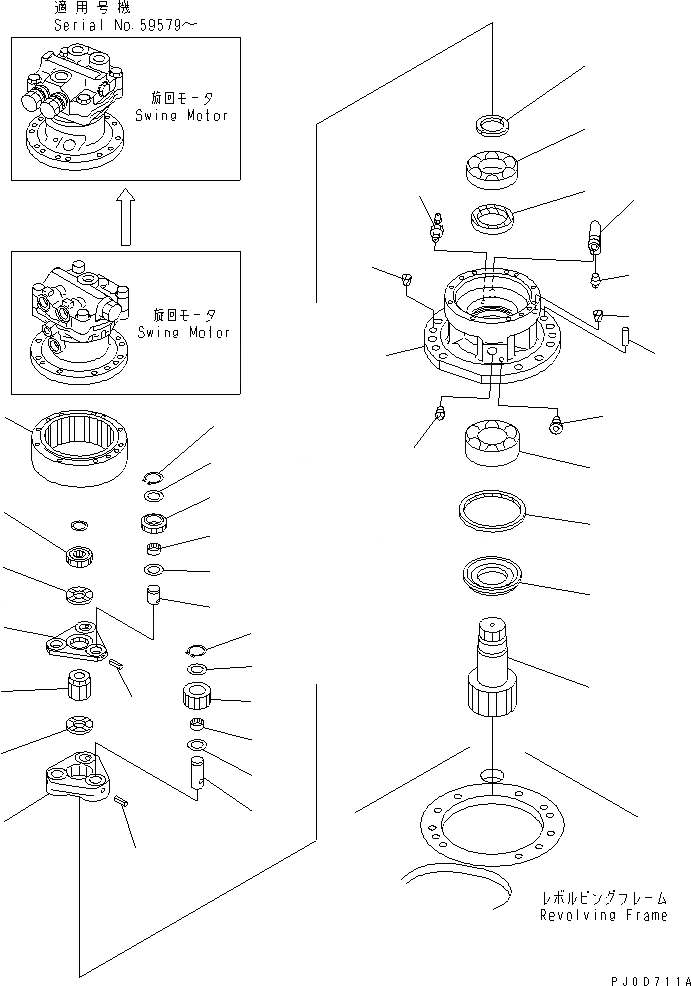

Запчасти Komatsu PC70-7E-B МЕХАНИЗМ ПОВОРОТА (MACHINERY) ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

|1

201-26-00130

SWING MACHINERY A.

|1

201-26-00060

SWING MACHINERY A.

|1

201-26-00040

SWING MACHINERY A.

1

201-26-71113

CASE

|1

201-26-71112

CASE

|1

201-26-71111

CASE

2

201-26-71140

SHAFT

3

201-26-71261

PLATE

|3

201-26-71260

PLATE

4

201-26-71210

BEARING

5

07012-00065

SEAL,OIL

6

201-26-62320

BEARING

7

201-26-71250

SPACER

8

07145-00125

SEAL,OIL

9

07020-00900

FITTING,GREASE

10

21W-26-41310

PIPE

|10

201-26-62420

PIPE

11

07042-30312

PLUG

12

07029-00000

VALVE

13

07042-00415

PLUG

14

201-26-71130

CARRIER

15

201-26-71230

SHAFT

16

20S-26-71250

PIN

17

201-26-71180

GEAR

18

201-26-71290

BEARING

19

201-26-71270

WASHER,THRUST

20

04064-02512

RING,SNAP

21

201-26-71240

WASHER,THRUST

22

201-26-71121

CARRIER

|22

201-26-71120

CARRIER

23

201-26-71220

SHAFT

24

20S-26-71250

PIN

25

201-26-71160

GEAR

26

424-15-12580

BEARING

27

201-26-71270

WASHER,THRUST

28

04064-02512

RING,SNAP

29

201-26-71240

WASHER,THRUST

30

201-26-71150

GEAR

31

201-26-71171

GEAR

|31

201-26-71170

GEAR

32

201-26-71190

GEAR,RING

33

07049-01620

PLUG

34

07049-02025

PLUG

|34

07049-02025

PLUG

|34

07049-02025

PLUG

35

04020-01638

PIN
