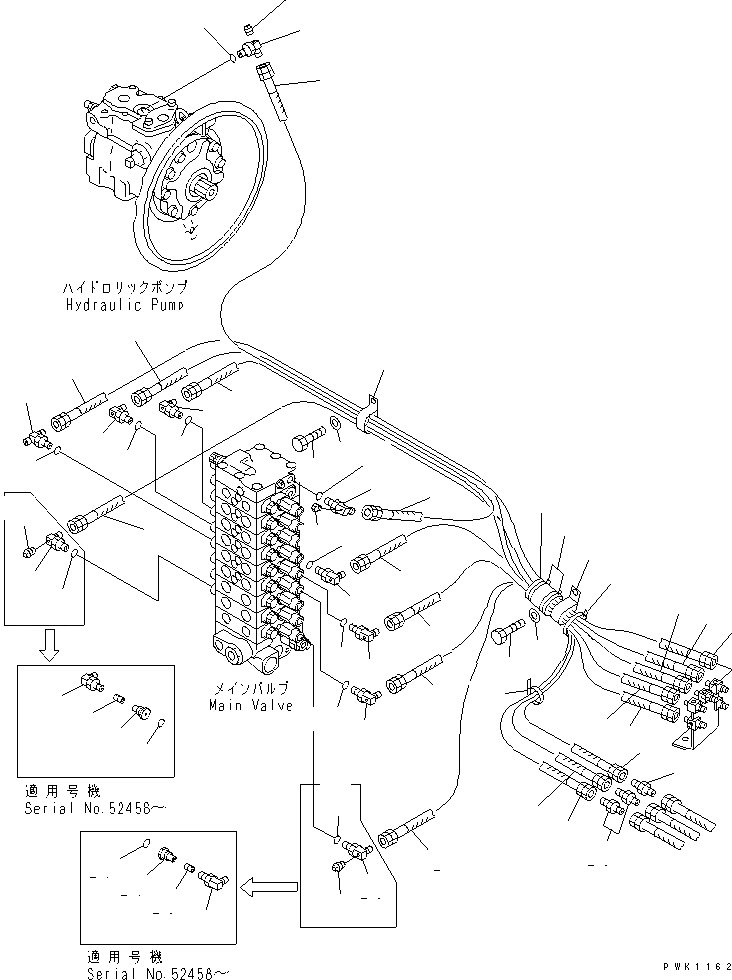

Запчасти Komatsu PC70-7 P.P.C. ОСНОВН. ЛИНИЯ(№7-8) ГИДРАВЛИКА

1

201-62-78380

HOSE¤ 1400MM,YELLOW

|1

20T-970-8270

HOSE¤ 1350MM,YELLOW

2

20S-62-83120

HOSE¤ 1100MM,WHITE

|2

201-62-74610

HOSE¤ 1100MM,WHITE

3

20S-62-83120

HOSE¤ 1100MM,BLACK

|3

201-62-74610

HOSE¤ 1100MM,BLACK

4

21W-62-32210

HOSE¤ 1500MM,BROWN

|4

201-62-74640

HOSE¤ 1500MM,BROWN

5

20S-62-83120

HOSE¤ 1100MM,GREEN

|5

201-62-74610

HOSE¤ 1100MM,GREEN

6

201-62-78380

HOSE¤ 1400MM,ORANGE

|6

20T-970-8270

HOSE¤ 1350MM,ORANGE

7

201-62-78380

HOSE¤ 1400MM,RED

|7

20T-970-8270

HOSE¤ 1350MM,RED

8

20S-62-83120

HOSE¤ 1100MM,BLUE

|8

201-62-74610

HOSE¤ 1100MM,BLUE

9

201-62-74571

HOSE¤ 1600MM

10

201-62-71891

ELBOW

11

201-62-75240

ELBOW

12

07002-11423

O-RING

13

07042-30108

PLUG

14

207-62-33690

CLIP

|14

203-62-63271

CLIP

15

01010-81025

BOLT

16

01643-31032

WASHER

17

21T-06-11950

CLIP

18

01010-81025

BOLT

19

01643-31032

WASHER

20

08034-00536

BAND

|21

20T-60-82300

VALVE ASS'Y

|21

201-62-75200

VALVE ASS'Y

|21

201-62-74980

ELBOW

21

21Y-62-11590

PLUG

22

20T-60-82310

ELBOW

|22

201-62-75260

CLIP

23

20T-60-82320

POPPET

24

07042-30108

PLUG

25

07235-10210

ELBOW

|25

21U-62-24110

ELBOW

26

208-26-11611

TEE

|26

201-62-74670

TEE

27

07002-11423

O-RING

28

203-916-5630

CONNECTOR

|28

201-62-74420

CONNECTOR

29

203-62-41150

COVER

30

08034-00823

BAND
