Запчасти Komatsu PC70-7 MULTIPLE PATTERN WAY (ШЛАНГИ И ПЛАСТИНА)(№-) ГИДРАВЛИКА

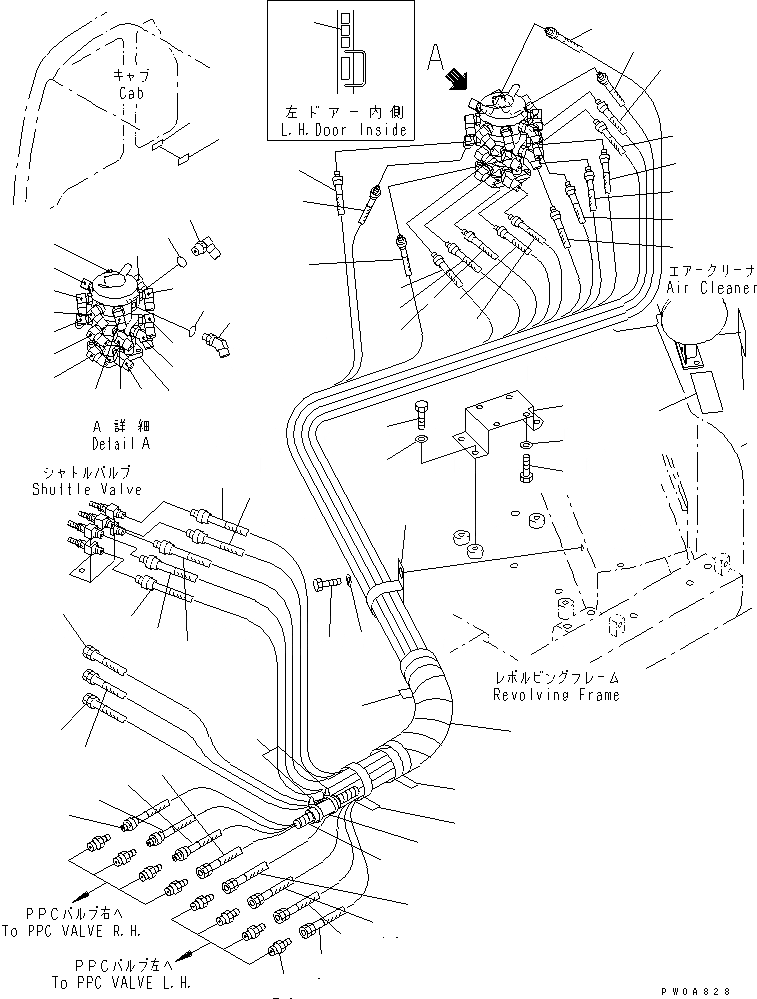

Схема запчастей Komatsu PC70-7 - MULTIPLE PATTERN WAY (ШЛАНГИ И ПЛАСТИНА)(№-) ГИДРАВЛИКА
1
2
2
2
2
2
2
2
2
2
2
2
3
4
4
4
4
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41

Артикул

Название

Примечание

Количество

1

20T-62-76302

VALVE ASS'Y,MULTIPLE PATTERN

|1

20T-62-76301

VALVE ASS'Y,MULTIPLE PATTERN

2

201-62-75420

ELBOW

3

07002-11423

O-RING

4

20X-62-47450

ELBOW

5

07002-11423

O-RING

|6

201-62-75890

HOSE ASS'Y

6

201-62-73760

HOSE¤ 630MM,BROWN-YELLOW

|6

20U-62-22190

O-RING

|7

201-62-75910

HOSE ASS'Y

7

201-62-73840

HOSE¤ 535MM,BLACK-YELLOW

|7

20U-62-22190

O-RING

|8

201-62-75920

HOSE ASS'Y

8

201-62-73870

HOSE¤ 635MM,BLUE-YELLOW

|8

20U-62-22190

O-RING

|9

201-62-75930

HOSE ASS'Y

9

201-62-73830

HOSE¤ 550MM,RED-YELLOW

|9

20U-62-22190

O-RING

10

201-62-73880

HOSE¤ 665MM,YELLOW

|10

20U-62-22190

O-RING

11

201-62-73890

HOSE¤ 435MM,ORANGE

|11

20U-62-22190

O-RING

|12

201-62-75940

HOSE ASS'Y

12

201-62-73820

HOSE¤ 580MM,YELLOW-YELLOW

|12

20U-62-22190

O-RING

|13

201-62-75950

HOSE ASS'Y

13

201-62-73780

HOSE¤ 725MM,RED

|13

20U-62-22190

O-RING

|14

201-62-75950

HOSE ASS'Y

14

201-62-73780

HOSE¤ 725MM,BLACK

|14

20U-62-22190

O-RING

|15

201-62-75960

HOSE ASS'Y

15

201-62-73770

HOSE¤ 1010MM,BLUE

|15

20U-62-22190

O-RING

|16

201-62-75970

HOSE ASS'Y

16

201-62-73790

HOSE¤ 430MM,WHITE-YELLOW

|16

20U-62-22190

O-RING

|17

201-62-75980

HOSE ASS'Y

17

201-62-73810

HOSE¤ 445MM,ORANGE-YELLOW

|17

20U-62-22190

O-RING

|18

201-62-75990

HOSE ASS'Y

18

20T-62-84280

HOSE¤ 500MM,GREEN-YELLOW

|18

20U-62-22190

O-RING

19

201-62-73840

HOSE¤ 535MM,BROWN

|19

20U-62-22190

O-RING

20

201-62-73850

HOSE¤ 515MM,WHITE

|20

20U-62-22190

O-RING

21

201-62-73860

HOSE¤ 615MM,GREEN

|21

20U-62-22190

O-RING

22

08034-00536

BAND

23

201-62-73470

BRACKET

24

01010-81025

BOLT

25

01643-31032

WASHER

26

207-62-33690

CLIP

27

01010-81025

BOLT

28

01643-31032

WASHER

29

21Y-62-13340

JOINT

30

08210-02903

SPIRAL TUBE

31

08034-00834

BAND

32

20U-62-26170

SEAT

33

08034-00823

BAND

34

08210-01202

SPIRAL TUBE

|34

08210-00602

SPIRAL TUBE

35

01010-81025

BOLT

36

01643-31032

WASHER

37

09822-A1110

PLATE¤ OPERATING,JIS AND OLD KOMATSU PATTERN

|37

09822-A1120

PLATE¤ OPERATING,OLD MITSUBISHI AND OLD SINKOU

38

09822-00010

PLATE¤ SAFETY,MULTIPLE PATTERN

39

09822-00020

CASE¤ PLATE

40

203-00-61710

PLATE¤ SAFETY,MULTIPLE PATTERN VALVE

41

20U-98-31160

PLATE,SHIFT PATTERN

Выбрано товаров: 71
