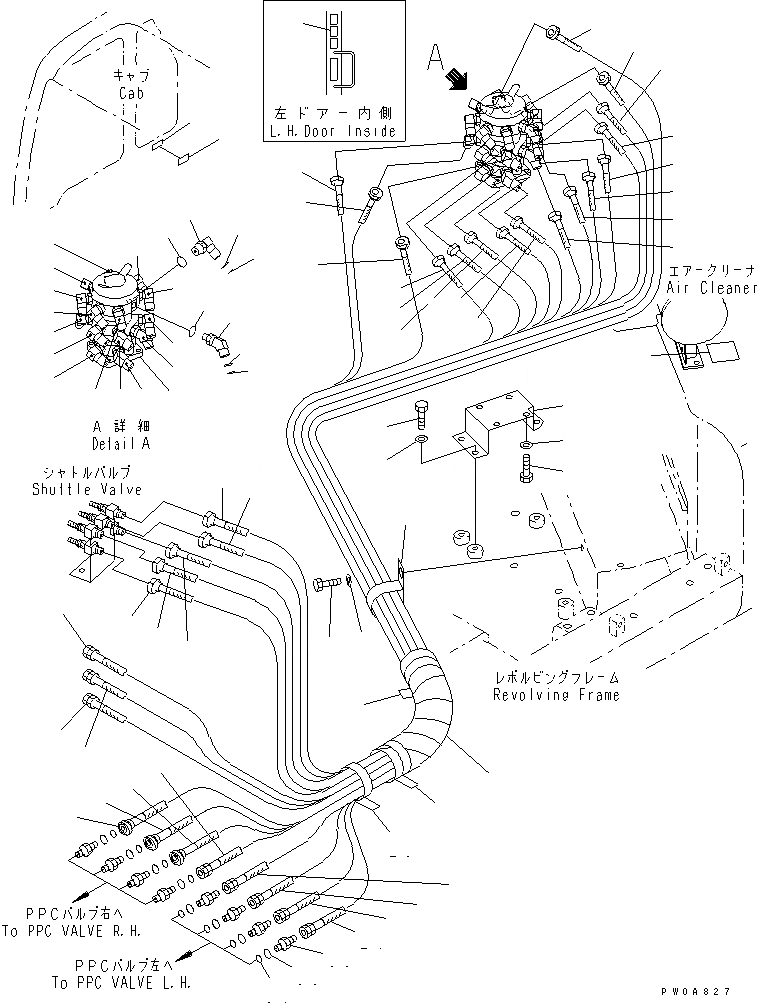

Запчасти Komatsu PC70-7 MULTIPLE PATTERN WAY (ШЛАНГИ И ПЛАСТИНА)(№-9) ГИДРАВЛИКА

1

20T-62-76301

VALVE ASS'Y,MULTIPLE PATTERN

|1

20T-62-76300

VALVE ASS'Y,MULTIPLE PATTERN

2

20Y-62-22271

ELBOW

3

201-60-11390

O-RING

4

20Y-62-19560

O-RING

5

07002-11423

O-RING

6

20Y-62-25720

ELBOW

7

201-60-11390

O-RING

8

20Y-62-19560

O-RING

9

07002-11423

O-RING

10

20Y-62-22771

HOSE¤ 700MM,RED

11

20Y-62-22771

HOSE¤ 700MM,BLACK

12

201-62-78260

HOSE¤ 500MM,RED-YELLOW

13

201-62-78260

HOSE¤ 500MM,BLACK-YELLOW

14

201-62-78260

HOSE¤ 500MM,BROWN

15

201-62-78260

HOSE¤ 500MM,WHITE

16

201-62-78270

HOSE¤ 600MM,BLUE-YELLOW

17

201-62-78270

HOSE¤ 600MM,GREEN

18

21J-62-12370

HOSE¤ 1000MM,BLUE

19

201-62-78280

HOSE¤ 650MM,YELLOW

20

201-62-78240

HOSE¤ 400MM,ORANGE-YELLOW

21

201-62-78240

HOSE¤ 400MM,WHITE-YELLOW

22

201-62-78250

HOSE¤ 550MM,YELLOW-YELLOW

23

201-62-78480

HOSE¤ 420MM,ORANGE

24

21J-62-12690

HOSE¤ 600MM,BROWN-YELLOW

25

20Y-62-22661

HOSE¤ 470MM,GREEN-YELLOW

26

08034-00536

BAND

27

201-62-73470

BRACKET

28

01010-81025

BOLT

29

01643-31032

WASHER

30

207-62-33690

CLIP

31

01010-81025

BOLT

32

01643-31032

WASHER

33

203-62-63420

JOINT

34

201-60-11390

O-RING

35

20Y-62-19560

O-RING

36

08210-02903

SPIRAL TUBE

37

08034-00834

BAND

38

01010-81025

BOLT

39

01643-31032

WASHER

40

09822-A1110

PLATE¤ OPERATING,JIS AND OLD KOMATSU PATTERN

|40

09822-A1120

PLATE¤ OPERATING,OLD MITSUBISHI AND OLD SINKOU

|40

20Y-00-11310

PLATE¤ OPERATING,OLD KOMATSU PATTERN

|40

203-916-5130

PLATE¤ OPERATING,OLD MITSUBISHI PATTERN

|40

203-916-5150

PLATE¤ OPERATING,OLD SINKOU PATTERN

41

20T-62-76261

PLATE¤ OPERATING,MULTIPLE PATTERN VALVE

42

09822-00010

PLATE¤ SAFETY,MULTIPLE PATTERN

43

09822-00020

CASE¤ PLATE
