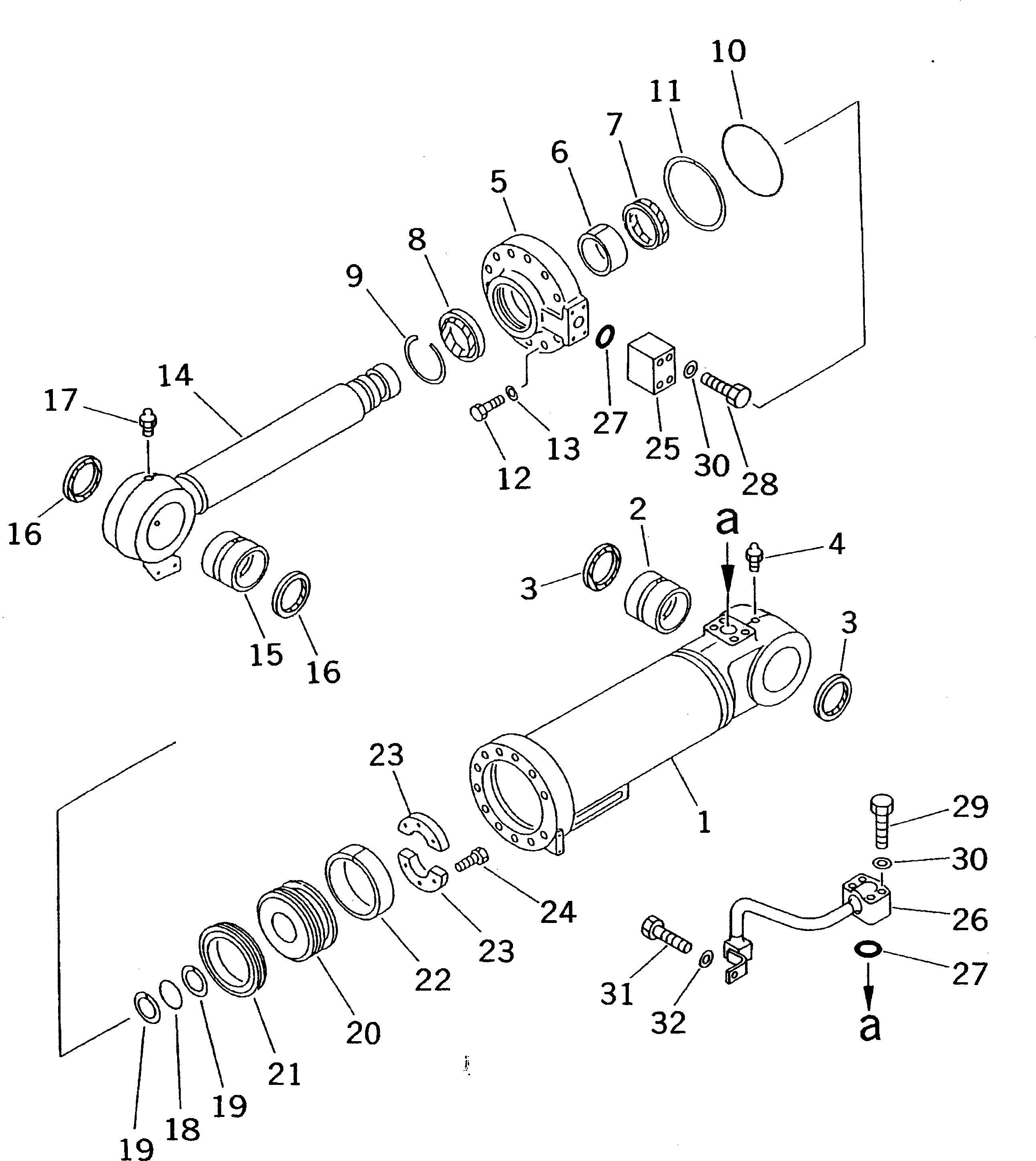

Запчасти Komatsu PC70-7-B -ЧАСТИS ЦИЛИНДР СТРЕЛЫ(2-Я СТРЕЛА) (ВНУТР. ЧАСТИ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G1

201-63-X2341

CYLINDER GROUP,(2 PIECES BOOM)

|1

201-63-02341

CYLINDER ASS'Y,SECOND BOOM

1

201-63-54841

CYLINDER,SECOND BOOM

2

707-76-95020

BUSHING

3

07145-00095

SEAL,DUST (KIT)

4

07020-00000

FITTING,GREASE

5

707-27-15340

HEAD,CYLINDER

6

707-52-10840

BUSHING

7

707-51-85211

PACKING,ROD (KIT)

8

707-56-85510

SEAL,DUST (KIT)

9

07179-13099

RING,SNAP

10

07000-12145

O-RING (KIT)

11

07146-02146

RING,BACK-UP (KIT)

12

01010-81660

BOLT

13

01643-51645

WASHER

14

201-63-54820

ROD,PISTON

15

707-76-80260

BUSHING

16

07145-00080

SEAL,DUST (KIT)

17

07020-00000

FITTING,GREASE

18

07000-12070

O-RING (KIT)

19

707-35-52910

RING,BACK-UP (KIT)

20

707-36-15310

PISTON

21

707-44-15180

RING,PISTON (KIT)

22

07156-01517

RING,WEAR (KIT)

23

707-40-18070

SPACER

24

01010-31240

BOLT

25

707-87-13220

ELBOW

26

201-63-54880

TUBE

27

07000-13035

O-RING (KIT)

28

01010-51065

BOLT

29

01010-51055

BOLT

30

01643-51032

WASHER

31

01010-51020

BOLT

32

01643-31032

WASHER

K

707-98-55500

SERVICE KIT,2ND BOOM CYLINDER
