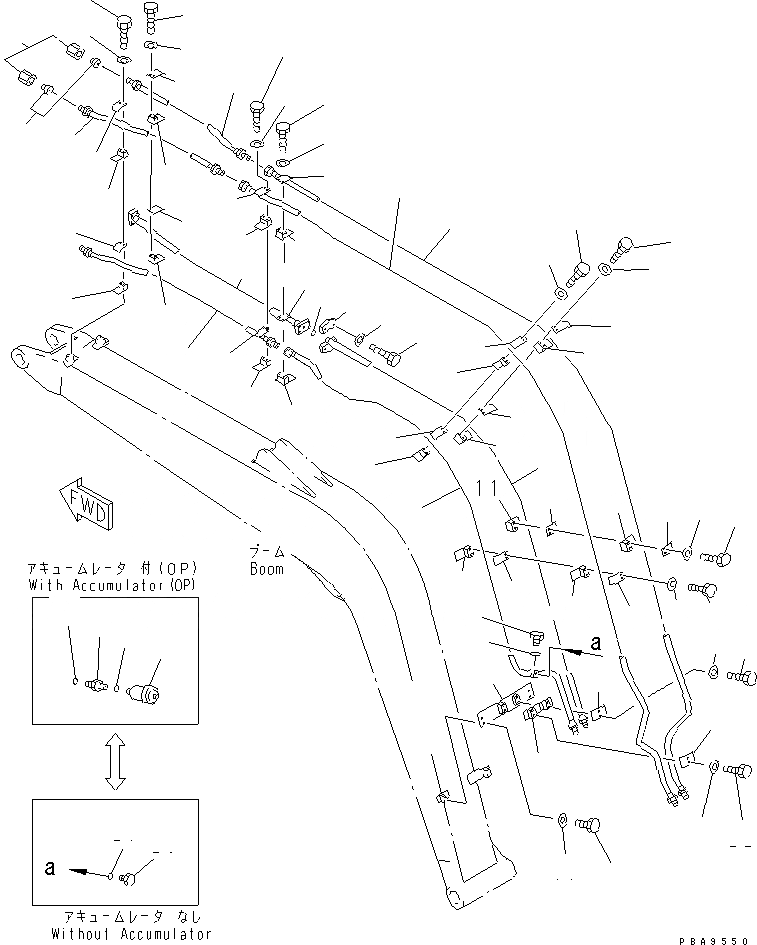

Запчасти Komatsu PC70-7-B СТРЕЛА (ДОПОЛН. ЛИНИЯ) (ДЛЯ -ACTUATER НАВЕСН. ОБОРУД)(№-7) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

201-973-7330

TUBE

2

201-973-7380

TUBE

3

201-973-7370

TUBE

4

201-973-7310

TUBE

5

07371-30640

FLANGE

6

07000-13025

O-RING

7

07372-21035

BOLT

8

01643-51032

WASHER

9

203-973-5690

SEAT

10

203-973-5660

CLAMP

11

201-973-6740

SEAT

12

201-973-6730

CLAMP

13

01011-81005

BOLT

14

01643-31032

WASHER

15

201-973-7411

SEAT

16

01010-81030

BOLT

17

01643-31032

WASHER

18

201-973-7441

SEAT

19

201-973-7430

CLAMP

20

01010-81060

BOLT

21

01643-31032

WASHER

22

01010-81055

BOLT

23

01643-31032

WASHER

24

07040-11007

PLUG

25

07002-11023

O-RING

26

07040-12012

PLUG

27

07002-12034

O-RING

28

201-973-7570

TUBE

29

201-973-7580

TUBE

30

201-973-7590

TUBE

31

201-973-7610

TUBE

32

203-973-5720

SEAT

33

203-973-5660

CLAMP

34

203-70-53380

CLAMP

35

07222-00414

PLUG

36

07221-20422

NUT

37

2988-01-3630

ACCUMULATOR,(WITH ACCUMULATOR) (OP)

38

20D-62-12210

NIPPLE,(WITH ACCUMULATOR) (OP)

39

07002-12034

O-RING,(WITH ACCUMULATOR) (OP)
