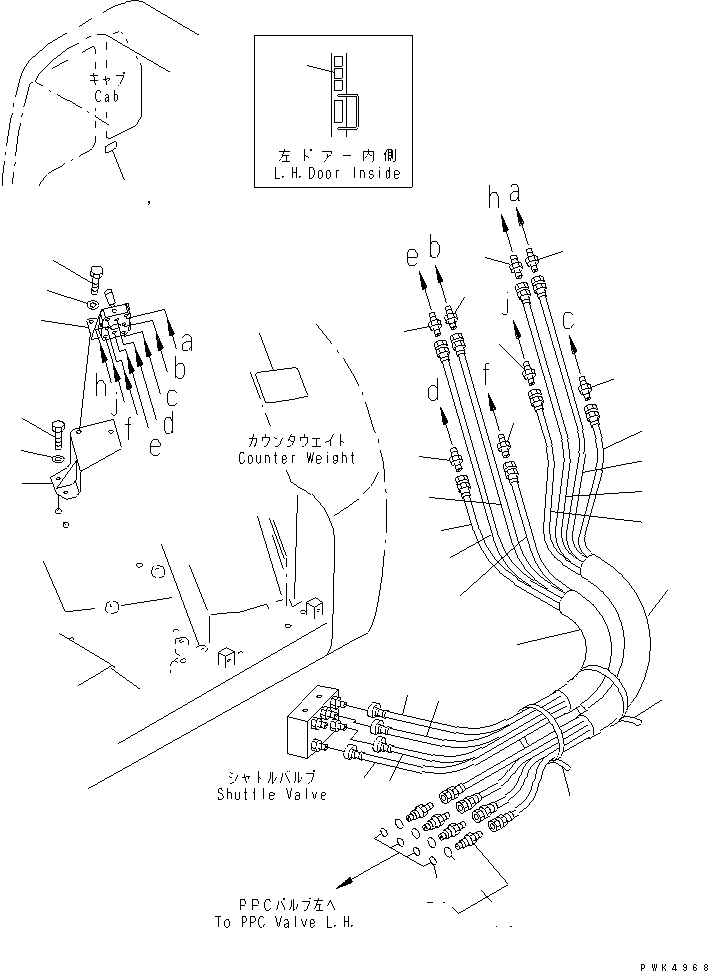

Запчасти Komatsu PC70-7-B MULTIPLE PATTERN WAY (ШЛАНГИ И ПЛАСТИНА)(№98-) ГИДРАВЛИКА

1

20T-62-74900

VALVE ASS'Y,MULTIPLE PATTERN

2

07238-10210

CONNECTOR

3

01010-80825

BOLT

4

01643-30823

WASHER

5

201-62-78460

BRACKET

6

01010-81025

BOLT

7

01643-31032

WASHER

8

203-62-62641

HOSE¤ 500MM,BROWN

9

203-62-62641

HOSE¤ 500MM,GREEN

10

203-62-62641

HOSE¤ 500MM,WHITE

11

203-62-62631

HOSE¤ 450MM,ORANGE

12

203-62-52320

HOSE¤ 300MM,ORANGE-YELLOW

13

203-62-52320

HOSE¤ 300MM,WHITE-YELLOW

14

203-62-52320

HOSE¤ 300MM,GREEN-YELLOW

15

203-62-52320

HOSE¤ 300MM,BROWN-YELLOW

16

08017-32801

CONDUIT

17

08017-32802

CONDUIT

18

08034-00823

BAND

19

203-62-63420

JOINT

20

201-60-11390

O-RING

21

20Y-62-19560

O-RING

22

08034-00823

BAND

23

20Y-00-12880

PLATE¤ OPERATING,MULTIPLE PATTERN VALVE

24

09822-A1110

PLATE¤ OPERATING,JIS AND OLD KOMATSU PATTERN

|24

20Y-00-11310

PLATE¤ OPERATING,OLD KOMATSU PATTERN

|24

203-916-5730

PLATE¤ OPERATING,JIS PATTERN

25

09822-00010

PLATE¤ SAFETY,MULTIPLE PATTERN

26

09822-00020

CASE¤ PLATE
